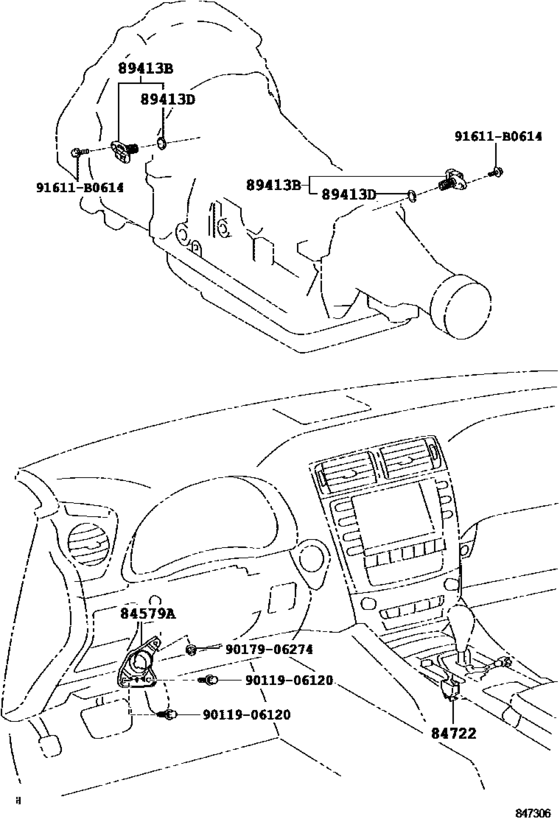

Overdrive & Electronic Controlled Transmission ([08.2005 - ] (0508- )GSE20) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- U.S.A.
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84579A
|
84579A
84579-30060
Bracket, Kick Down Switch
[08.2005 - 08.2008] GSE20,21 |
84579-30060 |
— | ||
|
84722
|
84722
84722-20240
Switch, Transmission Control
[08.2005 - 08.2008] GSE2#..ATM |
84722-20240 |
— | ||
|
89413B
|
89413B
89413-32010
SENSOR, TRANSMISSION REVOLUTION
[08.2005 - 08.2008] GSE2#..ATM |
89413-32010 |
— | ||
| replacement | |||||
|
89413B
|
89413B
89413-32011 SENSOR, TRANSMISSION REVOLUTION[08.2005 - 08.2008] GSE2#..ATM |
89413-32011 |
from US $75.94 |
||
|
89413D
|
89413D
90301-11008 Ring,o (For Speedometer Driven Hole Cover)[08.2005 - 08.2008] GSE2#..ATM |
90301-11008 |
from US $0.87 |
||
|
91611B0614
|
91611B0614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.78 |
||
|
9011906120
|
9011906120
90119-06120 BOLT |
90119-06120 |
US $1.25 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
