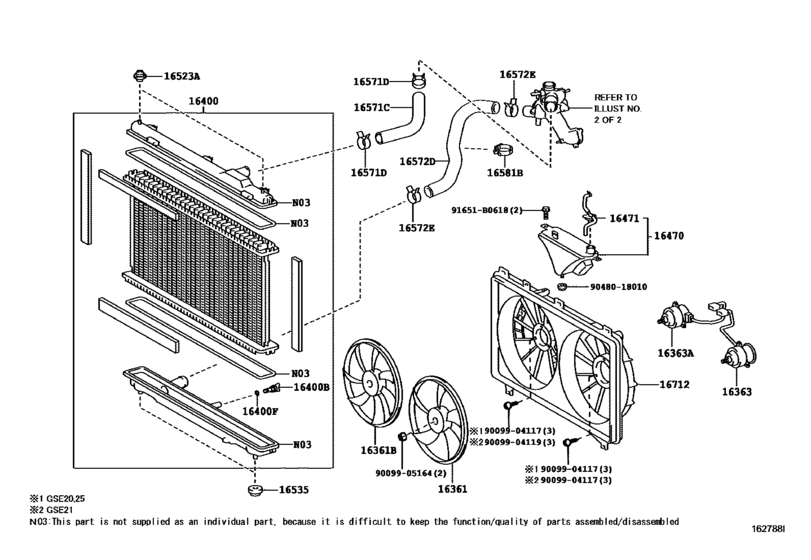

Radiator & Water Outlet ([08.2005 - ] (0508- )) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- U.S.A.
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16361
|
16361
16361-31090 Fan[08.2005 - 08.2008] 4GRFSE..GSE20,25 |
16361-31090 |
US $69.49 |
||
|
16361
|
16361
16361-31340 Fan[08.2008 - 08.2010] 4GRFSE..GSE20,25 |
16361-31340 |
US $71.40 |
||
|
16361B
|
16361B
16361-31100 Fan, No.2[08.2005 - 08.2008] 2GRFSE,4GRFSE..GSE2# |
16361-31100 |
US $93.77 |
||
|
16361B
|
16361B
16361-31350 Fan, No.2[08.2008 - 08.2010] 2GRFSE,4GRFSE..GSE2# |
16361-31350 |
US $95.12 |
||
|
16363
|
16363
16363-74340 Motor, Cooling Fan[08.2005 - 08.2008] 4GRFSE..GSE20,25 |
16363-74340 |
from US $202.46 |
||
|
16363A
|
16363A
16363-31040 Motor, Cooling Fan, No.2[08.2005 - 08.2008] 2GRFSE,4GRFSE..GSE2# |
16363-31040 |
from US $189.39 |
||
|
16400
|
16400
16400-31440 Radiator Assy[08.2005 - 08.2008] 2GRFSE,4GRFSE..GSE2# |
16400-31440 |
US $541.32 |
||
|
16400B
|
16400B
16417-21280 Cock Sub-Assy, Radiator Drain[08.2005 - 08.2008] 2GRFSE,4GRFSE..GSE2# |
16417-21280 |
from US $3.46 |
||
|
16400F
|
16400F
16492-21050 Ring, O(For Oil Cooler Drain Cock)[08.2005 - 08.2008] 2GRFSE,4GRFSE..GSE2# |
16492-21050 |
from US $2.13 |
||
|
16470
|
16470
16470-31080 Tank Assy, Radiator Reserve[08.2005 - 08.2008] 2GRFSE,4GRFSE..GSE2# |
16470-31080 |
from US $65.02 |
||
|
16471
|
16471
16405-31040 Cap Sub-Assy, Reserve Tank[08.2005 - 08.2008] 2GRFSE,4GRFSE..GSE2# |
16405-31040 |
from US $10.13 |
||
|
16523A
|
16523A
16523-31020 Cushion, Radiator Support[08.2005 - 08.2008] 2GRFSE,4GRFSE..GSE2# |
16523-31020 |
from US $16.38 |
||
|
16535
|
16535
90480-40021 Grommet(For Radiator Support)[08.2005 - 08.2008] 2GRFSE,4GRFSE..GSE2# |
90480-40021 |
from US $3.94 |
||
|
16571C
|
16571C
16571-31170 Hose, Radiator, No.1[08.2005 - 08.2008] 2GRFSE,4GRFSE..GSE2# |
16571-31170 |
from US $23.20 |
||
|
16571C
|
16571C
16571-31171 Hose, Radiator, No.1[11.2011 -] 2GRFSE,4GRFSE..GSE2# |
16571-31171 |
US $24.36 |
||
|
16571D
|
16571D
90466-39002 Clip, Hose(For Radiator Hose Sub-Assy)[11.2011 -] 2GRFSE,4GRFSE..GSE2# |
90466-39002 |
from US $3.80 |
||
|
16571D
|
16571D
96136-44801 Clamp Or Clip, Hose(For Radiator Inlet)HOSE(FOR RADIATOR INLET) [08.2009 - 08.2010] 2GRFSE,4GRFSE..GSE2# |
96136-44801 |
from US $5.91 |
||
|
16571D
|
16571D
96136-54801 Clamp Or Clip, Hose(For Radiator Inlet)[08.2005 - 08.2008] 2GRFSE,4GRFSE..GSE2# |
96136-54801 |
from US $5.38 |
||
|
16572D
|
16572D
16572-31250 Hose, Radiator, No.2[08.2005 - 08.2008] 2GRFSE,4GRFSE..GSE2# |
16572-31250 |
from US $34.92 |
||
|
16572D
|
16572D
16572-31251 Hose, Radiator, No.2[11.2011 -] 2GRFSE,4GRFSE..GSE2# |
16572-31251 |
US $32.70 |
||
|
16572E
|
16572E
90466-39002 Clip, Hose(For Radiator Hose Sub-Assy)[11.2011 -] 2GRFSE,4GRFSE..GSE2# |
90466-39002 |
from US $3.80 |
||
|
16572E
|
16572E
96136-44801 Clamp Or Clip, Hose(For Radiator Inlet)HOSE(FOR RADIATOR INLET) [08.2009 - 08.2010] 2GRFSE,4GRFSE..GSE2# |
96136-44801 |
from US $5.91 |
||
|
16572E
|
16572E
96136-54801 Clamp Or Clip, Hose(For Radiator Inlet)[08.2005 - 08.2008] 2GRFSE,4GRFSE..GSE2# |
96136-54801 |
from US $5.38 |
||
|
16581B
|
16581B
16581-26040 Clamp, Hose(For Water Hose)[05.2006 - 08.2008] 2GRFSE,4GRFSE..GSE2# |
16581-26040 |
from US $7.03 |
||
|
16581B
|
16581B
16581-28070 Clamp, Hose(For Water Hose)[06.2010 - 08.2010] GSE2# |
16581-28070 |
US $11.11 |
||
|
16581B
|
16581B
16581-31040 Clamp, Hose(For Water Hose)[11.2011 -] GSE2# |
16581-31040 |
US $10.39 |
||
|
16581B
|
16581B
16581-78100 Clamp, Hose(For Water Hose)[08.2005 - 04.2006] 2GRFSE,4GRFSE..GSE2# |
16581-78100 |
US $10.93 |
||
|
16712
|
16712
16711-31320 Shroud, Fan, No.2[08.2005 - 08.2008] 4GRFSE..GSE20,25 |
16711-31320 |
US $119.39 |
||
|
16712
|
16712
16711-31321 Shroud, Fan, No.2[08.2012 -] 4GRFSE..GSE20,25 |
16711-31321 |
US $99.01 |
||
|
91651B0618
|
91651B0618
91651-B0618 BOLT WWASHER |
91651-B0618 |
from US $1.79 |
||
|
9009904117
|
9009904117
90099-04117 Bolt, Radiator Side Support Plate |
90099-04117 |
from US $0.61 |
||
|
9009904119
|
9009904119
90099-04119 BOLT WASHER HEAD |
90099-04119 |
from US $0.55 |
||
|
9009905164
|
9009905164
90099-05164 Nut |
90099-05164 |
from US $0.83 |
||
|
9048018010
|
9048018010
90480-18010 Grommet, Radiator Reserve Tank Hose |
90480-18010 |
from US $2.09 |
