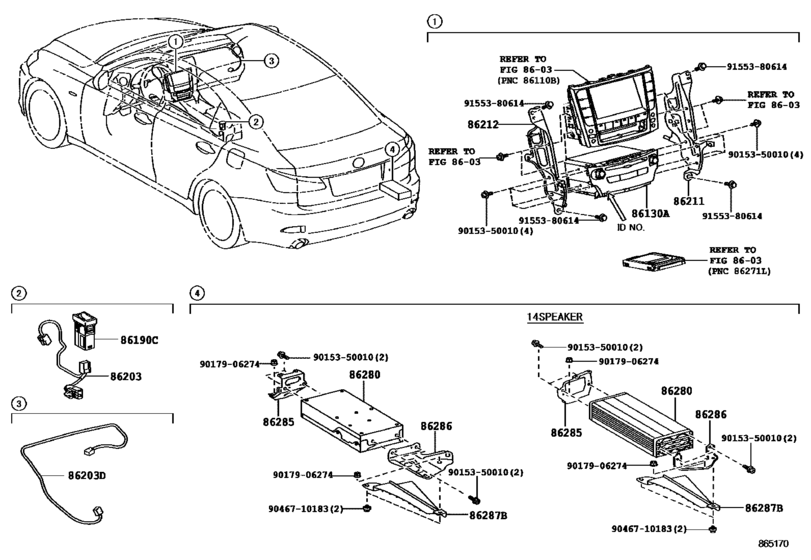

Radio Receiver & Amplifier & Condenser ([08.2012 - ] W(EMV) (1208- )) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- U.S.A.
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86130A
|
86130A
86804-53F60
Receiver Assy, Multi-Media Module
[08.2012 - 04.2013] GSE2# PIONEER,ID=P10361,AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
86804-53F60 |
— | ||
|
86130A
|
86130A
86804-53F70
Receiver Assy, Multi-Media Module
[08.2012 - 04.2013] GSE2# PIONEER,ID=P10362,AUDIO-AM/FM DVD 13SPEAKER |
86804-53F70 |
— | ||
|
86130A
|
86130A
86804-53F80
Receiver Assy, Multi-Media Module
[08.2012 - 04.2013] GSE2# PIONEER,ID=P10363,CANADA SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
86804-53F80 |
— | ||
|
86130A
|
86130A
86804-53F90
Receiver Assy, Multi-Media Module
[08.2012 - 04.2013] GSE2# PIONEER,ID=P10364,CANADA SPEC&AUDIO-AM/FM DVD 13SPEAKER |
86804-53F90 |
— | ||
|
86130A
|
86130A
86804-53G60
Receiver Assy, Multi-Media Module
[08.2012 - 04.2013] GSE20 PIONEER,ID=P10383,KOREA SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
86804-53G60 |
— | ||
|
86130A
|
86130A
86804-53G70
Receiver Assy, Multi-Media Module
[08.2012 - 04.2013] GSE20 PIONEER,ID=P10384,KOREA SPEC&AUDIO-AM/FM DVD 13SPEAKER |
86804-53G70 |
— | ||
|
86190C
|
86190C
86190-53020 Adapter Assy, Stereo Jack, No.1[08.2005 - 08.2008] GSE2# |
86190-53020 |
US $171.81 |
||
|
86190C
|
86190C
86190-53030 Adapter Assy, Stereo Jack, No.1[08.2008 - 07.2009] GSE2# |
86190-53030 |
US $142.69 |
||
|
86190C
|
86190C
86190-53040 Adapter Assy, Stereo Jack, No.1STEREO JACK, NO.1 [08.2009 - 08.2010] GSE2# |
86190-53040 |
US $113.57 |
||
|
86203
|
86203
86203-53010 Wire, RadioRADIO [08.2009 - 08.2010] GSE2# |
86203-53010 |
US $13.40 |
||
|
86203D
|
86203D
86203-53020
Wire, Stereo Component, No.1
[08.2009 - 08.2010] GSE2#..ATM |
86203-53020 |
— | ||
|
86203D
|
86203D
86203-53210
Wire, Stereo Component, No.1
[08.2012 - 04.2013] GSE2# AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE2# AUDIO-AM/FM DVD 13SPEAKER |
86203-53210 |
— | ||
|
86211
|
86211
86211-53020 Bracket, Radio, No.1[08.2005 - 08.2008] GSE2# |
86211-53020 |
US $12.67 |
||
| replacement | |||||
|
86211
|
86211
86211-53030 Bracket, Radio, No.1[08.2005 - 08.2008] GSE2# |
86211-53030 |
US $8.74 |
||
|
86211
|
86211
86211-53030 Bracket, Radio, No.1[08.2008 - 08.2010] GSE2# |
86211-53030 |
US $8.74 |
||
|
86211
|
86211
86211-53070 Bracket, Radio, No.1[08.2012 - 04.2013] GSE2# AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE2# AUDIO-AM/FM DVD 13SPEAKER |
86211-53070 |
US $8.74 |
||
|
86212
|
86212
86212-53020 Bracket, Radio, No.2[08.2005 - 08.2008] GSE2# |
86212-53020 |
US $12.67 |
||
| replacement | |||||
|
86212
|
86212
86212-53030 Bracket, Radio, No.2[08.2005 - 08.2008] GSE2# |
86212-53030 |
US $9.32 |
||
|
86212
|
86212
86212-53030 Bracket, Radio, No.2[08.2008 - 08.2010] GSE2# |
86212-53030 |
US $9.32 |
||
|
86212
|
86212
86212-53070 Bracket, Radio, No.2[08.2012 - 04.2013] GSE2# AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE2# AUDIO-AM/FM DVD 13SPEAKER |
86212-53070 |
US $8.74 |
||
|
86280
|
86280
86280-0W360 Amplifier Assy, Stereo Component[08.2005 - 08.2008] GSE2# AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER; GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
86280-0W360 |
US $2,572.32 |
||
|
86280
|
86280
86280-0W740 Amplifier Assy, Stereo Component[08.2012 -] GSE2# AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
86280-0W740 |
US $2,125.76 |
||
|
86280
|
86280
86280-0W790 Amplifier Assy, Stereo ComponentSTEREO COMPONENT [08.2009 - 08.2010] GSE2#..ATM AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
86280-0W790 |
US $1,683.89 |
||
|
86280
|
86280
86280-53110 Amplifier Assy, Stereo Component[08.2005 - 08.2008] GSE2# |
86280-53110 |
US $1,616.16 |
||
|
86280
|
86280
86280-53140
Amplifier Assy, Stereo Component
[08.2009 - 08.2010] GSE2# |
86280-53140 |
— | ||
|
86280
|
86280
86280-53150
Amplifier Assy, Stereo Component
[08.2009 - 08.2010] GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
86280-53150 |
— | ||
| replacement | |||||
|
86280
|
86280
86280-53151 Amplifier Assy, Stereo Component[08.2009 - 08.2010] GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
86280-53151 |
US $2,111.20 |
||
|
86280
|
86280
86280-53160 Amplifier Assy, Stereo Component[08.2010 -] GSE2# AUDIO-AM/FM CD-CHANGER 8SPEAKER(PIONEER) |
86280-53160 |
US $1,616.16 |
||
|
86280
|
86280
86280-53210 Amplifier Assy, Stereo Component[08.2012 -] GSE2# AUDIO-AM/FM DVD 13SPEAKER |
86280-53210 |
US $1,336.61 |
||
|
86285
|
86285
86285-53040 Bracket, Amplifier, No.1[08.2005 - 08.2008] GSE2# |
86285-53040 |
US $14.71 |
||
|
86285
|
86285
86285-53050 Bracket, Amplifier, No.1[08.2005 - 08.2008] GSE2# AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER; GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
86285-53050 |
US $13.98 |
||
|
86285
|
86285
86285-53060 Bracket, Amplifier, No.1AMPLIFIER, NO.1 [08.2009 - 08.2010] GSE2# |
86285-53060 |
US $10.05 |
||
|
86285
|
86285
86285-53070 Bracket, Amplifier, No.1AMPLIFIER, NO.1 [08.2009 - 08.2010] GSE2#..ATM AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
86285-53070 |
US $9.32 |
||
|
86286
|
86286
86286-53040 Bracket, Amplifier, No.2[08.2005 - 08.2008] GSE2# |
86286-53040 |
US $13.83 |
||
|
86286
|
86286
86286-53050 Bracket, Amplifier, No.2[08.2005 - 08.2008] GSE2# AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER; GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
86286-53050 |
US $14.56 |
||
|
86286
|
86286
86286-53080 Bracket, Amplifier, No.2AMPLIFIER, NO.2 [08.2009 - 08.2010] GSE2#..ATM AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
86286-53080 |
US $10.48 |
||
|
86286
|
86286
86286-53090 Bracket, Amplifier, No.2AMPLIFIER, NO.2 [08.2009 - 08.2010] GSE2# |
86286-53090 |
US $11.94 |
||
|
86287B
|
86287B
86287-53010 Cover, Amplifier[08.2005 - 08.2008] GSE2# |
86287-53010 |
US $18.05 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.68 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9046710183
|
9046710183
90467-10183 Clip(For Luggage Compartment Trim Inner Cover) |
90467-10183 |
from US $0.82 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $1.08 |
||
