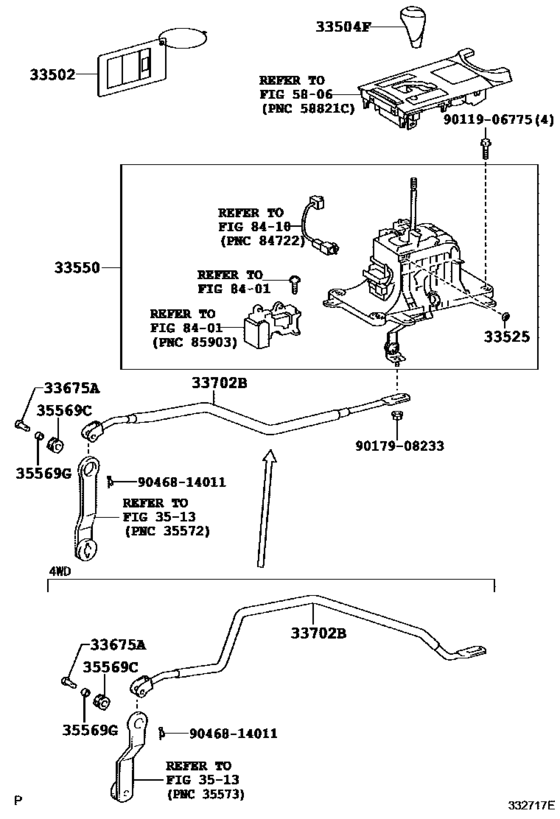

Shift Lever & Retainer ([08.2005 - ] (0508- )ATM) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- U.S.A.
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33502
|
33502
33502-53040 Plate Sub-Assy, Shift LeverSHIFT LEVER [08.2005 - 08.2008] GSE2#..ATM; GSE20..ATM TAIWAN SPEC&CANADA SPEC |
33502-53040 |
US $4.43 |
||
|
33504F
|
33504F
33504-30341-C2 Knob Sub-Assy, Shift Lever[08.2005 - 08.2008] GSE2#..ATM BLACK,TRIM0#,1#,2# |
33504-30341-C2 |
from US $101.68 |
||
|
33504F
|
33504F
33504-53100-C0 Knob Sub-Assy, Shift Lever[08.2009 - 08.2010] GSE20,21..ATM VERSION F,BLACK,TRIM2# |
33504-53100-C0 |
US $101.68 |
||
|
33525
|
33525
33525-50020 Support, Shift Lever[08.2005 - 08.2008] GSE2#..ATM |
33525-50020 |
US $3.06 |
||
|
33550
|
33550
33550-53200
Floor Shift Assy, Transmission
[08.2005 - 08.2008] GSE20,21..ATM |
33550-53200 |
— | ||
|
33675A
|
33675A
33726-35010 Pin, W/hole (For Transmission Control Rod)[08.2005 - 08.2008] GSE2#..ATM |
33726-35010 |
US $3.40 |
||
|
33702B
|
33702B
33702-22140 Rod Sub-Assy, Gear Shifting, No.1 (For Floor Shift)[08.2005 - 08.2008] GSE20..ATM |
33702-22140 |
US $14.27 |
||
|
35569C
|
35569C
90480-17013 Grommet[08.2005 - 08.2008] GSE2#..ATM |
90480-17013 |
from US $3.21 |
||
|
35569G
|
35569G
90560-08091 Bush (For Floor Shift Control Shaft)[08.2005 - 08.2008] GSE2#..ATM |
90560-08091 |
US $1.25 |
||
|
9011906775
|
9011906775
90119-06775 BOLT WWASHER |
90119-06775 |
from US $1.05 |
||
|
9017908233
|
9017908233
90179-08233 NUT |
90179-08233 |
from US $1.27 |
||
|
9046814011
|
9046814011
90468-14011 Clip, No.2(For Parking Brake) |
90468-14011 |
US $1.08 |
