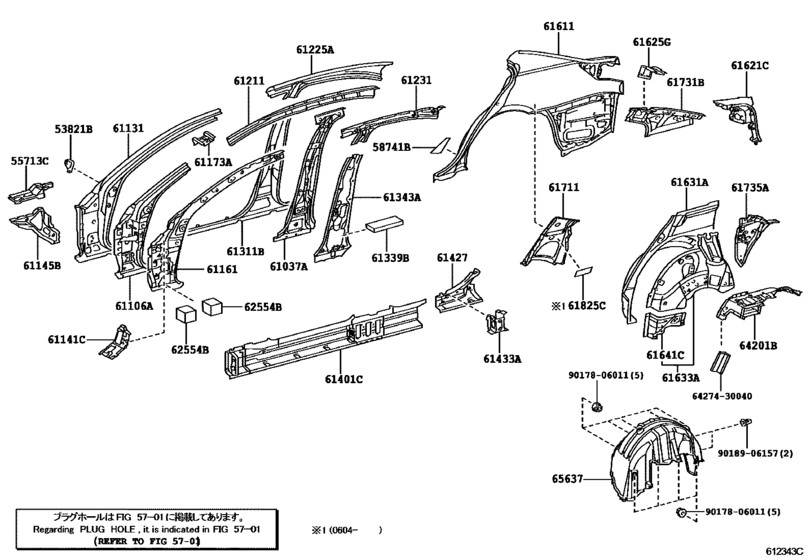

Side Member ([08.2005 - ] RH (0508- )) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- U.S.A.
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53821B
|
53821B
53821-53020 Bracket, Front Fender, Rear Rh[08.2005 - 08.2008] GSE2# |
53821-53020 |
US $4.08 |
||
|
55713C
|
55713C
55713-53020 Panel, Cowl Top Side, Rh[08.2005 - 08.2008] GSE2# |
55713-53020 |
US $19.66 |
||
|
58741B
|
58741B
58741-53020 Protector, Quarter Panel, Rh[08.2005 - 08.2008] GSE2# |
58741-53020 |
from US $10.79 |
||
|
61037A
|
61037A
61037-53040 Reinforcement Sub-Assy, Center Body Pillar, Rh[08.2005 - 08.2008] GSE2# |
61037-53040 |
US $199.47 |
||
|
61106A
|
61106A
61106-53901 Reinforce Sub-Assy, Front Body Pillar, Upper Rh[08.2005 - 08.2008] GSE2# |
61106-53901 |
US $203.84 |
||
|
61131
|
61131
61131-53050 Pillar, Front Body, Upper Outer Rh[08.2005 - 08.2008] GSE2# |
61131-53050 |
US $269.36 |
||
|
61141C
|
61141C
61141-53020 Extension, Front Pillar, Upper Inner Rh[08.2005 - 08.2008] GSE2# |
61141-53020 |
US $18.05 |
||
|
61145B
|
61145B
61145-53020 Gusset, Front Body Pillar, Lower Rh[08.2005 - 08.2008] GSE2# |
61145-53020 |
from US $36.40 |
||
|
61161
|
61161
61161-53030 Pillar, Front Body, Upper Inner Rh[08.2005 - 08.2008] GSE2# |
61161-53030 |
US $248.98 |
||
|
61173A
|
61173A
61173-53020 Reinforcement, Front Body Pillar, Upper Inner Rh[08.2005 - 08.2008] GSE2# |
61173-53020 |
US $22.28 |
||
| replacement | |||||
|
61173A
|
61173A
61173-53021 Reinforcement, Front Body Pillar, Upper Inner RhFRONT BODY PILLAR, UPPER INNER RH [08.2005 - 08.2008] GSE2# |
61173-53021 |
US $18.49 |
||
|
61173A
|
61173A
61173-53021 Reinforcement, Front Body Pillar, Upper Inner RhFRONT BODY PILLAR, UPPER INNER RH [03.2009 - 08.2010] GSE2# |
61173-53021 |
US $18.49 |
||
|
61211
|
61211
61071-53901 Rail, Roof Side, Outer Rh[08.2005 - 08.2008] GSE2# |
61071-53901 |
US $171.81 |
||
|
61225A
|
61225A
61225-53010 Rail, Roof Side Outer Upper No.1, Rh[08.2005 - 08.2008] GSE2# |
61225-53010 |
from US $109.20 |
||
|
61231
|
61231
61231-53080 Rail, Roof Side, Inner Rh[08.2005 - 08.2008] GSE2# |
61231-53080 |
US $90.27 |
||
|
61311B
|
61311B
61311-53030 Pillar, Center Body, Outer Rh[08.2005 - 08.2008] GSE2# |
61311-53030 |
US $234.42 |
||
|
61339B
|
61339B
61339-30010 Seal, Center Body Pillar, Inner No.1[08.2005 - 08.2008] GSE2# |
61339-30010 |
US $2.62 |
||
|
61343A
|
61343A
61343-53020 Pillar, Center Body, Inner Rh[08.2005 - 08.2008] GSE2# |
61343-53020 |
US $214.03 |
||
|
61401C
|
61401C
61401-53020 Panel Sub-Assy, Rocker, Outer Rh[08.2005 - 08.2008] GSE2# |
61401-53020 |
US $279.55 |
||
|
61427
|
61427
61427-53020 Reinforcement, Rocker Panel, No.5 Rh[08.2005 - 08.2008] GSE2# |
61427-53020 |
from US $66.98 |
||
|
61433A
|
61433A
61433-30020 Reinforcement, Rocker Panel, Outer Rh[08.2005 - 08.2008] GSE2# |
61433-30020 |
US $15.58 |
||
|
61611
|
61611
61611-53040 Panel, Quarter, RhQUARTER, RH [08.2005 - 08.2008] GSE2# |
61611-53040 |
from US $663.08 |
||
|
61621C
|
61621C
61063-53010 Trough, Luggage Compartment Opening, Rh[08.2005 - 08.2008] GSE2# |
61063-53010 |
from US $41.93 |
||
|
61625G
|
61625G
61625-53020 Extension, Quarter Panel, Rear Rh[08.2005 - 08.2008] GSE2# |
61625-53020 |
US $21.11 |
||
|
61631A
|
61631A
61631-53030 Panel, Quarter Wheel House, Outer Rh[08.2005 - 08.2008] GSE2# |
61631-53030 |
US $152.88 |
||
|
61633A
|
61633A
61607-30270 Panel, Quarter Wheel House, Inner Rh[08.2005 - 08.2008] GSE2# |
61607-30270 |
from US $256.26 |
||
|
61641C
|
61641C
61641-30050 Gusset, Quarter Wheel House, Front Rh[08.2005 - 08.2008] GSE2# |
61641-30050 |
US $23.15 |
||
|
61711
|
61711
61711-53030 Panel, Roof Side, Outer Rh[08.2005 - 08.2008] GSE2# |
61711-53030 |
US $65.37 |
||
|
61731B
|
61731B
61731-53040 Panel, Roof Side, Inner Rh[08.2005 - 08.2008] GSE2# |
61731-53040 |
US $82.99 |
||
|
61735A
|
61735A
61735-53030 Panel, Roof Side, Inner Rear Rh[08.2005 - 08.2008] GSE2# |
61735-53030 |
US $65.37 |
||
|
61825C
|
61825C
61825-53020 Pad, Noise Shutter, No.2[04.2006 - 08.2008] GSE2# |
61825-53020 |
US $13.54 |
||
|
62554B
|
62554B
62554-30010 Pad, Pillar, No.4[08.2005 - 08.2008] GSE2# |
62554-30010 |
US $3.58 |
||
|
64201B
|
64201B
64201-53020 Strainer Sub-Assy, Package Tray To Floor, Rh[08.2005 - 08.2008] GSE2# |
64201-53020 |
US $70.47 |
||
|
65637
|
65637
65637-53010 Liner, Rear Wheel House, Rh[08.2005 - 08.2008] GSE2# |
65637-53010 |
from US $90.19 |
||
|
6427430040
|
6427430040
64274-30040
Pad, Room Partition, No.2
|
64274-30040 |
— | ||
|
9017806011
|
9017806011
90178-06011 NUT FLANGE |
90178-06011 |
from US $0.72 |
||
|
9018906157
|
9018906157
90189-06157 GROMMET SCREW |
90189-06157 |
from US $0.76 |
||
