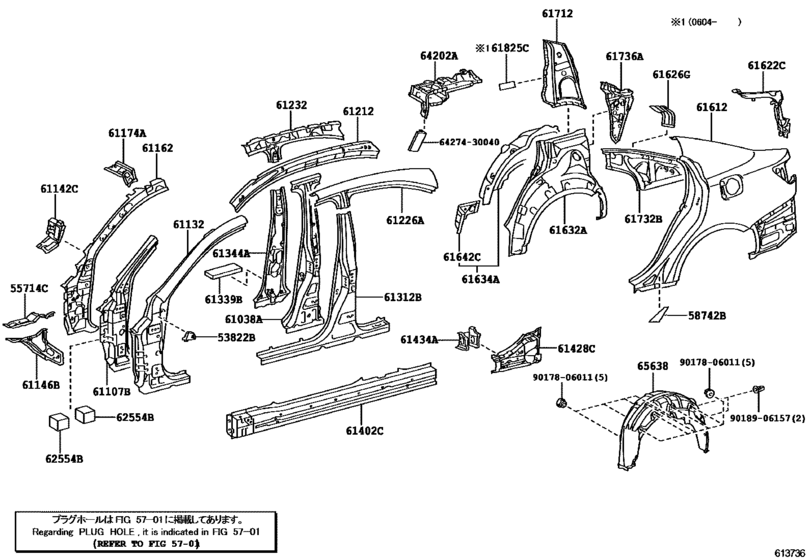

Side Member ([08.2005 - ] LH (0508- )) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- U.S.A.
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53822B
|
53822B
53822-53010 Bracket, Front Fender, Rear Lh[08.2005 - 08.2008] GSE2# |
53822-53010 |
US $4.08 |
||
|
55714C
|
55714C
55714-53020 Panel, Cowl Top Side, Lh[08.2005 - 08.2008] GSE2# |
55714-53020 |
US $19.66 |
||
|
58742B
|
58742B
58742-53020 Protector, Quarter Panel, Lh[08.2005 - 08.2008] GSE2# |
58742-53020 |
from US $11.99 |
||
|
61038A
|
61038A
61038-53040 Reinforcement Sub-Assy, Center Body Pillar, Lh[08.2005 - 08.2008] GSE2# |
61038-53040 |
US $199.47 |
||
|
61107B
|
61107B
61107-53901 Reinforce Sub-Assy, Front Body Pillar, Upper Lh[08.2005 - 08.2008] GSE2# |
61107-53901 |
from US $152.88 |
||
|
61132
|
61132
61132-53050 Pillar, Front Body, Upper Outer Lh[08.2005 - 08.2008] GSE2# |
61132-53050 |
from US $218.25 |
||
|
61142C
|
61142C
61142-53020 Extension, Front Pillar, Upper Inner Lh[08.2005 - 08.2008] GSE2# |
61142-53020 |
US $18.49 |
||
|
61146B
|
61146B
61146-53020 Gusset, Front Body Pillar, Lower Lh[08.2005 - 08.2008] GSE2# |
61146-53020 |
US $36.40 |
||
|
61162
|
61162
61162-53030 Pillar, Front Body, Upper Inner Lh[08.2005 - 08.2008] GSE2# |
61162-53030 |
US $248.98 |
||
|
61174A
|
61174A
61174-53020 Reinforcement, Front Body Pillar, Upper Inner Lh[08.2005 - 08.2008] GSE2# |
61174-53020 |
US $22.28 |
||
| replacement | |||||
|
61174A
|
61174A
61174-53021 Reinforcement, Front Body Pillar, Upper Inner LhFRONT BODY PILLAR, UPPER INNER LH [08.2005 - 08.2008] GSE2# |
61174-53021 |
US $18.49 |
||
|
61174A
|
61174A
61174-53021 Reinforcement, Front Body Pillar, Upper Inner LhFRONT BODY PILLAR, UPPER INNER LH [03.2009 - 08.2010] GSE2# |
61174-53021 |
US $18.49 |
||
|
61212
|
61212
61072-53901 Rail, Roof Side, Outer Lh[08.2005 - 08.2008] GSE2# |
61072-53901 |
US $171.81 |
||
|
61226A
|
61226A
61226-53010 Rail, Roof Side Outer Upper No.1, Lh[08.2005 - 08.2008] GSE2# |
61226-53010 |
US $109.20 |
||
|
61232
|
61232
61232-53060 Rail, Roof Side, Inner Lh[08.2005 - 08.2008] GSE2# |
61232-53060 |
US $90.27 |
||
|
61312B
|
61312B
61312-53030 Pillar, Center Body, Outer Lh[08.2005 - 08.2008] GSE2# |
61312-53030 |
US $234.42 |
||
|
61339B
|
61339B
61339-30010 Seal, Center Body Pillar, Inner No.1[08.2005 - 08.2008] GSE2# |
61339-30010 |
US $2.62 |
||
|
61344A
|
61344A
61344-53020 Pillar, Center Body, Inner Lh[08.2005 - 08.2008] GSE2# |
61344-53020 |
US $214.03 |
||
|
61402C
|
61402C
61402-53020 Panel Sub-Assy, Rocker, Outer Lh[08.2005 - 08.2008] GSE2# |
61402-53020 |
from US $181.89 |
||
|
61428C
|
61428C
61428-53020 Reinforcement, Rocker Panel, No.5 Lh[08.2005 - 08.2008] GSE2# |
61428-53020 |
US $66.98 |
||
|
61434A
|
61434A
61434-30020 Reinforcement, Rocker Panel, Outer Lh[08.2005 - 08.2008] GSE2# |
61434-30020 |
US $15 |
||
|
61612
|
61612
61612-53030
Panel, Quarter, Lh
[08.2005 - 08.2008] GSE2# |
61612-53030 |
— | ||
| replacement | |||||
|
61612
|
61612
61612-53031 Panel, Quarter, Lh[08.2005 - 08.2008] GSE2# |
61612-53031 |
US $663.08 |
||
|
61612
|
61612
61612-53031 Panel, Quarter, Lh[08.2008 - 08.2010] GSE2# |
61612-53031 |
US $663.08 |
||
|
61622C
|
61622C
61064-53010 Trough, Luggage Compartment Opening, Lh[08.2005 - 08.2008] GSE2# |
61064-53010 |
US $41.93 |
||
|
61626G
|
61626G
61626-53020 Extension, Quarter Panel, Rear Lh[08.2005 - 08.2008] GSE2# |
61626-53020 |
US $21.11 |
||
|
61632A
|
61632A
61632-53030 Panel, Quarter Wheel House, Outer Lh[08.2005 - 08.2008] GSE2# |
61632-53030 |
US $152.88 |
||
|
61634A
|
61634A
61608-30250 Panel, Quarter Wheel House, Inner Lh[08.2005 - 08.2008] GSE2# |
61608-30250 |
US $301.39 |
||
|
61642C
|
61642C
61642-30050 Gusset, Quarter Wheel House, Front Lh[08.2005 - 08.2008] GSE2# |
61642-30050 |
US $23.15 |
||
|
61712
|
61712
61712-53030 Panel, Roof Side, Outer Lh[08.2005 - 08.2008] GSE2# |
61712-53030 |
US $65.37 |
||
|
61732B
|
61732B
61732-53030 Panel, Roof Side, Inner Lh[08.2005 - 08.2008] GSE2# |
61732-53030 |
US $82.99 |
||
|
61736A
|
61736A
61736-53030 Panel, Roof Side, Inner Rear Lh[08.2005 - 08.2008] GSE2# |
61736-53030 |
US $65.37 |
||
|
61825C
|
61825C
61825-53020 Pad, Noise Shutter, No.2[04.2006 - 08.2008] GSE2# |
61825-53020 |
US $13.54 |
||
|
62554B
|
62554B
62554-30010 Pad, Pillar, No.4[08.2005 - 08.2008] GSE2# |
62554-30010 |
US $3.58 |
||
|
64202A
|
64202A
64202-53020 Strainer Sub-Assy, Package Tray To Floor, Lh[08.2005 - 08.2008] GSE2# |
64202-53020 |
US $70.76 |
||
|
65638
|
65638
65638-53010 Liner, Rear Wheel House, Lh[08.2005 - 08.2008] GSE2# |
65638-53010 |
from US $83.16 |
||
|
6427430040
|
6427430040
64274-30040
Pad, Room Partition, No.2
|
64274-30040 |
— | ||
|
9017806011
|
9017806011
90178-06011 NUT FLANGE |
90178-06011 |
from US $0.72 |
||
|
9018906157
|
9018906157
90189-06157 GROMMET SCREW |
90189-06157 |
from US $0.76 |
||
