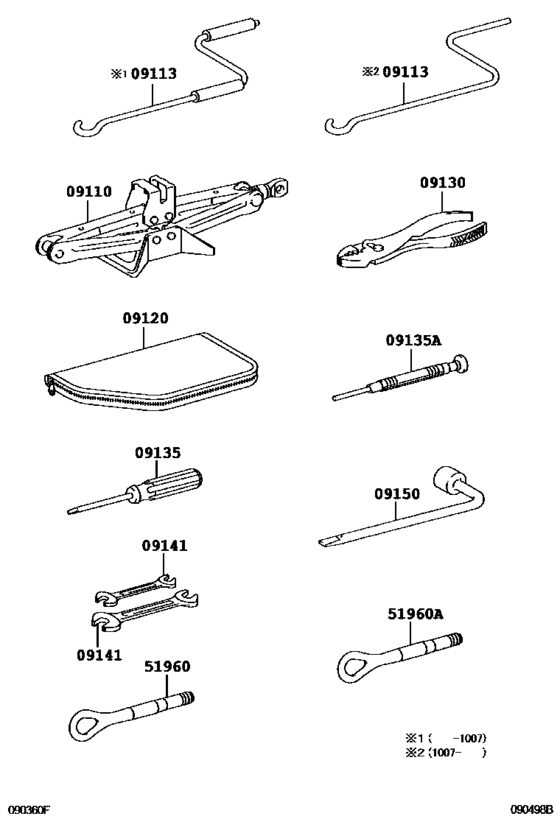

Standard Tool ([08.2005 - ] (0508- )) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- U.S.A.
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
09110
|
09110
09111-33030
Jack Assy
[10.2010 -] GSE2# |
09111-33030 |
— | ||
| replacement | |||||
|
09110
|
09110
09111-76010 Jack Assy[10.2010 -] GSE2# |
09111-76010 |
US $85.90 |
||
|
09110
|
09110
09111-50051 Jack Assy[08.2005 - 08.2008] GSE2# |
09111-50051 |
US $77.88 |
||
| replacement | |||||
|
09110
|
09110
09111-76011 JACK ASSY[08.2005 - 08.2008] GSE2# |
09111-76011 |
US $96.76 |
||
|
09113
|
09113
09113-13040 Handle, Jack[07.2010 - 08.2010] GSE2# |
09113-13040 |
US $9.68 |
||
|
09113
|
09113
09113-22020 Handle, Jack[08.2005 - 08.2008] GSE2# |
09113-22020 |
US $11.36 |
||
|
09120
|
09120
09120-53010 Bag, Tool[08.2005 - 08.2008] GSE2# |
09120-53010 |
US $77.17 |
||
|
09120
|
09120
09120-53020
Bag, Tool
[08.2005 - 08.2008] GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER; GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
09120-53020 |
— | ||
|
09130
|
09130
09130-50030 Pliers[08.2005 - 08.2008] GSE2# |
09130-50030 |
US $8.12 |
||
|
09130
|
09130
09130-50040 Pliers[08.2009 - 08.2010] GSE2# |
09130-50040 |
US $10.57 |
||
|
09135
|
09135
09135-50040 Driver, Screw[08.2005 - 08.2008] GSE2# |
09135-50040 |
US $10.57 |
||
|
09135
|
09135
99915-10700 Driver, ScrewNo Toyota stamp [08.2009 - 08.2010] GSE2# |
99915-10700 |
from US $8.24 |
||
| replacement | |||||
|
09135
|
09135
90089-99009 Driver, Screw (ATC) (Thailand)Screw Driver (ATC) [08.2009 - 08.2010] GSE2# |
90089-99009 |
from US $2.20 |
||
|
09135A
|
09135A
09135-53010
Bit, Screw Driver
[08.2005 - 08.2008] GSE2# EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATION) |
09135-53010 |
— | ||
|
09141
|
09141
09141-50050 Spanner[08.2005 - 08.2008] GSE2# 8 X 10 |
09141-50050 |
US $6.27 |
||
|
09141
|
09141
09141-50060 Spanner[08.2005 - 08.2008] GSE2# 12 X 14 |
09141-50060 |
US $7.98 |
||
|
09141
|
09141
09141-60010 Spanner[08.2009 - 08.2010] GSE2# 8 X 10 |
09141-60010 |
from US $4.54 |
||
|
09141
|
09141
09141-60020 Spanner[08.2009 - 08.2010] GSE2# 12 X 14 |
09141-60020 |
from US $7.69 |
||
|
09150
|
09150
09150-50010
Wrench, Hub Nut Box
[08.2005 - 08.2008] GSE2# |
09150-50010 |
— | ||
| replacement | |||||
|
09150
|
09150
09150-76020 Wrench, Hub Nut Box[08.2005 - 08.2008] GSE2# |
09150-76020 |
US $9.26 |
||
|
09150
|
09150
09150-53010 Wrench, Hub Nut BoxHUB NUT BOX [08.2009 - 08.2010] GSE2# |
09150-53010 |
US $10.34 |
||
| replacement | |||||
|
09150
|
09150
09150-76020 Wrench, Hub Nut Box[08.2009 - 08.2010] GSE2# |
09150-76020 |
US $9.26 |
||
|
09150
|
09150
09150-76020 Wrench, Hub Nut Box[06.2012 - 04.2013] GSE2# |
09150-76020 |
US $9.26 |
||
|
51960
|
51960
51961-30020 Hook Assy, Front[08.2005 - 11.2007] GSE2# |
51961-30020 |
from US $13.47 |
||
|
51960
|
51960
51961-53010 Hook Assy, Front[12.2007 - 08.2008] GSE2# |
51961-53010 |
from US $36.12 |
||
|
51960A
|
51960A
51961-30020 Hook Assy, Front[08.2005 - 11.2007] GSE2# |
51961-30020 |
from US $13.47 |
||
|
51960A
|
51960A
51961-53010 Hook Assy, Front[12.2007 - 08.2008] GSE2# |
51961-53010 |
from US $36.12 |
||
