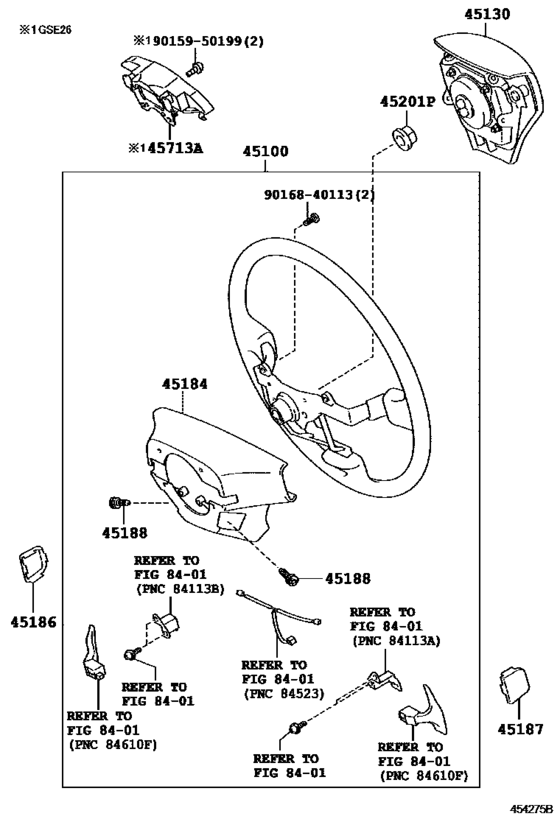

Steering Wheel ([08.2005 - ] 3-SPOKE (0508- )ATM) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- U.S.A.
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45100
|
45100
45100-53180-C0 Wheel Assy, Steering[08.2005 - 08.2008] GSE2#..ATM 3-SPOKE,LEATHER,BLACK,TRIM0#,1#,2# |
45100-53180-C0 |
US $1,013.59 |
||
|
45100
|
45100
45100-53300-C0 Wheel Assy, SteeringSTEERING [08.2009 - 08.2010] GSE20,21..ATM 3-SPOKE,LEATHER,VERSION F,BLACK,TRIM0#,1#,2# |
45100-53300-C0 |
US $786.24 |
||
|
45100
|
45100
45100-53350-C0 Wheel Assy, Steering[08.2010 - 12.2010] GSE2#..ATM 3-SPOKE,LEATHER,BLACK & BLACK,TRIM0#,1#,2# |
45100-53350-C0 |
US $786.24 |
||
|
45100
|
45100
45100-53351-C0 Wheel Assy, Steering[12.2010 - 04.2013] GSE2#..ATM 3-SPOKE,LEATHER,BLACK & BLACK,TRIM0#,1#,2# |
45100-53351-C0 |
US $655.20 |
||
|
45100
|
45100
45100-53351-C4 Wheel Assy, Steering[10.2012 - 01.2013] GSE20,25 3-SPOKE,LEATHER,N.AMERICA SADDLE-TAN PACKAGE,BLACK & SADDLE TAN,TRIM21 |
45100-53351-C4 |
US $655.20 |
||
|
45100
|
45100
45100-53420-C0 Wheel Assy, Steering[08.2010 - 12.2010] GSE20,21..ATM 3-SPOKE,LEATHER,FB PACKAGE,BLACK & LT.GRAY,TRIM2#; GSE20,21..ATM 3-SPOKE,LEATHER,F PACKAGE,BLACK & LT.GRAY,TRIM2# |
45100-53420-C0 |
US $786.24 |
||
|
45100
|
45100
45100-53421-C0 Wheel Assy, Steering[12.2010 - 04.2013] GSE20,21..ATM 3-SPOKE,LEATHER,FB PACKAGE,BLACK & LT.GRAY,TRIM2#; GSE20,21..ATM 3-SPOKE,LEATHER,F PACKAGE,BLACK & LT.GRAY,TRIM2# |
45100-53421-C0 |
US $655.20 |
||
|
45130
|
45130
45130-53080-C0 Button Assy, Horn[08.2005 - 08.2008] GSE2# BLACK,TRIM0#,1#,2# |
45130-53080-C0 |
from US $723.63 |
||
|
45130
|
45130
45130-53110-C0
Button Assy, Horn
[08.2012 - 04.2013] GSE2# BLACK,TRIM0#,1#,2# |
45130-53110-C0 |
— | ||
|
45184
|
45184
45184-53020-C0 Cover, Steering Wheel Boss, Lower[08.2005 - 08.2008] GSE2#..ATM BLACK,TRIM0#,1#,2# |
45184-53020-C0 |
US $19.95 |
||
|
45186
|
45186
45186-53010-C0 Cover, Steering Wheel, Lower No.2[08.2005 - 08.2008] GSE2# BLACK,TRIM0#,1#,2# |
45186-53010-C0 |
US $3.49 |
||
|
45187
|
45187
45187-53010-C0 Cover, Steering Wheel, Lower No.3[08.2005 - 08.2008] GSE2# BLACK,TRIM0#,1#,2# |
45187-53010-C0 |
US $3.49 |
||
|
45188
|
45188
45188-60010 Screw, Steering Wheel Pad Attaching[08.2005 - 08.2008] GSE2# L=18 |
45188-60010 |
US $2.87 |
||
|
45201P
|
45201P
90179-12071 Nut, Steering Wheel Set[08.2005 - 08.2008] GSE2# |
90179-12071 |
from US $1.48 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.67 |
||
|
9016840113
|
9016840113
90168-40113 Screw, Steering Wheel Pad Attaching |
90168-40113 |
US $1.08 |
