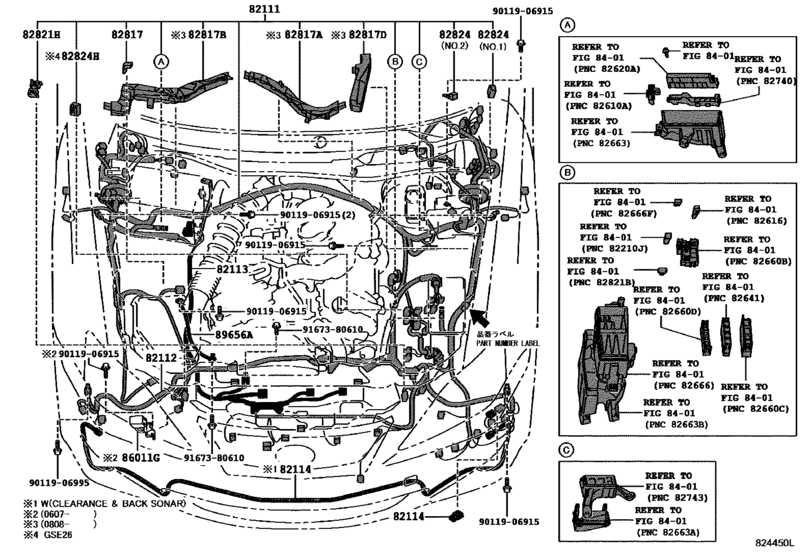

Wiring & Clamp ([08.2005 - ] ENGINE ROOM (0508- )) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- U.S.A.
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-53700
Wire, Engine Room Main
[08.2005 - 07.2006] GSE20..ATM; GSE20..ATM PART NUMBER LABEL=82111-53700 |
82111-53700 |
— | ||
|
82111
|
82111
82111-53701
Wire, Engine Room Main
[07.2006 - 08.2007] GSE20..ATM; GSE20..ATM PART NUMBER LABEL=82111-53701 |
82111-53701 |
— | ||
|
82111
|
82111
82111-53702
Wire, Engine Room Main
[08.2007 - 08.2008] GSE20..ATM; GSE20..ATM PART NUMBER LABEL=82111-53702 |
82111-53702 |
— | ||
|
82111
|
82111
82111-53703
Wire, Engine Room Main
[08.2008 - 08.2009] GSE20..ATM; GSE20..ATM PART NUMBER LABEL=82111-53703 |
82111-53703 |
— | ||
|
82111
|
82111
82111-53704
Wire, Engine Room Main
[08.2009 - 08.2010] GSE20..ATM; GSE20..ATM PART NUMBER LABEL=82111-53704 |
82111-53704 |
— | ||
|
82111
|
82111
82111-53705
Wire, Engine Room Main
[08.2010 - 08.2012] GSE20..ATM; GSE20..ATM PART NUMBER LABEL=82111-53705 |
82111-53705 |
— | ||
|
82111
|
82111
82111-53706
Wire, Engine Room Main
[08.2012 -] GSE20; GSE20 PART NUMBER LABEL=82111-53706 |
82111-53706 |
— | ||
|
82111
|
82111
82111-53710
Wire, Engine Room Main
[08.2005 - 07.2006] GSE20..ATM LUXURY PACKAGE; GSE20..ATM SPORT PACKAGE; GSE20..ATM PART NUMBER LABEL=82111-53710 |
82111-53710 |
— | ||
|
82111
|
82111
82111-53711
Wire, Engine Room Main
[07.2006 - 08.2007] GSE20..ATM HEADLAMP-DISCHARGE WITH/AUTO LEVELING; GSE20..ATM PART NUMBER LABEL=82111-53711 |
82111-53711 |
— | ||
|
82111
|
82111
82111-53712
Wire, Engine Room Main
[08.2007 - 08.2008] GSE20..ATM HEADLAMP-DISCHARGE WITH/AUTO LEVELING; GSE20..ATM PART NUMBER LABEL=82111-53712 |
82111-53712 |
— | ||
|
82111
|
82111
82111-53713
Wire, Engine Room Main
[08.2008 - 08.2009] GSE20..ATM HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING); GSE20..ATM PART NUMBER LABEL=82111-53713 |
82111-53713 |
— | ||
|
82111
|
82111
82111-53714
Wire, Engine Room Main
[08.2009 - 08.2010] GSE20..ATM HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING); GSE20..ATM PART NUMBER LABEL=82111-53714 |
82111-53714 |
— | ||
|
82111
|
82111
82111-53715
Wire, Engine Room Main
[08.2010 - 08.2012] GSE20..ATM HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING); GSE20..ATM PART NUMBER LABEL=82111-53715 |
82111-53715 |
— | ||
|
82111
|
82111
82111-53716
Wire, Engine Room Main
[08.2012 -] GSE20 HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING); GSE20 PART NUMBER LABEL=82111-53716 |
82111-53716 |
— | ||
|
82111
|
82111
82111-53720 Wire, Engine Room MainENGINE ROOM MAIN [08.2005 - 07.2006] GSE20..ATM LUXURY PACKAGE&HEAD LAMP CLEANER-WITH; GSE20..ATM SPORT PACKAGE&HEAD LAMP CLEANER-WITH; GSE20..ATM PART NUMBER LABEL=82111-53720 |
82111-53720 |
US $2,737.28 |
||
|
82111
|
82111
82111-53721
Wire, Engine Room Main
[07.2006 - 08.2007] GSE20..ATM HEADLAMP-DISCHARGE WITH/AUTO LEVELING&HEAD LAMP CLEANER-WITH; GSE20..ATM PART NUMBER LABEL=82111-53721 |
82111-53721 |
— | ||
|
82111
|
82111
82111-53722
Wire, Engine Room Main
[08.2007 - 08.2008] GSE20..ATM HEADLAMP-DISCHARGE WITH/AUTO LEVELING&HEAD LAMP CLEANER-WITH; GSE20..ATM PART NUMBER LABEL=82111-53722 |
82111-53722 |
— | ||
|
82111
|
82111
82111-53B70
Wire, Engine Room Main
[08.2005 - 07.2006] GSE20..ATM KOREA SPEC&LUXURY PACKAGE; GSE20..ATM KOREA SPEC&SPORT PACKAGE; GSE20..ATM PART NUMBER LABEL=82111-53B70 |
82111-53B70 |
— | ||
|
82111
|
82111
82111-53B71
Wire, Engine Room Main
[07.2006 - 08.2007] GSE20..ATM KOREA SPEC&HEADLAMP-DISCHARGE WITH/AUTO LEVELING KOREA; GSE20..ATM PART NUMBER LABEL=82111-53B71 |
82111-53B71 |
— | ||
|
82111
|
82111
82111-53B72
Wire, Engine Room Main
[08.2007 - 08.2008] GSE20..ATM KOREA SPEC&HEADLAMP-DISCHARGE WITH/AUTO LEVELING KOREA; GSE20..ATM PART NUMBER LABEL=82111-53B72 |
82111-53B72 |
— | ||
|
82111
|
82111
82111-53B80
Wire, Engine Room Main
[08.2005 - 07.2006] GSE20..ATM KOREA SPEC&LUXURY PACKAGE&HEAD LAMP CLEANER-WITH; GSE20..ATM KOREA SPEC&SPORT PACKAGE&HEAD LAMP CLEANER-WITH; GSE20..ATM PART NUMBER LABEL=82111-53B80 |
82111-53B80 |
— | ||
|
82111
|
82111
82111-53B81
Wire, Engine Room Main
[07.2006 - 08.2007] GSE20..ATM KOREA SPEC&HEADLAMP-DISCHARGE WITH/AUTO LEVELING KOREA&HEAD LAMP CLEANER-WITH; GSE20..ATM PART NUMBER LABEL=82111-53B81 |
82111-53B81 |
— | ||
|
82111
|
82111
82111-53B82
Wire, Engine Room Main
[08.2007 - 08.2008] GSE20..ATM KOREA SPEC&HEADLAMP-DISCHARGE WITH/AUTO LEVELING KOREA&HEAD LAMP CLEANER-WITH; GSE20..ATM PART NUMBER LABEL=82111-53B82 |
82111-53B82 |
— | ||
|
82111
|
82111
82111-53B83
Wire, Engine Room Main
[08.2008 - 08.2009] GSE20..ATM KOREA SPEC&HEADLAMP-DISCHAGE WITH(AUTO LEVELING) KOREA SPEC; GSE20..ATM PART NUMBER LABEL=82111-53B83 |
82111-53B83 |
— | ||
|
82111
|
82111
82111-53B84
Wire, Engine Room Main
[08.2009 - 08.2010] GSE20..ATM KOREA SPEC&HEADLAMP-DISCHAGE WITH(AUTO LEVELING) KOREA SPEC; GSE20..ATM PART NUMBER LABEL=82111-53B84 |
82111-53B84 |
— | ||
|
82111
|
82111
82111-53B85
Wire, Engine Room Main
[08.2010 - 08.2012] GSE20..ATM KOREA SPEC&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING); GSE20..ATM PART NUMBER LABEL=82111-53B85 |
82111-53B85 |
— | ||
|
82111
|
82111
82111-53B86
Wire, Engine Room Main
[08.2012 -] GSE20 KOREA SPEC&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING); GSE20 PART NUMBER LABEL=82111-53B86 |
82111-53B86 |
— | ||
|
82111
|
82111
82111-53C10
Wire, Engine Room Main
[08.2005 - 07.2006] GSE20..ATM KOREA SPEC; GSE20..ATM PART NUMBER LABEL=82111-53C10 |
82111-53C10 |
— | ||
|
82111
|
82111
82111-53C11
Wire, Engine Room Main
[07.2006 - 08.2007] GSE20..ATM KOREA SPEC; GSE20..ATM PART NUMBER LABEL=82111-53C11 |
82111-53C11 |
— | ||
|
82111
|
82111
82111-53C12
Wire, Engine Room Main
[08.2007 - 08.2008] GSE20..ATM KOREA SPEC; GSE20..ATM PART NUMBER LABEL=82111-53C12 |
82111-53C12 |
— | ||
|
82112
|
82112
82112-53020 Wire, Engine Room, No.2[08.2005 - 08.2008] GSE20,25 |
82112-53020 |
US $572.21 |
||
|
82112
|
82112
82112-53021 Wire, Engine Room, No.2[08.2008 - 08.2010] GSE20,25 |
82112-53021 |
US $476.11 |
||
|
82112
|
82112
82112-53022 Wire, Engine Room, No.2[08.2010 -] GSE20,25; GSE20..ATM KOREA SPEC&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
82112-53022 |
US $476.11 |
||
|
82112
|
82112
82112-53030 Wire, Engine Room, No.2[08.2005 - 08.2008] GSE20,25..ATM PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE) |
82112-53030 |
US $643.55 |
||
|
82112
|
82112
82112-53031 Wire, Engine Room, No.2[08.2008 - 08.2009] GSE20,25..ATM PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE) |
82112-53031 |
US $535.81 |
||
|
82112
|
82112
82112-53280
Wire, Engine Room, No.2
[08.2010 -] GSE20,25..ATM HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
82112-53280 |
— | ||
|
82113
|
82113
82113-53020
Wire, Engine Room, No.3
[08.2005 - 08.2008] GSE20,21 |
82113-53020 |
— | ||
|
82114
|
82114
82114-53010 Wire, Engine Room, No.4[08.2005 - 08.2008] GSE2# |
82114-53010 |
US $5.39 |
||
|
82114
|
82114
82114-53020 Wire, Engine Room, No.4[08.2005 - 08.2008] GSE2# CLEARANCE & BACK SONAR-WITH |
82114-53020 |
US $57.29 |
||
|
82114
|
82114
82114-53021 Wire, Engine Room, No.4[08.2008 - 08.2010] GSE2# CLEARANCE & BACK SONAR-WITH |
82114-53021 |
US $38.15 |
||
|
82114
|
82114
82114-53022 Wire, Engine Room, No.4[08.2010 - 04.2013] GSE2# CLEARANCE & BACK SONAR-WITH |
82114-53022 |
US $39.75 |
||
|
82817
|
82817
82817-12860 Protector, Wiring Harness, No.1[08.2005 - 08.2008] GSE2# |
82817-12860 |
US $1.02 |
||
|
82817A
|
82817A
82817-30B70
Protector, Wiring Harness, No.1
[08.2008 - 08.2010] GSE2# |
82817-30B70 |
— | ||
|
82817B
|
82817B
82817-53130
Protector, Wiring Harness, No.3
[08.2008 - 08.2010] GSE2# |
82817-53130 |
— | ||
|
82817D
|
82817D
82817-53200
Protector, Wiring Harness, No.5
[08.2008 - 08.2010] GSE2# |
82817-53200 |
— | ||
|
82821H
|
82821H
82821-30650 Retainer, Headlamp Harness[08.2005 - 08.2008] GSE2# |
82821-30650 |
US $1.08 |
||
|
82824
|
82824
82824-30130 Connector, Wiring Harness[08.2005 - 08.2008] GSE2# NO.1 |
82824-30130 |
US $3.94 |
||
|
82824
|
82824
82824-48020 Connector, Wiring Harness[08.2005 - 08.2008] GSE2# NO.2 |
82824-48020 |
from US $24.38 |
||
|
86011G
|
86011G
86516-53010 Condenser[07.2006 - 08.2008] GSE2# |
86516-53010 |
US $67.56 |
||
|
89656A
|
89656A
89656-30010 Wire, Power Steering Earth[08.2005 - 08.2008] GSE20,21 |
89656-30010 |
US $15.38 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9011906995
|
9011906995
90119-06995 BOLT WWASHER |
90119-06995 |
US $1.08 |
||
|
9167380610
|
9167380610
91673-80610 New Genuine Part |
91673-80610 |
US $0.83 |
