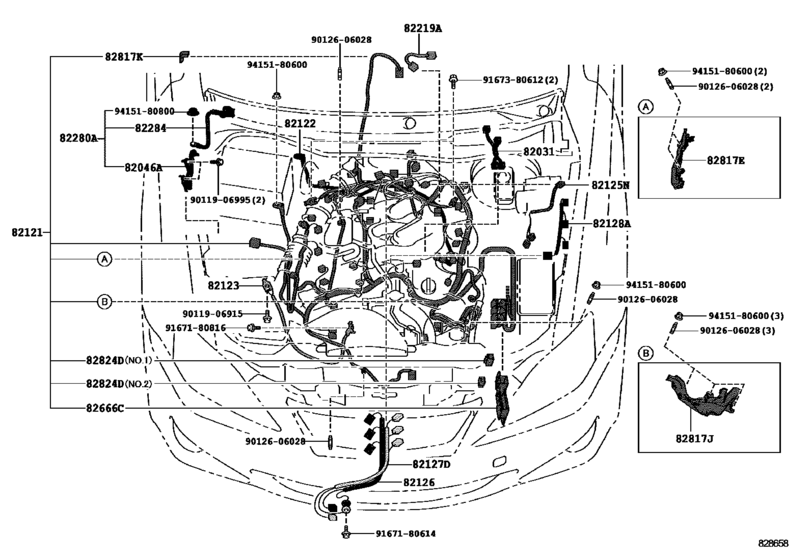

Wiring & Clamp ([08.2012 - ] ENGINE (1208- )) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- U.S.A.
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82031
|
82031
82031-22150 Wire Sub-Assy, Ignition Coil[08.2005 - 08.2008] GSE20,25 |
82031-22150 |
US $31.92 |
||
|
82046A
|
82046A
82046-53080
Wire Sub-Assy, Body Ground, No.1
[08.2012 -] GSE2# |
82046-53080 |
— | ||
|
82121
|
82121
82121-53180
Wire, Engine
[08.2005 - 11.2007] GSE20..ATM |
82121-53180 |
— | ||
| replacement | |||||
|
82121
|
82121
82121-53181
Wire, Engine
[08.2005 - 11.2007] GSE20..ATM |
82121-53181 |
— | ||
|
82121
|
82121
82121-53181
Wire, Engine
[12.2007 - 08.2008] GSE20..ATM |
82121-53181 |
— | ||
|
82121
|
82121
82121-53182
Wire, Engine
[08.2008 - 08.2010] GSE20..ATM |
82121-53182 |
— | ||
|
82121
|
82121
82121-53183
Wire, Engine
[08.2010 -] GSE20..ATM |
82121-53183 |
— | ||
|
82122
|
82122
82122-30820
Wire, Engine, No.2
[08.2005 - 08.2008] GSE2# |
82122-30820 |
— | ||
|
82123
|
82123
82123-30490 Wire, Engine, No.3[08.2005 - 08.2008] GSE2# |
82123-30490 |
US $32.47 |
||
|
82125N
|
82125N
82125-30500 Wire, Transmission[08.2005 - 08.2008] GSE20,25 |
82125-30500 |
US $33.55 |
||
|
82126
|
82126
82126-30010 Wire, Engine[08.2005 - 08.2008] GSE20,25 |
82126-30010 |
US $47.61 |
||
|
82127D
|
82127D
82127-30010 Wire, Differential[08.2005 - 08.2008] GSE20,25 |
82127-30010 |
US $77.93 |
||
|
82219A
|
82219A
82219-30020 Wire, SensorSENSOR [08.2005 - 08.2006] GSE20,25 |
82219-30020 |
US $11.79 |
||
| replacement | |||||
|
82219A
|
82219A
82219-30021
Wire, Sensor
[08.2005 - 08.2006] GSE20,25 |
82219-30021 |
— | ||
|
82219A
|
82219A
82219-30021
Wire, Sensor
[08.2006 - 08.2008] GSE20,25 |
82219-30021 |
— | ||
|
82280A
|
82280A
82280-53040
Wire Assy, Battery To Cowl Top Side
[08.2012 -] GSE2# |
82280-53040 |
— | ||
|
82284
|
82284
82284-30030
Wire, Earth
[08.2005 - 08.2008] GSE2# |
82284-30030 |
— | ||
|
82284
|
82284
82284-53030
Wire, Earth
[08.2010 - 08.2012] GSE2# |
82284-53030 |
— | ||
|
82284
|
82284
82284-53090
Wire, Earth
[08.2012 -] GSE2# |
82284-53090 |
— | ||
|
82666C
|
82666C
82666-30740 Holder, Connector No.4[08.2005 - 08.2008] GSE2# |
82666-30740 |
US $17.47 |
||
|
82817E
|
82817E
82817-2A730 Protector, Wiring Harness, No.6[08.2008 - 08.2010] GSE2# |
82817-2A730 |
US $23.06 |
||
|
82817J
|
82817J
82817-30A80 Protector, Wiring Harness, No.7[08.2008 - 08.2010] GSE2# |
82817-30A80 |
US $23.44 |
||
|
82824D
|
82824D
82824-30180 Connector, Wiring Harness[08.2005 - 08.2008] GSE2# NO.1 |
82824-30180 |
US $5.53 |
||
|
82824D
|
82824D
82824-52080 Connector, Wiring Harness[08.2005 - 08.2008] GSE2# NO.2 |
82824-52080 |
US $18.20 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9011906995
|
9011906995
90119-06995 BOLT WWASHER |
90119-06995 |
US $1.08 |
||
|
9012606028
|
9012606028
90126-06028 Bolt, Stud(For Oil Pan) |
90126-06028 |
from US $0.63 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.63 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.76 |
||
|
9167380612
|
9167380612
91673-80612 BOLT FLANGE |
91673-80612 |
US $1.08 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.78 |
||
