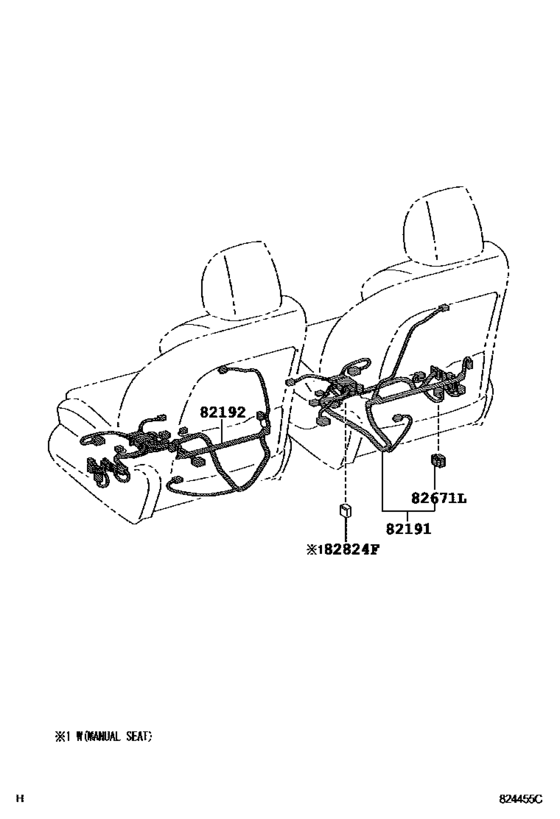

Wiring & Clamp ([08.2005 - ] SEAT (0508- )) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- U.S.A.
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82191
|
82191
82191-53050
Wire, Front Seat, Rh
[08.2005 - 07.2006] GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER |
82191-53050 |
— | ||
|
82191
|
82191
82191-53051
Wire, Front Seat, Rh
[08.2007 - 08.2008] GSE20..ATM KOREA SPEC&SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER |
82191-53051 |
— | ||
|
82191
|
82191
82191-53061
Wire, Front Seat, Rh
[08.2007 - 08.2008] GSE20..ATM KOREA SPEC&SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER&SEAT HEATER-WITH(DRIVER & PASSE NGER SEAT) |
82191-53061 |
— | ||
|
82191
|
82191
82191-53062
Wire, Front Seat, Rh
[08.2009 - 08.2010] GSE20..ATM KOREA SPEC&VERSION F&FRONT SEAT-F SPORTS PACKAGE (FABRIC POWER SEAT)&SEAT HEATER-W ITH(DRIVER & PASSENGER SEAT); GSE20..ATM KOREA SPEC&VERSION F&FRONT SEAT-F SPORTS PACKAGE (LEATHER, POWER SEAT)&SEAT HEATER -WITH(DRIVER & PA |
82191-53062 |
— | ||
|
82191
|
82191
82191-53070
Wire, Front Seat, Rh
[08.2005 - 07.2006] GSE2# LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL; GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL |
82191-53070 |
— | ||
|
82191
|
82191
82191-53071
Wire, Front Seat, Rh
[08.2007 - 08.2008] GSE20..ATM KOREA SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HE AT & COOL; GSE20..ATM KOREA SPEC&SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEA T & COOL |
82191-53071 |
— | ||
|
82191
|
82191
82191-53072
Wire, Front Seat, Rh
[08.2008 - 08.2009] GSE20..ATM KOREA SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER; GSE20..ATM KOREA SPEC&SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
82191-53072 |
— | ||
|
82191
|
82191
82191-53140
Wire, Front Seat, Rh
[08.2005 - 07.2006] GSE20,21 FRONT SEAT-SMOOTH LEATHER |
82191-53140 |
— | ||
|
82191
|
82191
82191-53141
Wire, Front Seat, Rh
[08.2007 - 08.2008] GSE20..ATM KOREA SPEC&FRONT SEAT-SMOOTH LEATHER |
82191-53141 |
— | ||
|
82191
|
82191
82191-53150
Wire, Front Seat, Rh
[08.2005 - 07.2006] GSE2# FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL |
82191-53150 |
— | ||
|
82191
|
82191
82191-53151
Wire, Front Seat, Rh
[08.2007 - 08.2008] GSE20..ATM KOREA SPEC&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL |
82191-53151 |
— | ||
|
82191
|
82191
82191-53153
Wire, Front Seat, Rh
[08.2010 - 04.2013] GSE20..ATM KOREA SPEC&LUXURY PACKAGE&SEAT HEATER-AIR CONDITIONER SEAT(DRIVER & PASSENGER) |
82191-53153 |
— | ||
|
82191
|
82191
82191-53170
Wire, Front Seat, Rh
[07.2006 - 08.2007] GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER |
82191-53170 |
— | ||
|
82191
|
82191
82191-53171
Wire, Front Seat, Rh
[08.2007 - 08.2008] GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER |
82191-53171 |
— | ||
|
82191
|
82191
82191-53180
Wire, Front Seat, Rh
[07.2006 - 08.2007] GSE2# LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL; GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL |
82191-53180 |
— | ||
|
82191
|
82191
82191-53181
Wire, Front Seat, Rh
[08.2007 - 08.2008] GSE2# LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL; GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL |
82191-53181 |
— | ||
|
82191
|
82191
82191-53182
Wire, Front Seat, Rh
[08.2008 - 08.2009] GSE2#..ATM LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER; GSE20,21..ATM SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
82191-53182 |
— | ||
|
82191
|
82191
82191-53190
Wire, Front Seat, Rh
[07.2006 - 08.2007] GSE20,21 FRONT SEAT-SMOOTH LEATHER |
82191-53190 |
— | ||
|
82191
|
82191
82191-53191
Wire, Front Seat, Rh
[08.2007 - 08.2008] GSE2# FRONT SEAT-SMOOTH LEATHER |
82191-53191 |
— | ||
|
82191
|
82191
82191-53192
Wire, Front Seat, Rh
[08.2008 - 08.2009] GSE20,21 FRONT SEAT-SMOOTH LEATHER |
82191-53192 |
— | ||
|
82191
|
82191
82191-53193
Wire, Front Seat, Rh
[08.2009 - 08.2010] GSE20,21; GSE21;GSE20..MTM FRONT SEAT-FABRIC, MANUAL SEAT; GSE20,21 CANADA SPEC&FRONT SEAT-FABRIC, MANUAL SEAT |
82191-53193 |
— | ||
|
82191
|
82191
82191-53200
Wire, Front Seat, Rh
[07.2006 - 08.2007] GSE2# FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL |
82191-53200 |
— | ||
|
82191
|
82191
82191-53201
Wire, Front Seat, Rh
[08.2007 - 08.2008] GSE2# FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL |
82191-53201 |
— | ||
|
82191
|
82191
82191-53202
Wire, Front Seat, Rh
[08.2008 - 08.2009] GSE2# FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
82191-53202 |
— | ||
|
82191
|
82191
82191-53203
Wire, Front Seat, Rh
[08.2009 - 08.2010] GSE2# SEAT HEATER-AIR CONDITIONER SEAT(DRIVER & PASSENGER) |
82191-53203 |
— | ||
|
82191
|
82191
82191-53240
Wire, Front Seat, Rh
[08.2007 - 08.2008] GSE20..ATM KOREA SPEC&FRONT SEAT-SMOOTH LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT) |
82191-53240 |
— | ||
|
82191
|
82191
82191-53242
Wire, Front Seat, Rh
[08.2010 - 04.2013] GSE20..ATM KOREA SPEC&FB PACKAGE&FRONT SEAT-F SPORTS PACKAGE (FABRIC POWER SEAT)&SEAT HEATER- WITH(DRIVER & PASSENGER SEAT); GSE20..ATM KOREA SPEC&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT) |
82191-53242 |
— | ||
|
82191
|
82191
82191-53260
Wire, Front Seat, Rh
[08.2007 - 08.2008] GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT) |
82191-53260 |
— | ||
|
82191
|
82191
82191-53270
Wire, Front Seat, Rh
[08.2007 - 08.2008] GSE2# FRONT SEAT-SMOOTH LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT) |
82191-53270 |
— | ||
|
82191
|
82191
82191-53271
Wire, Front Seat, Rh
[08.2008 - 08.2009] GSE20,21 CANADA SPEC&FRONT SEAT-SMOOTH LEATHER; GSE25 FRONT SEAT-SMOOTH LEATHER |
82191-53271 |
— | ||
|
82191
|
82191
82191-53272
Wire, Front Seat, Rh
[08.2009 - 08.2010] GSE25; GSE21;GSE20..MTM SEAT HEATER-WITH(DRIVER & PASSENGER SEAT); GSE25 CANADA SPEC&FRONT SEAT-FABRIC, MANUAL SEAT; GSE25 FRONT SEAT-FABRIC, MANUAL SEAT&SEAT HEATER-WITHOUT; GSE20..ATM CANADA SPEC&SEAT HEATER-WITH(DRIVER & PASSENGER S |
82191-53272 |
— | ||
|
82191
|
82191
82191-53370
Wire, Front Seat, Rh
[08.2009 - 08.2010] GSE21 VERSION F&FRONT SEAT-F SPORTS PACKAGE (FABRIC POWER SEAT)&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT); GSE21 VERSION F&FRONT SEAT-F SPORTS PACKAGE (LEATHER, POWER SEAT)&SEAT HEATER-WITH(DRIVE R & PASSENGER SEAT); GSE20..ATM CANADA |
82191-53370 |
— | ||
|
82192
|
82192
82192-53050
Wire, Front Seat, Lh
[08.2005 - 08.2007] GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER |
82192-53050 |
— | ||
|
82192
|
82192
82192-53051
Wire, Front Seat, Lh
[08.2007 - 08.2008] GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER |
82192-53051 |
— | ||
|
82192
|
82192
82192-53061
Wire, Front Seat, Lh
[08.2007 - 08.2008] GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT) |
82192-53061 |
— | ||
|
82192
|
82192
82192-53070
Wire, Front Seat, Lh
[08.2005 - 08.2007] GSE2# LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL; GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL |
82192-53070 |
— | ||
|
82192
|
82192
82192-53071
Wire, Front Seat, Lh
[08.2007 - 08.2008] GSE2# LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL; GSE20,21 SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL |
82192-53071 |
— | ||
|
82192
|
82192
82192-53072
Wire, Front Seat, Lh
[08.2008 - 08.2009] GSE2#..ATM LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER; GSE20,21..ATM SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
82192-53072 |
— | ||
|
82192
|
82192
82192-53130
Wire, Front Seat, Lh
[08.2005 - 08.2007] GSE25; GSE20,21 FRONT SEAT-SMOOTH LEATHER |
82192-53130 |
— | ||
|
82192
|
82192
82192-53131
Wire, Front Seat, Lh
[08.2007 - 08.2008] GSE25; GSE20,21 FRONT SEAT-SMOOTH LEATHER |
82192-53131 |
— | ||
|
82192
|
82192
82192-53132
Wire, Front Seat, Lh
[08.2009 - 08.2010] GSE20,21; GSE20,21 FRONT SEAT-FABRIC, MANUAL SEAT; GSE20,21 CANADA SPEC&FRONT SEAT-FABRIC, MANUAL SEAT; GSE25 FRONT SEAT-FABRIC, MANUAL SEAT&SEAT HEATER-WITHOUT |
82192-53132 |
— | ||
|
82192
|
82192
82192-53151
Wire, Front Seat, Lh
[08.2007 - 08.2008] GSE20,21 FRONT SEAT-SMOOTH LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT); GSE25 SEAT HEATER-WITH(DRIVER & PASSENGER SEAT) |
82192-53151 |
— | ||
|
82192
|
82192
82192-53152
Wire, Front Seat, Lh
[08.2009 - 08.2010] GSE25; GSE20,21 SEAT HEATER-WITH(DRIVER & PASSENGER SEAT) |
82192-53152 |
— | ||
|
82192
|
82192
82192-53160
Wire, Front Seat, Lh
[08.2005 - 08.2007] GSE2# FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL |
82192-53160 |
— | ||
|
82192
|
82192
82192-53161
Wire, Front Seat, Lh
[08.2007 - 08.2008] GSE2# FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL |
82192-53161 |
— | ||
|
82192
|
82192
82192-53162
Wire, Front Seat, Lh
[08.2008 - 08.2009] GSE2# FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
82192-53162 |
— | ||
|
82192
|
82192
82192-53163
Wire, Front Seat, Lh
[08.2009 - 08.2010] GSE2# SEAT HEATER-AIR CONDITIONER SEAT(DRIVER & PASSENGER) |
82192-53163 |
— | ||
|
82671L
|
82671L
82671-30350 Block, Junction[08.2005 - 08.2008] GSE2# LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL; GSE20,21 SPORT PACKAGE&FRONT SEAT-SMOOTH LEATHER; GSE2# FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL; GSE20,21 FRONT SEAT-SMOO |
82671-30350 |
US $5.68 |
||
|
82824F
|
82824F
82824-48100 Connector, Wiring Harness[08.2005 - 08.2008] GSE2#; GSE25 FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL |
82824-48100 |
US $24.90 |
