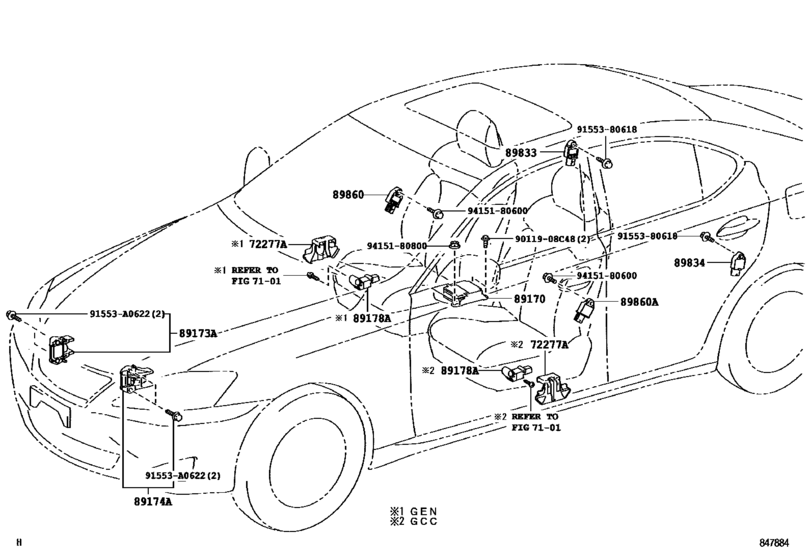

Air Bag ([04.2006 - ] (0604- )) Diagram Toyota LEXUS IS
- Year
- 2010 - 2013
- Sales region
- General
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- IS250
- From
- 08.2010
- To
- 04.2013
- Vehicle Model
- IS250
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
72277A
|
72277A
72277-33021 Protector, Seat Slide Position Sensor[08.2010 -] GSE2#..GCC; GSE22..GEN LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
72277-33021 |
US $5.53 |
||
|
89170
|
89170
89170-53080
Sensor Assy, Air Bag
[08.2010 - 08.2012] GSE2#..GCC |
89170-53080 |
— | ||
|
89170
|
89170
89170-53260
Sensor Assy, Air Bag
[08.2010 -] GSE20 CHINA SPEC |
89170-53260 |
— | ||
|
89170
|
89170
89170-53480
Sensor Assy, Air Bag
[08.2012 -] GSE2#..GCC |
89170-53480 |
— | ||
|
89173A
|
89173A
89173-29255
Sensor, Air Bag, Front Rh
[08.2010 - 08.2012] GSE2#..GCC |
89173-29255 |
— | ||
|
89173A
|
89173A
89173-39415 Sensor, Air Bag, Front RhAIR BAG, FRONT RH [08.2012 -] GSE2#..GCC |
89173-39415 |
US $122.30 |
||
|
89173A
|
89173A
89173-59245 Sensor, Air Bag, Front Rh[08.2010 -] GSE22..GEN; GSE20 CHINA SPEC |
89173-59245 |
US $147.06 |
||
|
89174A
|
89174A
89173-29255
Sensor, Air Bag, Front Rh
[08.2010 - 08.2012] GSE2#..GCC |
89173-29255 |
— | ||
|
89174A
|
89174A
89173-39415 Sensor, Air Bag, Front RhAIR BAG, FRONT RH [08.2012 -] GSE2#..GCC |
89173-39415 |
US $122.30 |
||
|
89174A
|
89174A
89173-59245 Sensor, Air Bag, Front Rh[08.2010 -] GSE22..GEN; GSE20 CHINA SPEC |
89173-59245 |
US $147.06 |
||
|
89178A
|
89178A
89178-33050 Sensor, Seat Position Air Bag[08.2010 -] GSE2#..GCC; GSE22..GEN LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
89178-33050 |
from US $33.83 |
||
|
89833
|
89833
89831-22020 Sensor, Air Bag, Rear Rh[08.2010 - 08.2012] GSE2#..GCC |
89831-22020 |
US $110.66 |
||
|
89833
|
89833
89831-53040
Sensor, Air Bag, Rear Rh
[08.2012 -] GSE2#..GCC |
89831-53040 |
— | ||
| replacement | |||||
|
89833
|
89833
89831-30020 Sensor, Air Bag, Rear Rh[08.2012 -] GSE2#..GCC |
89831-30020 |
from US $108.62 |
||
|
89834
|
89834
89831-22020 Sensor, Air Bag, Rear Rh[08.2010 - 08.2012] GSE2#..GCC |
89831-22020 |
US $110.66 |
||
|
89834
|
89834
89831-53040
Sensor, Air Bag, Rear Rh
[08.2012 -] GSE2#..GCC |
89831-53040 |
— | ||
| replacement | |||||
|
89834
|
89834
89831-30020 Sensor, Air Bag, Rear Rh[08.2012 -] GSE2#..GCC |
89831-30020 |
from US $108.62 |
||
|
89860
|
89860
89831-53010 Sensor Assy, Side Air Bag, Rh[08.2010 - 08.2012] GSE2#..GCC |
89831-53010 |
from US $110.66 |
||
|
89860
|
89860
89831-53030
Sensor Assy, Side Air Bag, Rh
[08.2012 -] GSE2#..GCC |
89831-53030 |
— | ||
| replacement | |||||
|
89860
|
89860
89831-30010 Sensor Assy, Side Air Bag, RhSIDE AIR BAG, RH [08.2012 -] GSE2#..GCC |
89831-30010 |
US $122.30 |
||
|
89860A
|
89860A
89831-53010 Sensor Assy, Side Air Bag, Rh[08.2010 - 08.2012] GSE2#..GCC |
89831-53010 |
from US $110.66 |
||
|
89860A
|
89860A
89831-53030
Sensor Assy, Side Air Bag, Rh
[08.2012 -] GSE2#..GCC |
89831-53030 |
— | ||
| replacement | |||||
|
89860A
|
89860A
89831-30010 Sensor Assy, Side Air Bag, RhSIDE AIR BAG, RH [08.2012 -] GSE2#..GCC |
89831-30010 |
US $122.30 |
||
|
91553A0622
|
91553A0622
91553-A0622 New Genuine Part |
91553-A0622 |
US $1.08 |
||
|
9011908C48
|
9011908C48
90119-08C48
Direct
|
90119-08C48 |
— | ||
|
9155380618
|
9155380618
91553-80618 Direct |
91553-80618 |
US $1.08 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.78 |
||
