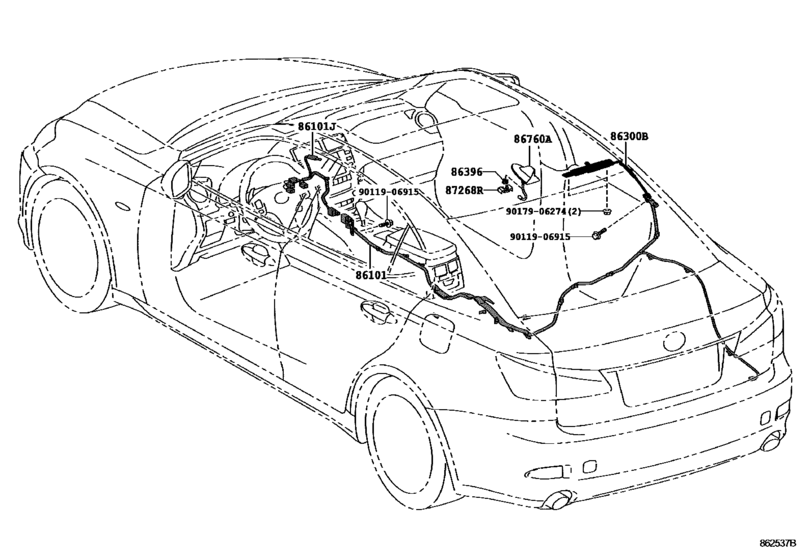

Antenna ([04.2006 - ] (0604- )) Diagram Toyota LEXUS IS
- Year
- 2010 - 2013
- Sales region
- General
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- IS250
- From
- 08.2010
- To
- 04.2013
- Vehicle Model
- IS250
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86101
|
86101
86101-53480 Cord Sub-Assy, Antenna[08.2010 -] GSE2# |
86101-53480 |
US $100.46 |
||
|
86101
|
86101
86101-53B10
Cord Sub-Assy, Antenna
[08.2010 - 08.2012] GSE20 AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&MAYDAY SYSTEM-TELEMATICS; GSE20 AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&MAYDAY SYSTEM-TELEMATICS |
86101-53B10 |
— | ||
|
86101J
|
86101J
86101-53A10
Cord Sub-Assy, Antenna, No.2
[08.2010 - 04.2013] GSE2# |
86101-53A10 |
— | ||
|
86300B
|
86300B
86300-53180 Antenna Assy, Amplifier, No.1AMPLIFIER [08.2010 -] GSE2#..GCC |
86300-53180 |
US $297.77 |
||
|
86396
|
86396
86396-30050 Nut, Antenna[08.2010 - 12.2010] GSE20 MAYDAY SYSTEM-TELEMATICS |
86396-30050 |
US $9.03 |
||
|
86396
|
86396
86396-47010 Nut, AntennaANTENNA [12.2010 - 08.2012] GSE20 MAYDAY SYSTEM-TELEMATICS |
86396-47010 |
US $7.71 |
||
|
86760A
|
86760A
86760-53010-A1 Antenna Assy, Telephone[08.2010 - 08.2011] GSE20 MAYDAY SYSTEM-TELEMATICS,BLUISH PEARL CS.,074 |
86760-53010-A1 |
US $131.04 |
||
|
86760A
|
86760A
86760-53010-A2 Antenna Assy, Telephone[08.2010 - 08.2012] GSE20 MAYDAY SYSTEM-TELEMATICS,WHITE PEARL CS.,077 |
86760-53010-A2 |
US $131.04 |
||
|
86760A
|
86760A
86760-53010-B0 Antenna Assy, Telephone[08.2010 - 08.2011] GSE20 MAYDAY SYSTEM-TELEMATICS,DK.GRAY MC.,1G0 |
86760-53010-B0 |
US $131.04 |
||
|
86760A
|
86760A
86760-53010-B1 Antenna Assy, Telephone[08.2010 - 08.2012] GSE20 MAYDAY SYSTEM-TELEMATICS,SILVER M.M.,1G1 |
86760-53010-B1 |
US $131.04 |
||
|
86760A
|
86760A
86760-53010-B4 Antenna Assy, Telephone[08.2011 - 08.2012] GSE20 MAYDAY SYSTEM-TELEMATICS,MERCURY GRAY MC.,1H9 |
86760-53010-B4 |
US $109.20 |
||
|
86760A
|
86760A
86760-53010-C1 Antenna Assy, Telephone[08.2010 - 08.2012] GSE20 MAYDAY SYSTEM-TELEMATICS,BLACK,212 |
86760-53010-C1 |
US $109.20 |
||
|
86760A
|
86760A
86760-53010-C2 Antenna Assy, Telephone[08.2010 - 08.2012] GSE20 MAYDAY SYSTEM-TELEMATICS,STARLIGHT BLACK GF.,217 |
86760-53010-C2 |
US $109.20 |
||
|
86760A
|
86760A
86760-53010-D0 Antenna Assy, Telephone[08.2010 - 08.2012] GSE20 MAYDAY SYSTEM-TELEMATICS,RED MC.CS.,3R1 |
86760-53010-D0 |
US $109.20 |
||
|
86760A
|
86760A
86760-53010-E4 Antenna Assy, Telephone[08.2011 - 08.2012] GSE20 MAYDAY SYSTEM-TELEMATICS,FIRE AGATE M.M.,4V3 |
86760-53010-E4 |
US $131.04 |
||
|
86760A
|
86760A
86760-53010-J4 Antenna Assy, Telephone[08.2010 - 08.2012] GSE20 MAYDAY SYSTEM-TELEMATICS,BLUE ME. CC.,8U1 |
86760-53010-J4 |
US $109.20 |
||
|
86760A
|
86760A
86760-53010-J5 Antenna Assy, Telephone[08.2010 - 08.2012] GSE20 MAYDAY SYSTEM-TELEMATICS,SILVERY BLUE ME.,8U9 |
86760-53010-J5 |
US $131.04 |
||
|
86760A
|
86760A
86760-53010-J6 Antenna Assy, Telephone[08.2010 - 08.2012] GSE20 MAYDAY SYSTEM-TELEMATICS,LAPIS LAZULI MC.,8V3 |
86760-53010-J6 |
US $131.04 |
||
|
86760A
|
86760A
86760-53010-K0 Antenna Assy, TelephoneTELEPHONE [08.2010 - 08.2012] GSE20 MAYDAY SYSTEM-TELEMATICS,CATTLEYA M.M.,9AL |
86760-53010-K0 |
US $131.04 |
||
|
87268R
|
87268R
87268-50020 Protector, Telephone Antenna[08.2010 - 11.2010] GSE20 MAYDAY SYSTEM-TELEMATICS |
87268-50020 |
US $8.44 |
||
| replacement | |||||
|
87268R
|
87268R
87268-50021 Protector, Telephone Antenna[08.2010 - 11.2010] GSE20 MAYDAY SYSTEM-TELEMATICS |
87268-50021 |
US $6.26 |
||
|
87268R
|
87268R
87268-50021 Protector, Telephone Antenna[12.2010 - 08.2012] GSE20 MAYDAY SYSTEM-TELEMATICS |
87268-50021 |
US $6.26 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
