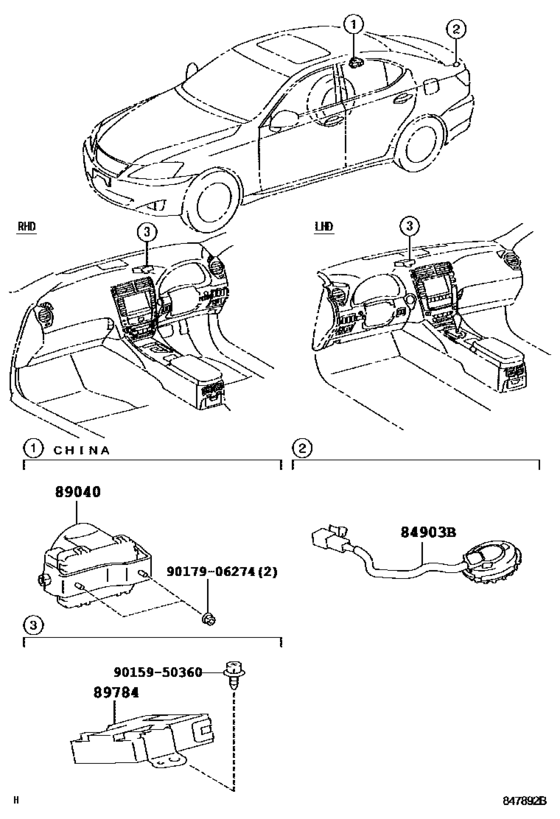

Anti-Theft Device ([04.2006 - ] (0604- )) Diagram Toyota LEXUS IS
- Year
- 2010 - 2013
- Sales region
- General
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- IS250
- From
- 08.2010
- To
- 04.2013
- Vehicle Model
- IS250
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84903B
|
84903B
84903-50210 Switch Sub-Assy, Door Unlock[08.2010 - 04.2013] GSE2# |
84903-50210 |
US $27.08 |
||
|
89040
|
89040
89040-53060
Siren Assy, Theft Warning
[08.2010 - 07.2012] GSE20 CHINA SPEC |
89040-53060 |
— | ||
| replacement | |||||
|
89040
|
89040
89040-53061
Siren Assy, Theft Warning
[08.2010 - 07.2012] GSE20 CHINA SPEC |
89040-53061 |
— | ||
|
89040
|
89040
89040-53061
Siren Assy, Theft Warning
[08.2012 -] GSE20 CHINA SPEC |
89040-53061 |
— | ||
|
89784
|
89784
89784-53020 Computer, Immobilizer Code[08.2011 -] GSE2# |
89784-53020 |
US $62.17 |
||
|
89784
|
89784
89784-53030 Computer, Immobilizer CodeIMMOBILIZER CODE [08.2010 - 07.2011] GSE2# |
89784-53030 |
US $75.71 |
||
| replacement | |||||
|
89784
|
89784
89784-53031
Computer, Immobilizer Code
[08.2010 - 07.2011] GSE2# |
89784-53031 |
— | ||
|
9015950360
|
9015950360
90159-50360 SCREW |
90159-50360 |
US $1.08 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $1.25 |
||
