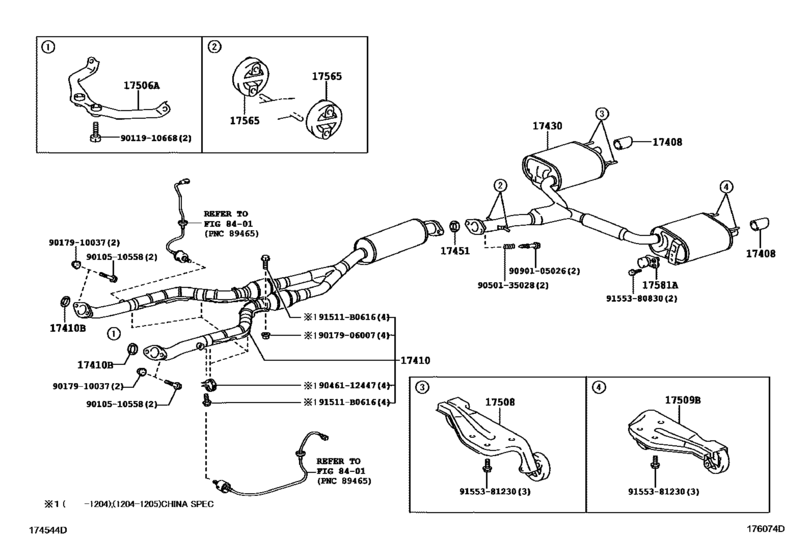

Exhaust Pipe ([04.2006 - ] (0604- )) Diagram Toyota LEXUS IS
- Year
- 2010 - 2013
- Sales region
- General
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- IS250
- From
- 08.2010
- To
- 04.2013
- Vehicle Model
- IS250
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17408
|
17408
17408-31070 Baffle Sub Assy, Exhaust Tail Pipe[08.2010 -] 3GRFE,4GRFSE..GSE2# |
17408-31070 |
US $59.70 |
||
|
17410
|
17410
17410-31A30
Pipe Assy, Exhaust, Front
[08.2010 - 01.2011] 4GRFSE..GSE20 *114=TOYOTA/GQ2/Y |
17410-31A30 |
— | ||
| replacement | |||||
|
17410
|
17410
17410-31G60
Pipe Assy, Exhaust, Front
[08.2010 - 01.2011] 4GRFSE..GSE20 *114=TOYOTA/GQ2/Y |
17410-31G60 |
— | ||
|
17410
|
17410
17410-31A31
Pipe Assy, Exhaust, Front
[02.2011 - 03.2012] 4GRFSE..GSE20 *114=TOYOTA/GQ2/Y |
17410-31A31 |
— | ||
| replacement | |||||
|
17410
|
17410
17410-31G60
Pipe Assy, Exhaust, Front
[02.2011 - 03.2012] 4GRFSE..GSE20 *114=TOYOTA/GQ2/Y |
17410-31G60 |
— | ||
|
17410
|
17410
17410-31C30
Pipe Assy, Exhaust, Front
[08.2010 - 01.2011] 4GRFSE..GSE20 *114=TOYOTA/GQ2/Y,REGULATION COMPLIANCE LABEL & NAME PLATE-CHINA&CHINA SPEC; 4GRFSE..GSE20 *114=TOYOTA/GQ2/Y,REGULATION COMPLIANCE LABEL & NAME PLATE-BEIJING&CHINA SPEC |
17410-31C30 |
— | ||
| replacement | |||||
|
17410
|
17410
17410-31G50
Pipe Assy, Exhaust, Front
[08.2010 - 01.2011] 4GRFSE..GSE20 *114=TOYOTA/GQ2/Y,REGULATION COMPLIANCE LABEL & NAME PLATE-CHINA&CHINA SPEC; 4GRFSE..GSE20 *114=TOYOTA/GQ2/Y,REGULATION COMPLIANCE LABEL & NAME PLATE-BEIJING&CHINA SPEC |
17410-31G50 |
— | ||
|
17410
|
17410
17410-31C31
Pipe Assy, Exhaust, Front
[02.2011 - 05.2012] 4GRFSE..GSE20 *114=TOYOTA/GQ2/Y,REGULATION COMPLIANCE LABEL & NAME PLATE-CHINA&CHINA SPEC; 4GRFSE..GSE20 *114=TOYOTA/GQ2/Y,REGULATION COMPLIANCE LABEL & NAME PLATE-BEIJING&CHINA SPEC |
17410-31C31 |
— | ||
| replacement | |||||
|
17410
|
17410
17410-31G50
Pipe Assy, Exhaust, Front
[02.2011 - 05.2012] 4GRFSE..GSE20 *114=TOYOTA/GQ2/Y,REGULATION COMPLIANCE LABEL & NAME PLATE-CHINA&CHINA SPEC; 4GRFSE..GSE20 *114=TOYOTA/GQ2/Y,REGULATION COMPLIANCE LABEL & NAME PLATE-BEIJING&CHINA SPEC |
17410-31G50 |
— | ||
|
17410
|
17410
17410-31G50
Pipe Assy, Exhaust, Front
[05.2012 - 04.2013] 4GRFSE..GSE20 REGULATION COMPLIANCE LABEL & NAME PLATE-CHINA&CHINA SPEC; 4GRFSE..GSE20 REGULATION COMPLIANCE LABEL & NAME PLATE-BEIJING&CHINA SPEC |
17410-31G50 |
— | ||
|
17410
|
17410
17410-31G60
Pipe Assy, Exhaust, Front
[04.2012 - 04.2013] 4GRFSE..GSE20 *114=TOYOTA/RC4/Y |
17410-31G60 |
— | ||
|
17410B
|
17410B
90917-06078 Gasket, Exhaust Pipe[08.2010 -] 3GRFE,4GRFSE..GSE2# |
90917-06078 |
from US $5.93 |
||
| replacement | |||||
|
17410B
|
17410B
90917-A6003 Gasket, Exhaust Pipe[08.2010 -] 3GRFE,4GRFSE..GSE2# |
90917-A6003 |
US $27.68 |
||
|
17430
|
17430
17430-31A70 Pipe Assy, Exhaust, Tail[08.2010 - 01.2012] 3GRFE,4GRFSE..GSE2# |
17430-31A70 |
US $576.58 |
||
| replacement | |||||
|
17430
|
17430
17430-31A71 Pipe Assy, Exhaust, Tail[08.2010 - 01.2012] 3GRFE,4GRFSE..GSE2# |
17430-31A71 |
US $654.98 |
||
|
17430
|
17430
17430-31A71 Pipe Assy, Exhaust, Tail[02.2012 -] 3GRFE,4GRFSE..GSE2# |
17430-31A71 |
US $654.98 |
||
|
17430
|
17430
17430-31A80
Pipe Assy, Exhaust, Tail
[08.2010 - 01.2012] 4GRFSE..GSE20 CHINA SPEC |
17430-31A80 |
— | ||
| replacement | |||||
|
17430
|
17430
17430-31A81
Pipe Assy, Exhaust, Tail
[08.2010 - 01.2012] 4GRFSE..GSE20 CHINA SPEC |
17430-31A81 |
— | ||
|
17430
|
17430
17430-31A81
Pipe Assy, Exhaust, Tail
[02.2012 -] 3GRFE..GSE22..GCC BRAZIL SPEC; 4GRFSE..GSE20 CHINA SPEC |
17430-31A81 |
— | ||
|
17451
|
17451
17451-31011 Gasket, Exhaust Pipe[08.2010 - 02.2011] 3GRFE,4GRFSE..GSE2# |
17451-31011 |
US $24.32 |
||
| replacement | |||||
|
17451
|
17451
17451-31012 Gasket, Exhaust Pipe, Center[08.2010 - 02.2011] 3GRFE,4GRFSE..GSE2# |
17451-31012 |
from US $19.38 |
||
|
17451
|
17451
17451-31012 Gasket, Exhaust Pipe, Center[03.2011 -] 3GRFE,4GRFSE..GSE2# |
17451-31012 |
from US $19.38 |
||
|
17506A
|
17506A
17506-31030 Bracket Sub-Assy, Exhaust Pipe No.1 Support[08.2010 -] 3GRFE,4GRFSE..GSE2# |
17506-31030 |
US $36.34 |
||
|
17508
|
17508
17508-31100
Support Sub-Assy, Exhaust Pipe, No.3
[08.2010 - 11.2010] 3GRFE,4GRFSE..GSE2# |
17508-31100 |
— | ||
| replacement | |||||
|
17508
|
17508
17508-31101 Support Sub-Assy, Exhaust Pipe, No.3[08.2010 - 11.2010] 3GRFE,4GRFSE..GSE2# |
17508-31101 |
from US $34.69 |
||
|
17508
|
17508
17508-31101 Support Sub-Assy, Exhaust Pipe, No.3[12.2010 -] 3GRFE,4GRFSE..GSE2# |
17508-31101 |
from US $34.69 |
||
|
17509B
|
17509B
17509-31060
Support, Exhaust Pipe No.4
[08.2010 - 11.2010] 3GRFE,4GRFSE..GSE2# |
17509-31060 |
— | ||
| replacement | |||||
|
17509B
|
17509B
17509-31061 Support, Exhaust Pipe No.4[08.2010 - 11.2010] 3GRFE,4GRFSE..GSE2# |
17509-31061 |
from US $34.69 |
||
|
17509B
|
17509B
17509-31061 Support, Exhaust Pipe No.4[12.2010 -] 3GRFE,4GRFSE..GSE2# |
17509-31061 |
from US $34.69 |
||
|
17565
|
17565
17565-22040 Support, Exhaust Pipe, No.1[08.2010 -] 3GRFE,4GRFSE..GSE2# |
17565-22040 |
from US $9.29 |
||
|
17581A
|
17581A
17581-46120 Damper, Exhaust Pipe[08.2010 -] 3GRFE,4GRFSE..GSE2# |
17581-46120 |
US $40.15 |
||
|
91511B0616
|
91511B0616
91511-B0616 BOLTFLANGE |
91511-B0616 |
from US $0.84 |
||
| replacement | |||||
|
91511B0616
|
91511B0616
90080-10164 New Genuine Part |
90080-10164 |
US $2.67 |
||
|
9010510558
|
9010510558
90105-10558 BOLT FLANGE |
90105-10558 |
from US $0.84 |
||
|
9011910668
|
9011910668
90119-10668 BOLT WWASHER |
90119-10668 |
US $2.33 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.82 |
||
|
9017910037
|
9017910037
90179-10037 NUT |
90179-10037 |
from US $2.24 |
||
| replacement | |||||
|
9017910037
|
9017910037
90179-10128 NUT |
90179-10128 |
from US $1.43 |
||
|
9046112447
|
9046112447
90461-12447 Clamp, Exhaust Pipe |
90461-12447 |
US $8.96 |
||
|
9050135028
|
9050135028
90501-35028 Spring, Exhaust Pipe |
90501-35028 |
from US $3.14 |
||
|
9090105026
|
9090105026
90901-05026 Bolt, Exhaust Pipe Support |
90901-05026 |
from US $5.56 |
||
|
9155380830
|
9155380830
91553-80830 Bolt(For Transaxle & Engine Setting) |
91553-80830 |
US $1.43 |
||
|
9155381230
|
9155381230
91553-81230 BOLT FLANGE |
91553-81230 |
US $4.48 |
||
