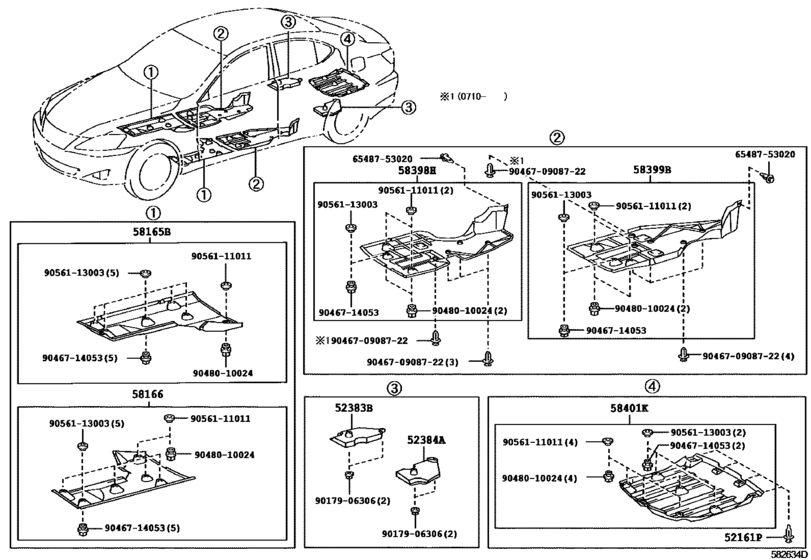

Floor Pan & Lower Back Panel ([04.2006 - ] FLOOR UNDER COVER (0604- )) Diagram Toyota LEXUS IS
- Year
- 2010 - 2013
- Sales region
- General
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- IS250
- From
- 08.2010
- To
- 04.2013
- Vehicle Model
- IS250
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52161P
|
52161P
52161-16010 Clip[08.2010 -] GSE2# |
52161-16010 |
from US $1.67 |
||
| replacements | |||||
|
52161P
|
52161P
52161-0K040 Clip[08.2010 -] GSE2# |
52161-0K040 |
from US $1.46 |
||
|
52161P
|
52161P
52161-02020 Clip[08.2010 -] GSE2# |
52161-02020 |
US $5.27 |
||
|
52383B
|
52383B
52383-30011 Protector, Differential Support, No.1[08.2010 -] GSE2# |
52383-30011 |
US $64.51 |
||
|
52384A
|
52384A
52384-30011 Protector, Differential Support, No.2[08.2010 -] GSE2# |
52384-30011 |
US $39.01 |
||
|
58165B
|
58165B
58165-53021 Cover, Front Floor, RhFRONT FLOOR, RH [08.2010 -] GSE2# |
58165-53021 |
US $172.06 |
||
|
58166
|
58166
58166-53021 Cover, Front Floor, LhFRONT FLOOR, LH [08.2010 -] GSE2# |
58166-53021 |
US $172.06 |
||
|
58398H
|
58398H
58398-53021 Cover, Floor Under, No.1FLOOR UNDER, NO.1 [08.2010 -] GSE2# |
58398-53021 |
US $223.16 |
||
|
58399B
|
58399B
58399-53021 Cover, Floor Under, No.2FLOOR UNDER, NO.2 [08.2010 -] GSE2# |
58399-53021 |
US $223.16 |
||
|
58401K
|
58401K
58401-53041 Board Sub-Assy, Rear Floor, No.1REAR FLOOR, NO.1 [08.2010 -] GSE2# |
58401-53041 |
US $138.32 |
||
|
6548753020
|
6548753020
65487-53020 Clip, Corner Protector |
65487-53020 |
from US $2.19 |
||
|
9017906306
|
9017906306
90179-06306 NUT |
90179-06306 |
US $2.15 |
||
|
9046714053
|
9046714053
90467-14053 Clip, No.1(For Floor Under Cover) |
90467-14053 |
from US $1.10 |
||
|
9048010024
|
9048010024
90480-10024 Clip, No.2(For Floor Under Cover) |
90480-10024 |
from US $1.79 |
||
|
9056111011
|
9056111011
90561-11011 Clip, No.1(For Floor Under Cover) |
90561-11011 |
from US $1.25 |
||
|
9056113003
|
9056113003
90561-13003 Clip, No.4(For Floor Under Cover) |
90561-13003 |
US $1.25 |
||
|
904670908722
|
904670908722
90467-09087-22 Clip |
90467-09087-22 |
from US $0.68 |
||
