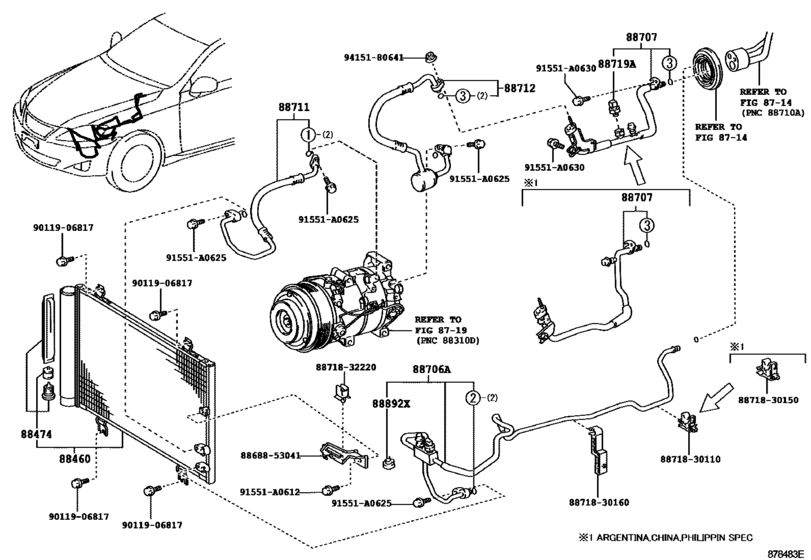

Heating & Air Conditioning - Cooler Piping ([04.2006 - ] (0604- )GCC) Diagram Toyota LEXUS IS
- Year
- 2010 - 2013
- Sales region
- General
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- IS250
- From
- 08.2010
- To
- 04.2013
- Vehicle Model
- IS250
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88460
|
88460
88460-53050
Condenser Assy, Cooler
[08.2010 - 04.2013] GSE2# |
88460-53050 |
— | ||
|
88474
|
88474
88474-17010 Dryer, Cooler[08.2010 -] GSE2# |
88474-17010 |
from US $60.10 |
||
|
88706A
|
88706A
88706-53080 Tube Sub-Assy, Liquid, A[08.2010 -] GSE2# |
88706-53080 |
US $340.70 |
||
|
88707
|
88707
88707-53050 Pipe Sub-Assy, Suction[08.2010 -] GSE22..GEN; GSE22..GCC PHILIPPINE SPEC; GSE20 CHINA SPEC |
88707-53050 |
US $133.95 |
||
|
88707
|
88707
88707-53080
Pipe Sub-Assy, Suction
[08.2010 -] GSE2#..GCC |
88707-53080 |
— | ||
|
88711
|
88711
88711-53090
Hose, Cooler Refrigerant Discharge, No.1
[08.2010 -] GSE2#..GCC |
88711-53090 |
— | ||
|
88711
|
88711
88711-53100
Hose, Cooler Refrigerant Discharge, No.1
[08.2010 -] GSE22..GEN; GSE22..GCC PHILIPPINE SPEC; GSE20 CHINA SPEC |
88711-53100 |
— | ||
|
88712
|
88712
88712-53100 Hose, Cooler Refrigerant Suction, No.1[08.2010 -] GSE22..GEN; GSE22..GCC PHILIPPINE SPEC; GSE20 CHINA SPEC |
88712-53100 |
US $148.51 |
||
|
88712
|
88712
88712-53130
Hose, Cooler Refrigerant Suction, No.1
[08.2010 -] GSE2#..GCC |
88712-53130 |
— | ||
|
88719A
|
88719A
88719-26020 Sensor, Airconditioner PressureAIRCONDITIONER PRESSURE [08.2010 -] GSE2#..GCC |
88719-26020 |
US $170.72 |
||
|
88892X
|
88892X
88892-50120
Cover, Cooler, No.2
[08.2010 -] GSE2# |
88892-50120 |
— | ||
|
91551A0612
|
91551A0612
91551-A0612 New Genuine Part |
91551-A0612 |
US $1.08 |
||
|
91551A0625
|
91551A0625
91551-A0625 Bolt(For Cylinder Head Cover) |
91551-A0625 |
US $1.08 |
||
|
91551A0630
|
91551A0630
91551-A0630 New Genuine Part |
91551-A0630 |
US $1.08 |
||
|
8868853041
|
8868853041
88688-53041
Bracket, Cooler Diaphragm
|
88688-53041 |
— | ||
|
8871830110
|
8871830110
88718-30110
Clamp(For Cooler Refrigerant Pipe), No.1
|
88718-30110 |
— | ||
|
8871830150
|
8871830150
88718-30150
Clamp(For Cooler Refrigerant Pipe), No.1
|
88718-30150 |
— | ||
|
8871830160
|
8871830160
88718-30160 Pipe, Cooler Refrigerant Suction, No.2 |
88718-30160 |
US $2.62 |
||
|
8871832220
|
8871832220
88718-32220 Clamp(For Cooler Refrigerant Pipe), No.2 |
88718-32220 |
from US $1.43 |
||
|
9011906817
|
9011906817
90119-06817 BOLT WWASHER |
90119-06817 |
from US $0.84 |
||
|
9415180641
|
9415180641
94151-80641 NUT FLANGE |
94151-80641 |
from US $0.95 |
