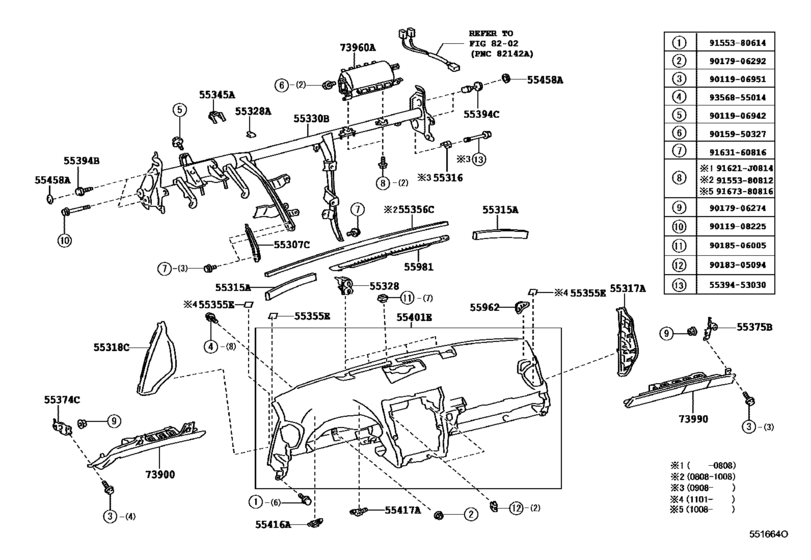

Instrument Panel & Glove Compartment ([01.2008 - ] (0801- )GCC) Diagram Toyota LEXUS IS
- Year
- 2010 - 2013
- Sales region
- General
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- IS250
- From
- 08.2010
- To
- 04.2013
- Vehicle Model
- IS250
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55307C
|
55307C
55352-53040 Brace Sub-Assy, Instrument Panel, No.2[08.2010 -] GSE2# |
55352-53040 |
US $8.01 |
||
|
55315A
|
55315A
55315-53010 Spacer, Instrument Panel, No.1[08.2010 -] GSE2# |
55315-53010 |
US $6.45 |
||
|
55316
|
55316
55315-53040 Spacer, Instrument Panel, No.1INSTRUMENT PANEL, NO.2 [08.2010 - 04.2013] GSE2# |
55315-53040 |
US $3.64 |
||
|
55317A
|
55317A
55317-53070-C0 Panel, Instrument Side, Rh[08.2010 - 04.2013] GSE22..GCC BLACK,TRIM1#,2#,4#; GSE20;GSE22..GEN BLACK,TRIM1#,2# |
55317-53070-C0 |
US $39.85 |
||
|
55317A
|
55317A
55317-53070-E0 Panel, Instrument Side, Rh[08.2010 - 04.2013] GSE2# ORCHID BROWN,TRIM0# |
55317-53070-E0 |
US $46.74 |
||
|
55318C
|
55318C
55318-53040-C0 Panel, Instrument Side, Lh[08.2010 - 04.2013] GSE22..GCC BLACK,TRIM1#,2#,4#; GSE20;GSE22..GEN BLACK,TRIM1#,2# |
55318-53040-C0 |
US $38.88 |
||
|
55318C
|
55318C
55318-53040-E0 Panel, Instrument Side, Lh[08.2010 - 04.2013] GSE2# ORCHID BROWN,TRIM0# |
55318-53040-E0 |
US $46.74 |
||
|
55328
|
55328
55328-30140 Pin, Instrument Panel, No.1[08.2010 -] GSE2# |
55328-30140 |
US $4.66 |
||
|
55328A
|
55328A
55328-48110 Stay, Instrument Panel, No.3INSTRUMENT PANEL, NO.3 [10.2010 -] GSE2# |
55328-48110 |
US $2.87 |
||
|
55328A
|
55328A
55328-50170 Stay, Instrument Panel, No.3[08.2010 - 09.2010] GSE2# |
55328-50170 |
US $1.46 |
||
|
55330B
|
55330B
55330-53270
Reinforcement Assy, Instrument Panel
[08.2010 -] GSE2#..GCC |
55330-53270 |
— | ||
|
55330B
|
55330B
55330-53310
Reinforcement Assy, Instrument Panel
[08.2010 - 08.2011] GSE20 ART WORKS |
55330-53310 |
— | ||
|
55345A
|
55345A
55345-30060 Clip, Instrument Panel, No.1[08.2010 -] GSE2# |
55345-30060 |
US $3.72 |
||
|
55355E
|
55355E
55355-53050 Cushion, Instrument Panel[08.2010 - 01.2011] GSE2# |
55355-53050 |
US $1.08 |
||
|
55356C
|
55356C
55355-53040 Cushion, Instrument Panel, No.2[08.2010 -] GSE2# |
55355-53040 |
US $17.56 |
||
|
55374C
|
55374C
55374-53020 Bracket, Instrument Panel Lower Mounting, No.1INSTRUMENT PANEL LOWER MOUNTING, NO.1 [08.2010 -] GSE2#..GCC |
55374-53020 |
US $10.63 |
||
|
55375B
|
55375B
55375-53050 Bracket, Instrument Panel Lower Mounting, No.2INSTRUMENT PANEL LOWER MOUNTING, NO.2 [08.2010 -] GSE2#..GCC |
55375-53050 |
US $11.50 |
||
|
55394B
|
55394B
55394-30021 Bolt, Instrument Panel[08.2010 -] GSE2# |
55394-30021 |
US $1.31 |
||
|
55394C
|
55394C
55394-33041 Bolt, Instrument Panel[08.2010 -] GSE2# |
55394-33041 |
US $2.77 |
||
|
55401E
|
55401E
55400-53906-C0
Pad Sub-Assy, Instrument Panel Safety
[08.2010 -] GSE2#..GCC BLACK,TRIM1#,2# |
55400-53906-C0 |
— | ||
| replacement | |||||
|
55401E
|
55401E
55400-53909-C0
PAD ASSY, INSTRUMENT
[08.2010 -] GSE2#..GCC BLACK,TRIM1#,2# |
55400-53909-C0 |
— | ||
|
55401E
|
55401E
55400-53906-E0
Pad Sub-Assy, Instrument Panel Safety
[08.2010 -] GSE2#..GCC ORCHID BROWN,TRIM0# |
55400-53906-E0 |
— | ||
|
55416A
|
55416A
55416-30150 Retainer, Meter Hood, No.1[08.2010 -] GSE2# |
55416-30150 |
US $6.12 |
||
|
55417A
|
55417A
55417-30070 Retainer, Meter Hood, No.2[08.2010 -] GSE2# |
55417-30070 |
US $6.12 |
||
|
55458A
|
55458A
55458-50100 Cap, Instrument Panel Safety Pad[08.2010 -] GSE2# |
55458-50100 |
US $2.87 |
||
|
55962
|
55962
55962-53020-C0 Nozzle, Side Defroster, No.2SIDE DEFROSTER, NO.2 [08.2010 - 04.2013] GSE22..GCC BLACK,TRIM1#,2#,4#; GSE20 BLACK,TRIM1#,2# |
55962-53020-C0 |
US $4.51 |
||
|
55962
|
55962
55962-53020-E0
Nozzle, Side Defroster, No.2
[08.2010 - 04.2013] GSE2#..GCC ORCHID BROWN,TRIM0# |
55962-53020-E0 |
— | ||
|
55981
|
55981
55981-53010-C0 Garnish, Defroster Nozzle, No.1[08.2010 - 04.2013] GSE22..GCC BLACK,TRIM1#,2#,4#; GSE20;GSE22..GEN BLACK,TRIM1#,2# |
55981-53010-C0 |
US $24.46 |
||
|
55981
|
55981
55981-53010-E0 Garnish, Defroster Nozzle, No.1[08.2010 - 04.2013] GSE2# ORCHID BROWN,TRIM0# |
55981-53010-E0 |
US $29.41 |
||
|
73900
|
73900
73900-53020-A0
Air Bag Assy, Instrument Panel, Lower No.1
[08.2010 - 04.2013] GSE20 IVORY,TRIM02 |
73900-53020-A0 |
— | ||
|
73900
|
73900
73900-53020-A1
Air Bag Assy, Instrument Panel, Lower No.1
[08.2010 - 04.2013] GSE22..GCC ECRU,TRIM0#; GSE20 ECRU,TRIM00,03 |
73900-53020-A1 |
— | ||
|
73900
|
73900
73900-53020-B1
Air Bag Assy, Instrument Panel, Lower No.1
[08.2010 - 04.2013] GSE2#..GCC LT.GRAY,TRIM1# |
73900-53020-B1 |
— | ||
|
73900
|
73900
73900-53020-C0
Air Bag Assy, Instrument Panel, Lower No.1
[08.2010 - 04.2013] GSE22..GCC BLACK,TRIM2#,4#; GSE20 BLACK,TRIM2# |
73900-53020-C0 |
— | ||
|
73960A
|
73960A
73960-53060
Air Bag Assy, Instrument Panel Passenger W/o Door
[08.2010 - 04.2013] GSE2#..GCC |
73960-53060 |
— | ||
| replacement | |||||
|
73960A
|
73960A
73960-53190
Air Bag Assy, Instrument Panel Passenger W/o Door
[08.2010 - 04.2013] GSE2#..GCC |
73960-53190 |
— | ||
|
73990
|
73990
73990-53020-A0 Air Bag Assy, Instrument Panel, Lower No.2INSTRUMENT PANEL, LOWER NO.2 [08.2010 - 04.2013] GSE20 IVORY,TRIM02 |
73990-53020-A0 |
US $419.33 |
||
|
73990
|
73990
73990-53020-A1
Air Bag Assy, Instrument Panel, Lower No.2
[08.2010 - 04.2013] GSE22..GCC ECRU,TRIM0#; GSE20 ECRU,TRIM00,03 |
73990-53020-A1 |
— | ||
|
73990
|
73990
73990-53020-B1
Air Bag Assy, Instrument Panel, Lower No.2
[08.2010 - 04.2013] GSE2#..GCC LT.GRAY,TRIM1# |
73990-53020-B1 |
— | ||
|
73990
|
73990
73990-53020-C0
Air Bag Assy, Instrument Panel, Lower No.2
[08.2010 - 04.2013] GSE22..GCC BLACK,TRIM2#,4#; GSE20 BLACK,TRIM2# |
73990-53020-C0 |
— | ||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
US $1.08 |
||
|
5539453030
|
5539453030
55394-53030 New Genuine Part |
55394-53030 |
US $5.53 |
||
|
9011906942
|
9011906942
90119-06942 BOLT WWASHER |
90119-06942 |
US $1.08 |
||
|
9011906951
|
9011906951
90119-06951 BOLT WWASHER |
90119-06951 |
US $1.43 |
||
|
9011908225
|
9011908225
90119-08225
BOLT
|
90119-08225 |
— | ||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
US $1.25 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $1.25 |
||
|
9017906292
|
9017906292
90179-06292 NUT |
90179-06292 |
US $1.79 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
US $1.61 |
||
|
9018506005
|
9018506005
90185-06005 New Genuine Part |
90185-06005 |
US $3.40 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $1.08 |
||
|
9155380812
|
9155380812
91553-80812 New Genuine Part |
91553-80812 |
US $1.43 |
||
|
9163160816
|
9163160816
91631-60816 BOLT |
91631-60816 |
US $2.87 |
||
|
9167380816
|
9167380816
91673-80816 Bolt (For Transmission Control Cable Bracket) |
91673-80816 |
US $1.43 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $1.25 |
||
