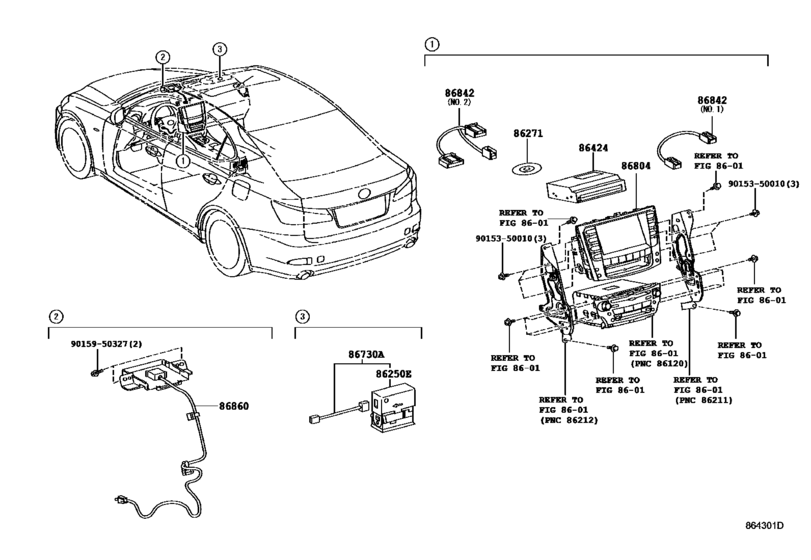

Navigation & Front Monitor Display ([08.2009 - 08.2012] DVD NAVIGATION SYSTEM (0908-1208)) Diagram Toyota LEXUS IS
- Year
- 2010 - 2013
- Sales region
- General
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- IS250
- From
- 08.2010
- To
- 04.2013
- Vehicle Model
- IS250
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86271
|
86271
86271-48093
Disc, Disc Player
[08.2010 - 08.2011] GSE2#..GCC AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(DVD NAVI GATION) |
86271-48093 |
— | ||
| replacement | |||||
|
86271
|
86271
86271-48186
DISC, DISC PLAYER
[08.2010 - 08.2011] GSE2#..GCC AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(DVD NAVI GATION) |
86271-48186 |
— | ||
|
86271
|
86271
86271-48181
Disc, Disc Player
[08.2011 - 07.2012] GSE2#..GCC AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(DVD NAVI GATION) |
86271-48181 |
— | ||
| replacement | |||||
|
86271
|
86271
86271-48186
DISC, DISC PLAYER
[08.2011 - 07.2012] GSE2#..GCC AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(DVD NAVI GATION) |
86271-48186 |
— | ||
|
86271
|
86271
86271-48182
Disc, Disc Player
[07.2012 - 08.2012] GSE2#..GCC AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(DVD NAVI GATION) |
86271-48182 |
— | ||
| replacement | |||||
|
86271
|
86271
86271-48186
DISC, DISC PLAYER
[07.2012 - 08.2012] GSE2#..GCC AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(DVD NAVI GATION) |
86271-48186 |
— | ||
|
86424
|
86424
86424-53010
Deck, Dvd
[08.2010 - 08.2012] GSE22..GCC PHILIPPINE SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-W ITH(DVD NAVIGATION); GSE22..GCC PHILIPPINE SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYST EM-WITH(DVD NAVIGATION); G |
86424-53010 |
— | ||
|
86730A
|
86730A
86730-53040
Microphone Assy, Telephone
[08.2010 - 08.2011] GSE2#..GCC CAR TELEPHONE-BLUETOOTH TEL |
86730-53040 |
— | ||
|
86804
|
86804
86804-53440
Cover Sub-Assy, Navigation Computer
[08.2010 - 08.2011] GSE2#..GCC AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(DVD NAVI GATION) |
86804-53440 |
— | ||
|
86804
|
86804
86804-53700
Cover Sub-Assy, Navigation Computer
[08.2010 - 07.2011] GSE20 CHINA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(H DD NAVIGATION); GSE20 CHINA SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WI TH(HDD NAVIGATION) |
86804-53700 |
— | ||
|
86804
|
86804
86804-53820
Cover Sub-Assy, Navigation Computer
[08.2011 - 08.2012] GSE2#..GCC AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(DVD NAVI GATION) |
86804-53820 |
— | ||
|
86804
|
86804
86804-53890
Cover Sub-Assy, Navigation Computer
[11.2011 - 08.2012] GSE20 CHINA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(H DD NAVIGATION); GSE20 CHINA SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WI TH(HDD NAVIGATION) |
86804-53890 |
— | ||
|
86804
|
86804
86804-53D10
Cover Sub-Assy, Navigation Computer
[07.2011 - 08.2011] GSE20 CHINA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(H DD NAVIGATION); GSE20 CHINA SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WI TH(HDD NAVIGATION) |
86804-53D10 |
— | ||
|
86804
|
86804
86804-53D20
Cover Sub-Assy, Navigation Computer
[08.2011 - 11.2011] GSE20 CHINA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(H DD NAVIGATION); GSE20 CHINA SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WI TH(HDD NAVIGATION) |
86804-53D20 |
— | ||
|
86842
|
86842
86842-53070
Wire, Navigation, No.1
[08.2010 - 08.2012] GSE20 CHINA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(H DD NAVIGATION); GSE20 CHINA SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WI TH(HDD NAVIGATION) |
86842-53070 |
— | ||
|
86842
|
86842
86842-53080
Wire, Navigation, No.1
[08.2010 - 08.2012] GSE22..GCC PHILIPPINE SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-W ITH(DVD NAVIGATION),NO.1; GSE22..GCC PHILIPPINE SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYST EM-WITH(DVD NAVIGATIO |
86842-53080 |
— | ||
|
86842
|
86842
86842-53090
Wire, Navigation, No.1
[08.2010 - 08.2012] GSE22..GCC PHILIPPINE SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-W ITH(DVD NAVIGATION),NO.2; GSE22..GCC PHILIPPINE SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYST EM-WITH(DVD NAVIGATIO |
86842-53090 |
— | ||
|
86842
|
86842
86842-53200 Wire, Navigation, No.1[08.2012 - 04.2013] GSE22..GEN AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE2# AUDIO-AM/FM DVD 13SPEAKER; GSE22..GCC PHILIPPINE SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE20 CHINA SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE20 CHINA SPEC&AUDIO-AM/FM DVD 13SPEAKER |
86842-53200 |
US $48.78 |
||
|
86860
|
86860
86860-53050 Antenna Assy, NavigationNAVIGATION [08.2010 - 08.2012] GSE22..GCC PHILIPPINE SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER; GSE20 CHINA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER; GSE2#..GCC AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
86860-53050 |
US $151.42 |
||
|
86860
|
86860
86860-53100
Antenna Assy, Navigation
[08.2012 -] GSE2#..GCC AUDIO-AM/FM DVD 13SPEAKER; GSE22..GCC PHILIPPINE SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE20 CHINA SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
86860-53100 |
— | ||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.68 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.70 |
||
