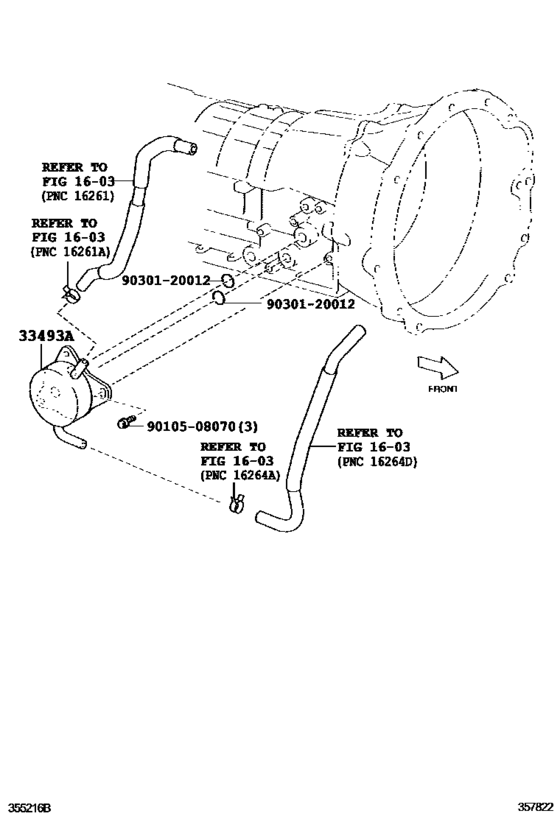

Oil Cooler & Tube (Atm) ([08.2010 - ] A960E (1008- )GSE20) Diagram Toyota LEXUS IS
- Year
- 2010 - 2013
- Sales region
- General
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- IS250
- From
- 08.2010
- To
- 04.2013
- Vehicle Model
- IS250
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33493A
|
33493A
33493-30020 Cooler, Transmission Oil[08.2010 - 04.2013] GSE2# |
33493-30020 |
US $169.60 |
||
|
9010508070
|
9010508070
90105-08070 Bolt (For Pawl Stopper Plate) |
90105-08070 |
US $1.31 |
||
|
9030120012
|
9030120012
90301-20012 Ring, O (For Transmission Oil Cooler) |
90301-20012 |
from US $2.47 |
