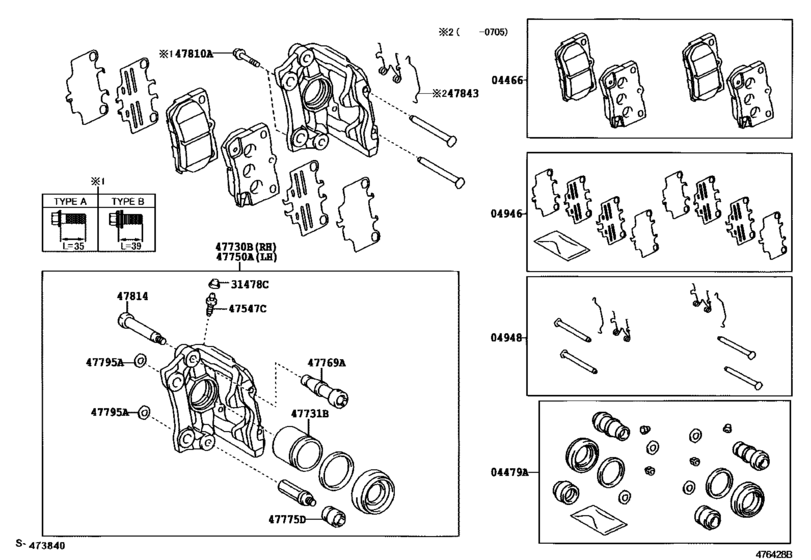

Rear Disc Brake Caliper & Dust Cover ([04.2006 - ] (0604- )) Diagram Toyota LEXUS IS
- Year
- 2010 - 2013
- Sales region
- General
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- IS250
- From
- 08.2010
- To
- 04.2013
- Vehicle Model
- IS250
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04466
|
04466
04466-22190 Pad Kit, Disc Brake, Rear[08.2010 -] GSE2#..GCC MARK NBK PN529H |
04466-22190 |
from US $106.08 |
||
|
04466
|
04466
04466-53010 Pad Kit, Disc Brake, Rear[08.2010 -] GSE22..GEN MARK NBK PN529H; GSE22..GCC MARK NBK PN529H,PHILIPPINE SPEC; GSE22..GCC MARK NBK PN529H,BRAZIL SPEC; GSE20 MARK NBK PN529H,CHINA SPEC |
04466-53010 |
from US $94.64 |
||
|
04479A
|
04479A
04479-30510
Cylinder Kit, Disc Brake, Rear
[08.2010 - 04.2011] GSE20;GSE22..GEN; GSE22..GCC PHILIPPINE SPEC; GSE22..GCC BRAZIL SPEC |
04479-30510 |
— | ||
| replacement | |||||
|
04479A
|
04479A
04479-53070 Cylinder Kit, Disc Brake, Rear[08.2010 - 04.2011] GSE20;GSE22..GEN; GSE22..GCC PHILIPPINE SPEC; GSE22..GCC BRAZIL SPEC |
04479-53070 |
US $73.92 |
||
|
04479A
|
04479A
04479-53070 Cylinder Kit, Disc Brake, Rear[04.2011 -] GSE20;GSE22..GEN; GSE22..GCC PHILIPPINE SPEC; GSE22..GCC BRAZIL SPEC |
04479-53070 |
US $73.92 |
||
|
04946
|
04946
04946-30110 Shim Kit, Anti Squeal(For Rear Disc Brake)[08.2010 -] GSE20;GSE22..GEN; GSE22..GCC PHILIPPINE SPEC; GSE22..GCC BRAZIL SPEC |
04946-30110 |
from US $35.28 |
||
|
04948
|
04948
04948-30210 Fitting Kit, Disc Brake, Rear[08.2010 -] GSE2#..GCC |
04948-30210 |
from US $41.33 |
||
|
04948
|
04948
04948-30220 Fitting Kit, Disc Brake, Rear[08.2010 -] GSE22..GEN; GSE22..GCC PHILIPPINE SPEC; GSE22..GCC BRAZIL SPEC; GSE20 CHINA SPEC |
04948-30220 |
from US $38.10 |
||
|
31478C
|
31478C
31478-30010 Bleeder Plug Cap[08.2010 - 04.2013] GSE2# |
31478-30010 |
from US $1.48 |
||
|
47547C
|
47547C
47547-27030 Plug, Bleeder(For Front Disc Brake)[08.2010 - 04.2013] GSE2# |
47547-27030 |
from US $3.02 |
||
|
47730B
|
47730B
47830-53051 Cylinder Assy, Rear Disc Brake, Rh[08.2010 - 12.2012] GSE22..GEN PNC 47810A=TYPE A; GSE22..GCC PHILIPPINE SPEC,PNC 47810A=TYPE A; GSE22..GCC BRAZIL SPEC,PNC 47810A=TYPE A; GSE20 CHINA SPEC,PNC 47810A=TYPE A |
47830-53051 |
US $533.52 |
||
|
47730B
|
47730B
47830-53052 Cylinder Assy, Rear Disc Brake, Rh[12.2012 - 04.2013] GSE22..GEN PNC 47810A=TYPE B; GSE22..GCC PHILIPPINE SPEC,PNC 47810A=TYPE B; GSE22..GCC BRAZIL SPEC,PNC 47810A=TYPE B; GSE20 CHINA SPEC,PNC 47810A=TYPE B |
47830-53052 |
US $647.40 |
||
|
47730B
|
47730B
47830-53070 Cylinder Assy, Rear Disc Brake, RhREAR DISC BRAKE, RH [08.2010 - 12.2012] GSE20 PNC 47810A=TYPE A |
47830-53070 |
US $531.96 |
||
|
47730B
|
47730B
47830-53071 Cylinder Assy, Rear Disc Brake, Rh[12.2012 - 04.2013] GSE20 PNC 47810A=TYPE B |
47830-53071 |
US $387.30 |
||
|
47731B
|
47731B
47831-30300 Piston, Rear Disc Brake[08.2010 - 04.2013] GSE20;GSE22..GEN; GSE22..GCC PHILIPPINE SPEC; GSE22..GCC BRAZIL SPEC |
47831-30300 |
US $48.72 |
||
|
47750A
|
47750A
47850-53051 Cylinder Assy, Disc Brake, Rear Lh[08.2010 - 12.2012] GSE22..GEN PNC 47810A=TYPE A; GSE22..GCC PHILIPPINE SPEC,PNC 47810A=TYPE A; GSE22..GCC BRAZIL SPEC,PNC 47810A=TYPE A; GSE20 CHINA SPEC,PNC 47810A=TYPE A |
47850-53051 |
US $533.52 |
||
|
47750A
|
47750A
47850-53052 Cylinder Assy, Disc Brake, Rear Lh[12.2012 - 04.2013] GSE22..GEN PNC 47810A=TYPE B; GSE22..GCC PHILIPPINE SPEC,PNC 47810A=TYPE B; GSE22..GCC BRAZIL SPEC,PNC 47810A=TYPE B; GSE20 CHINA SPEC,PNC 47810A=TYPE B |
47850-53052 |
US $647.40 |
||
|
47750A
|
47750A
47850-53070 Cylinder Assy, Disc Brake, Rear LhDISC BRAKE, REAR LH [08.2010 - 12.2012] GSE20 PNC 47810A=TYPE A |
47850-53070 |
US $531.96 |
||
|
47750A
|
47750A
47850-53071 Cylinder Assy, Disc Brake, Rear Lh[12.2012 - 04.2013] GSE20 PNC 47810A=TYPE B |
47850-53071 |
US $387.30 |
||
|
47769A
|
47769A
47879-30300 Bush, Cylinder Slide, No.1(For Rear Disc Brake)[08.2010 - 04.2013] GSE2# |
47879-30300 |
from US $5.05 |
||
|
47775D
|
47775D
47875-30340 Boot, Bush Dust(For Rear Disc Brake)[08.2010 - 04.2011] GSE2# |
47875-30340 |
US $4.95 |
||
| replacement | |||||
|
47775D
|
47775D
47875-30341 Boot, Bush Dust(For Rear Disc Brake)[08.2010 - 04.2011] GSE2# |
47875-30341 |
from US $3.19 |
||
|
47775D
|
47775D
47875-30341 Boot, Bush Dust(For Rear Disc Brake)[04.2011 - 04.2013] GSE2# |
47875-30341 |
from US $3.19 |
||
|
47795A
|
47795A
47895-30300 Plate, Rear Disc Brake Caliper, No.1[08.2010 - 04.2013] GSE2# |
47895-30300 |
US $5.02 |
||
|
47810A
|
47810A
90105-10525 Bolt, Hexagon(For Rear Caliper)[08.2010 - 12.2012] GSE2# TYPE A:REFER ILLUST. |
90105-10525 |
US $4.66 |
||
|
47810A
|
47810A
90119-12416 Bolt, Hexagon(For Rear Caliper)[12.2012 -] GSE2# TYPE B:REFER ILLUST. |
90119-12416 |
US $4.48 |
||
|
47814
|
47814
47814-30300 Pin, Cylinder Slide, No.1(For Rear Disc Brake)[08.2010 - 04.2013] GSE2# |
47814-30300 |
from US $8.21 |
||
