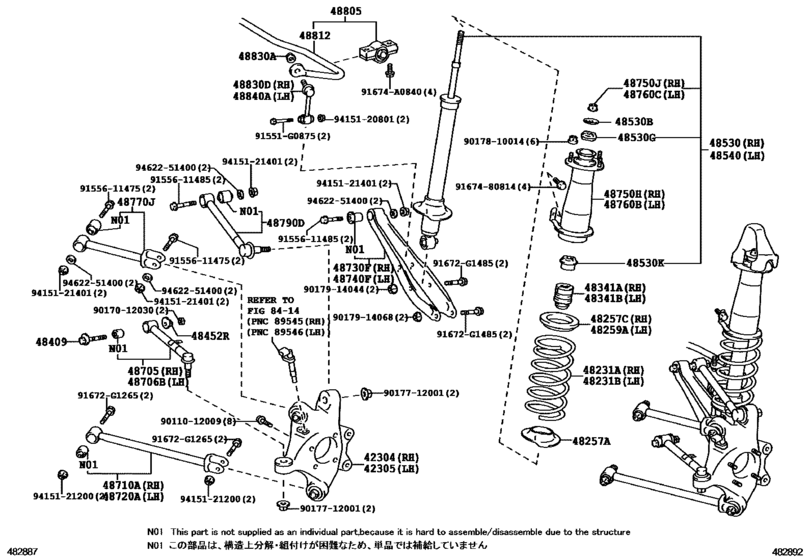

Rear Spring & Shock Absorber ([08.2008 - ] (0808- )) Diagram Toyota LEXUS IS
- Year
- 2010 - 2013
- Sales region
- General
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- IS250
- From
- 08.2010
- To
- 04.2013
- Vehicle Model
- IS250
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42304
|
42304
42304-30090 Carrier Sub-Assy, Rear Axle, Rh[08.2010 - 12.2012] GSE2# |
42304-30090 |
US $329.06 |
||
| replacement | |||||
|
42304
|
42304
42304-30110 Carrier Sub-Assy, Rear Axle, Rh[08.2010 - 12.2012] GSE2# |
42304-30110 |
US $460.20 |
||
|
42304
|
42304
42304-53030 Carrier Sub-Assy, Rear Axle, Rh[12.2012 - 04.2013] GSE2# |
42304-53030 |
US $329.06 |
||
| replacement | |||||
|
42304
|
42304
42304-30150 Carrier Sub-Assy, Rear Axle, Rh[12.2012 - 04.2013] GSE2# |
42304-30150 |
US $275.18 |
||
|
42305
|
42305
42305-30090
Carrier Sub-Assy, Rear Axle, Lh
[08.2010 - 12.2012] GSE2# |
42305-30090 |
— | ||
| replacement | |||||
|
42305
|
42305
42305-30110 Carrier Sub-Assy, Rear Axle, Lh[08.2010 - 12.2012] GSE2# |
42305-30110 |
US $460.20 |
||
|
42305
|
42305
42305-53030 Carrier Sub-Assy, Rear Axle, Lh[12.2012 - 04.2013] GSE2# |
42305-53030 |
US $329.06 |
||
| replacement | |||||
|
42305
|
42305
42305-30150 Carrier Sub-Assy, Rear Axle, Lh[12.2012 - 04.2013] GSE2# |
42305-30150 |
US $460.20 |
||
|
48231A
|
48231A
48231-53181 Spring, Coil, Rear Rh[08.2010 -] GSE2#..GCC; GSE22..GEN BRUNEI SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN |
48231-53181 |
US $104.83 |
||
|
48231B
|
48231B
48231-53181 Spring, Coil, Rear Rh[08.2010 -] GSE2#..GCC; GSE22..GEN BRUNEI SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN |
48231-53181 |
US $104.83 |
||
|
48257A
|
48257A
48158-30020 Insulator, Front Coil Spring, Lower[08.2010 -] GSE2# |
48158-30020 |
US $5.38 |
||
|
48257C
|
48257C
48257-30070 Insulator, Rear Coil Spring, Upper Rh[08.2010 -] GSE2# |
48257-30070 |
US $9.68 |
||
|
48259A
|
48259A
48257-30070 Insulator, Rear Coil Spring, Upper Rh[08.2010 -] GSE2# |
48257-30070 |
US $9.68 |
||
|
48341A
|
48341A
48341-30110 Bumper, Rear Spring, No.1 Rh[08.2010 -] GSE2#..GCC; GSE22..GEN TIRE & DISC WHEEL-225/45R17+245/45R17,GEN |
48341-30110 |
US $38.64 |
||
|
48341B
|
48341B
48341-30110 Bumper, Rear Spring, No.1 Rh[08.2010 -] GSE2#..GCC; GSE22..GEN TIRE & DISC WHEEL-225/45R17+245/45R17,GEN |
48341-30110 |
US $38.64 |
||
|
48409
|
48409
48409-30020 Cam Sub-Assy, Rear Suspension Toe Adjust[08.2010 -] GSE2# |
48409-30020 |
US $12.54 |
||
|
48452R
|
48452R
48452-30040 Plate, Rear Suspension Toe Adjust, No.2[08.2010 -] GSE2# |
48452-30040 |
US $7.17 |
||
|
48530
|
48530
48530-80506 Absorber Assy, Shock, Rear[08.2010 -] GSE2#..GCC MARK 48530-53240; GSE22..GEN MARK 48530-53240,BRUNEI SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN |
48530-80506 |
US $474.24 |
||
|
48530
|
48530
48530-80508
Absorber Assy, Shock, Rear Rh
[08.2010 -] GSE20 MARK 48530-53260,CHINA SPEC |
48530-80508 |
— | ||
|
48530B
|
48530B
90948-03021 Washer, Rear Shock Absorber Cushion, No.1[08.2010 -] GSE2# |
90948-03021 |
US $5.02 |
||
|
48530G
|
48530G
90948-01089 Cushion, Rear Shock Absorber, No.1[08.2010 -] GSE2# |
90948-01089 |
US $11.29 |
||
|
48530K
|
48530K
90948-01090 Cushion, Rear Shock Absorber, No.2[08.2010 -] GSE2# |
90948-01090 |
US $17.92 |
||
|
48540
|
48540
48530-80506 Absorber Assy, Shock, Rear[08.2010 -] GSE2#..GCC MARK 48530-53240; GSE22..GEN MARK 48530-53240,BRUNEI SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN |
48530-80506 |
US $474.24 |
||
|
48540
|
48540
48530-80508
Absorber Assy, Shock, Rear Rh
[08.2010 -] GSE20 MARK 48530-53260,CHINA SPEC |
48530-80508 |
— | ||
|
48705
|
48705
48705-53020 Link Sub-Assy, Toe Control, Rh[08.2010 -] GSE2# |
48705-53020 |
US $64.01 |
||
|
48706B
|
48706B
48706-53020 Link Sub-Assy, Toe Control, Lh[08.2010 -] GSE2# |
48706-53020 |
US $64.01 |
||
|
48710A
|
48710A
48710-53020 Arm Assy, Rear Suspension, No.1 Rh[08.2010 -] GSE2# |
48710-53020 |
US $123 |
||
|
48720A
|
48720A
48710-53020 Arm Assy, Rear Suspension, No.1 Rh[08.2010 -] GSE2# |
48710-53020 |
US $123 |
||
|
48730F
|
48730F
48730-30090 Arm Assy, Rear Suspension, No.2 Rh[08.2010 -] GSE2# |
48730-30090 |
US $116.44 |
||
|
48740F
|
48740F
48740-30110 Arm Assy, Rear Suspension, No.2 Lh[08.2010 -] GSE2# |
48740-30110 |
US $107.32 |
||
|
48750H
|
48750H
48750-30150 Support Assy, Rear Suspension[08.2010 -] GSE2# |
48750-30150 |
US $161.60 |
||
|
48750J
|
48750J
90179-12127 Nut[08.2010 -] GSE2# |
90179-12127 |
US $1.79 |
||
| replacement | |||||
|
48750J
|
48750J
90178-A0071 New Genuine Part[08.2010 -] GSE2# |
90178-A0071 |
US $3.02 |
||
|
48760B
|
48760B
48750-30150 Support Assy, Rear Suspension[08.2010 -] GSE2# |
48750-30150 |
US $161.60 |
||
|
48760C
|
48760C
90179-12127 Nut[08.2010 -] GSE2# |
90179-12127 |
US $1.79 |
||
| replacement | |||||
|
48760C
|
48760C
90178-A0071 New Genuine Part[08.2010 -] GSE2# |
90178-A0071 |
US $3.02 |
||
|
48770J
|
48770J
48770-30090 Arm Assy, Upper Control, Rear No.1[08.2010 -] GSE2# |
48770-30090 |
US $100.46 |
||
| replacement | |||||
|
48770J
|
48770J
48770-30110 Arm Assy, Upper Control, Rear No.1[08.2010 -] GSE2# |
48770-30110 |
US $123 |
||
|
48790D
|
48790D
48790-53030 Arm Assy, Upper Control, Rear No.2[08.2010 -] GSE2# |
48790-53030 |
US $159.08 |
||
|
48805
|
48805
48805-53010 Bar Sub-Assy, Rear Stabilizer[08.2010 -] GSE2# |
48805-53010 |
US $103.38 |
||
|
48812
|
48812
48812-53080 Bar, Stabilizer, Rear[08.2010 -] GSE2# |
48812-53080 |
US $90.27 |
||
|
48830A
|
48830A
90179-12151 Nut(For Front Stabilizer Link)[08.2010 -] GSE2# |
90179-12151 |
US $1.79 |
||
|
48830D
|
48830D
48830-30090 Link Assy, Rear Stabilizer, Rh[08.2010 -] GSE2# |
48830-30090 |
US $78.29 |
||
|
48840A
|
48840A
48830-30090 Link Assy, Rear Stabilizer, Rh[08.2010 -] GSE2# |
48830-30090 |
US $78.29 |
||
|
91551G0875
|
91551G0875
91551-G0875 Bolt |
91551-G0875 |
US $3.05 |
||
|
91672G1265
|
91672G1265
91672-G1265 BOLT FLANGE |
91672-G1265 |
US $5.91 |
||
|
91672G1485
|
91672G1485
91672-G1485 BOLT FLANGE |
91672-G1485 |
US $6.45 |
||
|
91674A0840
|
91674A0840
91674-A0840 New Genuine Part |
91674-A0840 |
US $1.31 |
||
|
9011012009
|
9011012009
90110-12009 Bolt (For Rear Axle Bearing Case Rh) |
90110-12009 |
US $3.40 |
||
|
9017012030
|
9017012030
90170-12030 NUTHEXAGON |
90170-12030 |
US $1.97 |
||
|
9017712001
|
9017712001
90177-12001 NUT, LOCK |
90177-12001 |
US $3.94 |
||
|
9017810014
|
9017810014
90178-10014 Nut(For Front Suspension Support) |
90178-10014 |
from US $1.27 |
||
|
9017914044
|
9017914044
90179-14044 NUT |
90179-14044 |
US $3.58 |
||
|
9017914068
|
9017914068
90179-14068 Nut(For Front Suspension Lower Arm) |
90179-14068 |
US $2.15 |
||
|
9155611475
|
9155611475
91556-11475 BOLT FLANGE |
91556-11475 |
US $4.27 |
||
| replacement | |||||
|
9155611475
|
9155611475
90105-14200 BOLT FLANGE |
90105-14200 |
US $5.56 |
||
|
9155611485
|
9155611485
91556-11485 BOLT FLANGE |
91556-11485 |
US $4.27 |
||
| replacement | |||||
|
9155611485
|
9155611485
90105-14202 BOLT FLANGE |
90105-14202 |
US $5.56 |
||
|
9167480814
|
9167480814
91674-80814 Bolt |
91674-80814 |
US $1.61 |
||
|
9415120801
|
9415120801
94151-20801 New Genuine Part |
94151-20801 |
US $1.43 |
||
|
9415121200
|
9415121200
94151-21200 NUT FLANGE |
94151-21200 |
US $2.51 |
||
|
9415121401
|
9415121401
94151-21401 NUT FLANGE |
94151-21401 |
US $2.51 |
||
|
9462251400
|
9462251400
94622-51400 Washer(For Front Suspension Lower Arm No.1 Rh) |
94622-51400 |
US $2.87 |
||
