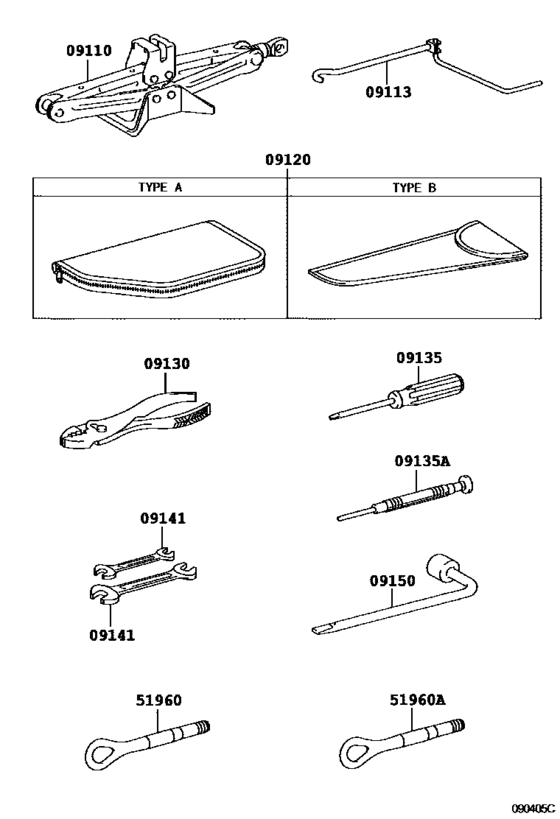

Standard Tool ([04.2006 - ] (0604- )) Diagram Toyota LEXUS IS
- Year
- 2010 - 2013
- Sales region
- General
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- IS250
- From
- 08.2010
- To
- 04.2013
- Vehicle Model
- IS250
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
09110
|
09110
09111-33030
Jack Assy
[10.2010 -] GSE2# |
09111-33030 |
— | ||
| replacement | |||||
|
09110
|
09110
09111-76010 Jack Assy[10.2010 -] GSE2# |
09111-76010 |
US $85.90 |
||
|
09110
|
09110
09111-50051 Jack Assy[08.2010 - 09.2010] GSE2# |
09111-50051 |
US $77.88 |
||
| replacement | |||||
|
09110
|
09110
09111-76011 JACK ASSY[08.2010 - 09.2010] GSE2# |
09111-76011 |
US $96.76 |
||
|
09110
|
09110
09111-50070
Jack Assy
[08.2010 - 10.2010] GSE20 CHINA SPEC |
09111-50070 |
— | ||
|
09113
|
09113
09113-44010 Handle, Jack[08.2010 -] GSE2# |
09113-44010 |
US $18.31 |
||
|
09120
|
09120
09120-28020 Bag, Tool[08.2010 -] GSE2# TYPE B:REFER ILLUST. |
09120-28020 |
US $6.64 |
||
|
09120
|
09120
09120-53010 Bag, Tool[08.2010 - 08.2012] GSE20 CHINA SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION,TYPE A:REFER ILLUST. |
09120-53010 |
US $77.17 |
||
|
09120
|
09120
09120-53020
Bag, Tool
[08.2010 - 08.2012] GSE22..GCC PHILIPPINE SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER,TYPE A:REFER ILLUST.; GSE22..GEN TIRE & DISC WHEEL-225/45R17+245/45R17,GEN&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER ,TYPE A:REFER ILLUST.; GSE2# AUDIO-AM/FM, CD-CHANGE |
09120-53020 |
— | ||
|
09130
|
09130
09130-50040 Pliers[08.2010 -] GSE2# |
09130-50040 |
US $10.57 |
||
|
09135
|
09135
99915-10700 Driver, ScrewNo Toyota stamp [08.2010 -] GSE2# |
99915-10700 |
US $8.24 |
||
| replacement | |||||
|
09135
|
09135
90089-99009 Driver, Screw (ATC) (Thailand)Screw Driver (ATC) [08.2010 -] GSE2# |
90089-99009 |
US $7.16 |
||
|
09135A
|
09135A
09135-53010
Bit, Screw Driver
[08.2010 - 08.2012] GSE22..GCC PHILIPPINE SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER; GSE22..GEN AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER; GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
09135-53010 |
— | ||
|
09141
|
09141
09141-60010 Spanner[08.2010 - 08.2012] GSE20 8 X 10,CHINA SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
09141-60010 |
US $4.54 |
||
|
09141
|
09141
09141-60020 Spanner[08.2010 - 08.2012] GSE20 12 X 14,CHINA SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
09141-60020 |
US $7.69 |
||
|
09150
|
09150
09150-53010 Wrench, Hub Nut BoxHUB NUT BOX [08.2010 - 06.2012] GSE2# |
09150-53010 |
US $10.34 |
||
| replacement | |||||
|
09150
|
09150
09150-76020 Wrench, Hub Nut Box[08.2010 - 06.2012] GSE2# |
09150-76020 |
US $9.26 |
||
|
09150
|
09150
09150-76020 Wrench, Hub Nut Box[06.2012 - 04.2013] GSE2# |
09150-76020 |
US $9.26 |
||
|
51960
|
51960
51961-53010 Hook Assy, Front[08.2010 -] GSE2# |
51961-53010 |
US $36.12 |
||
|
51960A
|
51960A
51961-53010 Hook Assy, Front[08.2010 -] GSE2# |
51961-53010 |
US $36.12 |
||
