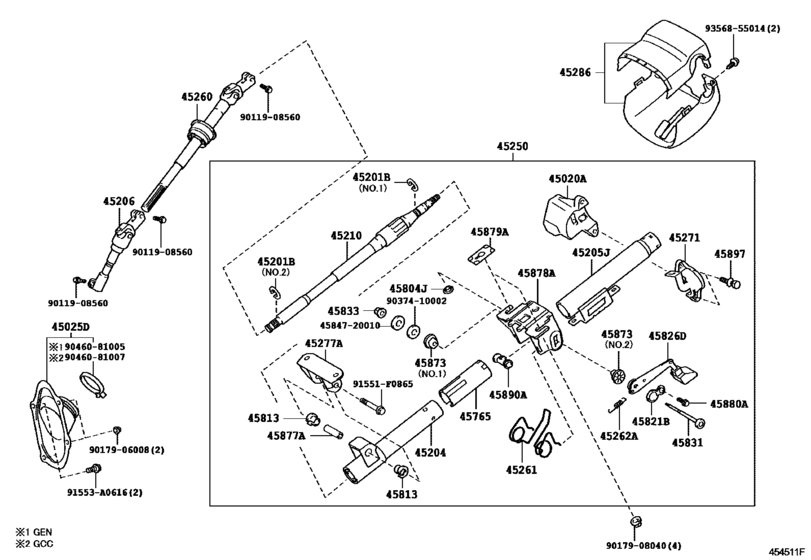

Steering Column & Shaft ([04.2006 - 11.2010] MANUAL TILT & TELESCOPIC STEERING (0604-1011)) Diagram Toyota LEXUS IS
- Year
- 2010 - 2013
- Sales region
- General
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- IS250
- From
- 08.2010
- To
- 04.2013
- Vehicle Model
- IS250
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45020A
|
45020A
45020-30A60 Actuator Assy, Steering Lock[08.2010 - 04.2013] GSE2#..GCC; GSE22..GEN LUXURY PACKAGE |
45020-30A60 |
US $206.17 |
||
|
45020A
|
45020A
45020-52140 Actuator Assy, Steering Lock[08.2010 - 08.2011] GSE20 ART WORKS |
45020-52140 |
US $225.76 |
||
|
45025D
|
45025D
45025-30390 Cover Sub-Assy, Steering Column Hole, No.1STEERING COLUMN HOLE, NO.1 [08.2010 - 04.2013] GSE2#..GCC |
45025-30390 |
US $24.46 |
||
|
45201B
|
45201B
90520-17269 Ring, Shaft Snap(For Steering Main Shaft)[08.2010 - 08.2011] GSE20 T=1.20,ART WORKS,NO.2 |
90520-17269 |
US $2.15 |
||
|
45201B
|
45201B
90520-21023 Ring, Shaft Snap(For Steering Main Shaft)[08.2010 - 08.2011] GSE20 T=1.20,ART WORKS,NO.1 |
90520-21023 |
US $0.51 |
||
|
45204
|
45204
45204-53010 Tube Assy, Steering Column, Lower[08.2010 - 08.2011] GSE20 ART WORKS |
45204-53010 |
US $53.14 |
||
|
45205J
|
45205J
45205-22270 Tube Sub-Assy, Steering Column, Upper[08.2010 - 08.2011] GSE20 ART WORKS |
45205-22270 |
US $53.14 |
||
|
45206
|
45206
45206-30111 Yoke Sub-Assy, Steering Sliding W/shaftSTEERING SLIDING W/SHAFT [08.2010 - 12.2011] GSE2#..GCC |
45206-30111 |
US $139.78 |
||
|
45206
|
45206
45206-30112
Yoke Sub-Assy, Steering Sliding W/shaft
[12.2011 -] GSE2#..GCC |
45206-30112 |
— | ||
|
45210
|
45210
45210-22290 Shaft Assy, Steering Main[08.2010 - 01.2011] GSE22..GEN; GSE20 EXCEPT(F,FB,LUXURY PACKAGE,ART WORKS); GSE20 ART WORKS |
45210-22290 |
US $323.23 |
||
| replacement | |||||
|
45210
|
45210
45210-22291 Shaft Assy, Steering Main[08.2010 - 01.2011] GSE22..GEN; GSE20 EXCEPT(F,FB,LUXURY PACKAGE,ART WORKS); GSE20 ART WORKS |
45210-22291 |
US $244.61 |
||
|
45210
|
45210
45210-22291 Shaft Assy, Steering Main[02.2011 - 08.2011] GSE20 ART WORKS |
45210-22291 |
US $244.61 |
||
|
45250
|
45250
45250-53030 Column Assy, Steering[08.2010 - 11.2010] GSE22..GEN; GSE20 EXCEPT(F,FB,LUXURY PACKAGE,ART WORKS); GSE20 ART WORKS |
45250-53030 |
US $774.59 |
||
| replacements | |||||
|
45250
|
45250
45250-53032 Column Assy, Steering[08.2010 - 11.2010] GSE22..GEN; GSE20 EXCEPT(F,FB,LUXURY PACKAGE,ART WORKS); GSE20 ART WORKS |
45250-53032 |
US $961.02 |
||
|
45250
|
45250
45020-52140 Actuator Assy, Steering Lock[08.2010 - 11.2010] GSE22..GEN; GSE20 EXCEPT(F,FB,LUXURY PACKAGE,ART WORKS); GSE20 ART WORKS |
45020-52140 |
US $225.76 |
||
|
45250
|
45250
45271-22030 Clamp, Steering Column, Upper[08.2010 - 11.2010] GSE22..GEN; GSE20 EXCEPT(F,FB,LUXURY PACKAGE,ART WORKS); GSE20 ART WORKS |
45271-22030 |
US $13.28 |
||
|
45250
|
45250
45897-12020 Bolt, Steering Lock Set[08.2010 - 11.2010] GSE22..GEN; GSE20 EXCEPT(F,FB,LUXURY PACKAGE,ART WORKS); GSE20 ART WORKS |
45897-12020 |
US $3.76 |
||
|
45250
|
45250
45250-53031 Column Assy, Steering[11.2010 - 08.2011] GSE20 ART WORKS |
45250-53031 |
US $853.22 |
||
| replacement | |||||
|
45250
|
45250
45250-53032 Column Assy, Steering[11.2010 - 08.2011] GSE20 ART WORKS |
45250-53032 |
US $961.02 |
||
|
45250
|
45250
45250-53032 Column Assy, Steering[05.2012 -] GSE22..GEN; GSE20 FB PACKAGE; GSE20 EXCEPT(F,FB,LUXURY PACKAGE,ART WORKS) |
45250-53032 |
US $961.02 |
||
|
45250
|
45250
45250-53061
Column Assy, Steering
[08.2010 - 11.2010] GSE2#..GCC |
45250-53061 |
— | ||
| replacements | |||||
|
45250
|
45250
45020-30A60 Actuator Assy, Steering Lock[08.2010 - 11.2010] GSE2#..GCC |
45020-30A60 |
US $206.17 |
||
|
45250
|
45250
45810-53020 Gear Assy, Tilt Steering, W/motor[08.2010 - 11.2010] GSE2#..GCC |
45810-53020 |
US $776.05 |
||
|
45250
|
45250
45892-30020
Bracket, Return Spring
[08.2010 - 11.2010] GSE2#..GCC |
45892-30020 |
— | ||
|
45250
|
45250
45897-12020 Bolt, Steering Lock Set[08.2010 - 11.2010] GSE2#..GCC |
45897-12020 |
US $3.76 |
||
|
45250
|
45250
89227-30020 Computer, Multiplex Tilt & Telescopic[08.2010 - 11.2010] GSE2#..GCC |
89227-30020 |
US $492.13 |
||
|
45250
|
45250
93219-15010 SCREW[08.2010 - 11.2010] GSE2#..GCC |
93219-15010 |
US $2.04 |
||
|
45250
|
45250
93381-15010 SCREW[08.2010 - 11.2010] GSE2#..GCC |
93381-15010 |
US $1.08 |
||
|
45260
|
45260
45260-30200
Shaft Assy, Steering Intermediate, No.2
[08.2010 - 12.2012] GSE2# |
45260-30200 |
— | ||
| replacement | |||||
|
45260
|
45260
45260-30201 Shaft Assy, Steering Intermediate, No.2[08.2010 - 12.2012] GSE2# |
45260-30201 |
US $282.78 |
||
|
45260
|
45260
45260-30201 Shaft Assy, Steering Intermediate, No.2[01.2013 - 04.2013] GSE2# |
45260-30201 |
US $282.78 |
||
|
45261
|
45261
45261-35020 Spring, Tilt Steering Jump Up[08.2010 - 08.2011] GSE20 ART WORKS |
45261-35020 |
US $4.54 |
||
|
45262A
|
45262A
45262-35010 Spring, Tilt Lever Return[08.2010 - 08.2011] GSE20 ART WORKS |
45262-35010 |
US $0.71 |
||
|
45271
|
45271
45271-22030 Clamp, Steering Column, Upper[08.2010 - 08.2011] GSE20 ART WORKS |
45271-22030 |
US $13.28 |
||
|
45277A
|
45277A
45277-53010 Support, Tilt Steering[08.2010 - 08.2011] GSE20 ART WORKS |
45277-53010 |
US $16.16 |
||
| replacement | |||||
|
45277A
|
45277A
45277-53011 Support, Tilt Steering[08.2010 - 08.2011] GSE20 ART WORKS |
45277-53011 |
US $14.56 |
||
|
45277A
|
45277A
45277-53011 Support, Tilt Steering[05.2012 -] GSE22..GEN; GSE20 FB PACKAGE; GSE20 EXCEPT(F,FB,LUXURY PACKAGE,ART WORKS) |
45277-53011 |
US $14.56 |
||
|
45286
|
45286
45286-53912-C0
Cover, Steering Column
[08.2010 - 04.2013] GSE22..GCC BLACK,TRIM0#,1#,2#,4#; GSE20 BLACK,TRIM0#,1#,2#; GSE22..GEN LUXURY PACKAGE,BLACK,TRIM0#,1#,2# |
45286-53912-C0 |
— | ||
|
45286
|
45286
45286-53914-C0
Cover, Steering Column
[08.2010 - 08.2011] GSE20 ART WORKS,BLACK,TRIM0#,1#,2# |
45286-53914-C0 |
— | ||
|
45765
|
45765
45765-35010 Guide, Telescopic Steering[08.2010 - 08.2011] GSE20 ART WORKS |
45765-35010 |
US $8.37 |
||
|
45804J
|
45804J
45804-22030 Collar Sub-Assy, Break Away[08.2010 - 08.2011] GSE20 ART WORKS |
45804-22030 |
US $3.67 |
||
|
45813
|
45813
45813-12020 Collar, Tilt Steering Support, No.1[08.2010 - 08.2011] GSE20 OD=24-16,ART WORKS |
45813-12020 |
US $0.82 |
||
|
45821B
|
45821B
45821-35020 Reinforce, Tilt Steering Support, No.1[08.2010 - 08.2011] GSE20 ART WORKS |
45821-35020 |
US $0.86 |
||
|
45826D
|
45826D
45826-22130 Lever, Steering Tilt[08.2010 - 08.2011] GSE20 ART WORKS |
45826-22130 |
US $4.37 |
||
|
45831
|
45831
45831-35010 Bolt, Tilt Lever Lock, No.1[08.2010 - 08.2011] GSE20 ART WORKS |
45831-35010 |
US $2.62 |
||
|
45833
|
45833
45833-20030 Nut, Tilt Steering Adjusting, No.1[08.2010 - 08.2011] GSE20 ART WORKS |
45833-20030 |
US $0.71 |
||
|
45873
|
45873
45873-20050 Stopper, Steering Column Tube[08.2010 - 08.2011] GSE20 ART WORKS,NO.1 |
45873-20050 |
US $2.52 |
||
|
45873
|
45873
45873-35010 Stopper, Steering Column Tube[08.2010 - 08.2011] GSE20 ART WORKS,NO.2 |
45873-35010 |
US $2.52 |
||
|
45877A
|
45877A
45877-35030 Spacer, Steering Column Bracket[08.2010 - 08.2011] GSE20 ART WORKS |
45877-35030 |
US $2.80 |
||
|
45878A
|
45878A
45878-35160
Cover, Steering Column, Lwr
[08.2010 - 08.2011] GSE20 ART WORKS |
45878-35160 |
— | ||
| replacement | |||||
|
45878A
|
45878A
45878-35161 Bracket, Break Away[08.2010 - 08.2011] GSE20 ART WORKS |
45878-35161 |
US $29.53 |
||
|
45878A
|
45878A
45878-35161 Bracket, Break Away[05.2012 -] GSE22..GEN; GSE20 FB PACKAGE; GSE20 EXCEPT(F,FB,LUXURY PACKAGE,ART WORKS) |
45878-35161 |
US $29.53 |
||
|
45879A
|
45879A
45879-22070 Capsule, Break Away[08.2010 - 08.2011] GSE20 ART WORKS |
45879-22070 |
US $0.99 |
||
|
45880A
|
45880A
45832-12010 Bolt(For Steering Tilt Lever)[08.2010 - 08.2011] GSE20 ART WORKS |
45832-12010 |
US $2.62 |
||
|
45890A
|
45890A
45823-35020 Pawl Assy, Tilt Steering[08.2010 - 08.2011] GSE20 ART WORKS |
45823-35020 |
US $1.41 |
||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[08.2010 -] GSE2# |
45897-12020 |
US $3.76 |
||
|
91551F0865
|
91551F0865
91551-F0865 New Genuine Part |
91551-F0865 |
US $1.31 |
||
|
91553A0616
|
91553A0616
91553-A0616 New Genuine Part |
91553-A0616 |
US $1.08 |
||
|
4584720010
|
4584720010
45847-20010 ROTOR TILT STEERING |
45847-20010 |
US $2.62 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.97 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 New Genuine Part |
90080-11555 |
US $4.23 |
||
|
9017906008
|
9017906008
90179-06008 Nut, Rear Wiper Link Pivot, No.1 |
90179-06008 |
US $0.73 |
||
| replacement | |||||
|
9017906008
|
9017906008
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $1.25 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.79 |
||
|
9037410002
|
9037410002
90374-10002 New Genuine Part |
90374-10002 |
US $4.89 |
||
|
9046081005
|
9046081005
90460-81005 New Genuine Part |
90460-81005 |
US $5.56 |
||
|
9046081007
|
9046081007
90460-81007 CLAMP HOSE |
90460-81007 |
US $2.91 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $1.25 |
||
