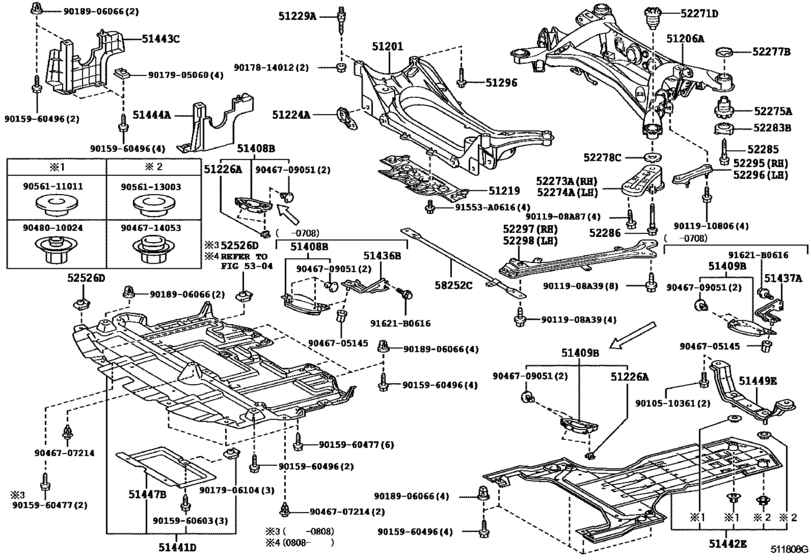

Suspension Crossmember & Under Cover ([04.2006 - 08.2011] (0604-1108)) Diagram Toyota LEXUS IS
- Year
- 2010 - 2013
- Sales region
- General
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- IS250
- From
- 08.2010
- To
- 04.2013
- Vehicle Model
- IS250
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51201
|
51201
51201-30130 Crossmember Sub-Assy, Front Suspension[08.2010 - 11.2010] GSE2# |
51201-30130 |
US $757.12 |
||
| replacement | |||||
|
51201
|
51201
51201-30140 Crossmember Sub-Assy, Front Suspension[08.2010 - 11.2010] GSE2# |
51201-30140 |
from US $650.52 |
||
|
51201
|
51201
51201-30140 Crossmember Sub-Assy, Front Suspension[12.2010 -] GSE2# |
51201-30140 |
from US $650.52 |
||
|
51206A
|
51206A
51206-30081 Member Sub-Assy, Rear SuspensionREAR SUSPENSION [08.2010 -] GSE2# |
51206-30081 |
US $815.36 |
||
| replacement | |||||
|
51206A
|
51206A
51206-30082 Member Sub-Assy, Rear Suspension[08.2010 -] GSE2# |
51206-30082 |
from US $741.10 |
||
|
51219
|
51219
51219-30031 Protector, Front Suspension Member, Lwr[08.2010 -] GSE2# |
51219-30031 |
from US $63.94 |
||
|
51224A
|
51224A
51224-30030 Plate, Front Suspension Menber Brace[08.2010 -] GSE2# |
51224-30030 |
US $29.57 |
||
|
51226A
|
51226A
51226-30020 Bracket, Front Suspension Member, Rh[08.2010 -] GSE2# |
51226-30020 |
US $1.89 |
||
|
51229A
|
51229A
90951-01004 Bolt, Front Suspension Member Mounting[08.2010 - 11.2011] GSE2# |
90951-01004 |
from US $5.39 |
||
|
51229A
|
51229A
90951-01006 Bolt, Front Suspension Member Mounting[11.2011 -] GSE2# |
90951-01006 |
US $5.56 |
||
|
51296
|
51296
90119-16013 Bolt, Front Suspension Member Mounting[08.2010 - 11.2011] GSE2# |
90119-16013 |
US $15.59 |
||
|
51296
|
51296
90119-16021 Bolt, Front Suspension Member Mounting[11.2011 -] GSE2# |
90119-16021 |
US $9.68 |
||
|
51408B
|
51408B
51408-30060 Cover Sub-Assy, Engine Under, Rh[08.2010 -] GSE2# |
51408-30060 |
US $19.32 |
||
|
51409B
|
51409B
51409-30060 Cover Sub-Assy, Engine Under, Lh[08.2010 -] GSE2# |
51409-30060 |
US $24.36 |
||
|
51441D
|
51441D
51410-53120 Cover, Engine Under[08.2010 -] GSE2# |
51410-53120 |
US $557.65 |
||
|
51442E
|
51442E
51442-30151 Cover, Engine Under, No.2ENGINE UNDER, NO.2 [08.2010 - 06.2011] GSE2# |
51442-30151 |
US $171.81 |
||
| replacement | |||||
|
51442E
|
51442E
51442-30152 Cover, Engine Under, No.2[08.2010 - 06.2011] GSE2# |
51442-30152 |
from US $131.63 |
||
|
51442E
|
51442E
51442-30152 Cover, Engine Under, No.2[06.2011 - 08.2011] GSE2# |
51442-30152 |
from US $131.63 |
||
|
51442E
|
51442E
51442-30181 Cover, Engine Under, No.2ENGINE UNDER, NO.2 [08.2011 -] GSE2# |
51442-30181 |
US $81.98 |
||
|
51443C
|
51443C
51443-30141 Cover, Engine Under, Rear RhENGINE UNDER, REAR RH [08.2010 -] GSE2# |
51443-30141 |
from US $17.71 |
||
|
51444A
|
51444A
51444-30171 Cover, Engine Under, Rear LhENGINE UNDER, REAR LH [08.2010 -] GSE2# |
51444-30171 |
from US $17.90 |
||
|
51447B
|
51447B
51447-53011 Protector, Oil PanOIL PAN [08.2010 -] GSE2# |
51447-53011 |
US $43.78 |
||
|
51449E
|
51449E
51449-30100 Bracket, Engine Under Cover Air Guide[08.2011 -] GSE20 FB PACKAGE; GSE2#..GCC F PACKAGE |
51449-30100 |
US $19.66 |
||
|
51449E
|
51449E
51449-53030 Bracket, Engine Under Cover Air Guide[08.2010 - 08.2011] GSE2# |
51449-53030 |
US $19.66 |
||
|
52271D
|
52271D
52271-30120 Cushion, Rear Suspension Member Body Mounting, Front[08.2010 -] GSE2# |
52271-30120 |
US $46.87 |
||
|
52273A
|
52273A
52203-30070 Stopper, Rear Suspension Member, Lower Rh[08.2010 -] GSE2# |
52203-30070 |
US $44.86 |
||
|
52274A
|
52274A
52204-30050 Stopper, Rear Suspension Member, Lower Lh[08.2010 -] GSE2# |
52204-30050 |
US $44.86 |
||
|
52275A
|
52275A
52275-30130 Cushion, Rear Suspension Member Body Mounting, Rear[08.2010 -] GSE2# |
52275-30130 |
from US $57.74 |
||
|
52277B
|
52277B
52277-30060
Stopper, Rear Suspension Member, Rear Upper
[08.2010 -] GSE2# *258 |
52277-30060 |
— | ||
| replacement | |||||
|
52277B
|
52277B
52277-30070 Stopper, Rear Suspension Member, Rear UpperREAR SUSPENSION MEMBER, REAR UPPER [08.2010 -] GSE2# *258 |
52277-30070 |
US $15.05 |
||
|
52277B
|
52277B
52277-30070 Stopper, Rear Suspension Member, Rear UpperREAR SUSPENSION MEMBER, REAR UPPER [08.2010 -] GSE2# *259 |
52277-30070 |
US $15.05 |
||
|
52278C
|
52278C
52278-30050
Stopper, Rear Suspension Member, Rear Lower
[08.2010 -] GSE2# *258 |
52278-30050 |
— | ||
| replacement | |||||
|
52278C
|
52278C
52278-30080 Stopper, Rear Suspension Member, Rear Lower[08.2010 -] GSE2# *258 |
52278-30080 |
US $10.21 |
||
|
52278C
|
52278C
52278-30080 Stopper, Rear Suspension Member, Rear Lower[08.2010 -] GSE2# *259 |
52278-30080 |
US $10.21 |
||
|
52283B
|
52283B
52283-30060 Stopper, Differential Support Member, Lower[08.2010 -] GSE2# |
52283-30060 |
US $19.99 |
||
|
52285
|
52285
52285-30021 Bolt, Differential Support Member Mounting, No.1[08.2010 - 07.2012] GSE2# |
52285-30021 |
from US $17.06 |
||
|
52285
|
52285
90119-14154 Bolt, Differential Support Member Mounting, No.1[07.2012 -] GSE2# |
90119-14154 |
US $6.45 |
||
|
52286
|
52286
52286-53020 Bolt, Differential Support Member Mounting, No.2[08.2010 - 03.2013] GSE2# REFER ILLUST. |
52286-53020 |
US $45.02 |
||
|
52286
|
52286
90119-14148 Bolt, Differential Support Member Mounting, No.2[03.2013 - 04.2013] GSE2# REFER ILLUST. |
90119-14148 |
US $8.78 |
||
|
52295
|
52295
52295-30030 Brace, Rear Suspension Member, Rh[08.2010 -] GSE2# |
52295-30030 |
US $34.27 |
||
|
52296
|
52296
52295-30030 Brace, Rear Suspension Member, Rh[08.2010 -] GSE2# |
52295-30030 |
US $34.27 |
||
|
52297
|
52297
52297-53030 Brace, Rear Suspension Member, Rear Lower Rh[08.2010 -] GSE2# |
52297-53030 |
US $83.64 |
||
|
52298
|
52298
52298-53030 Brace, Rear Suspension Member, Rear Lower Lh[08.2010 -] GSE2# |
52298-53030 |
US $83.64 |
||
|
52526D
|
52526D
52526-53020 Retainer, Front Bumper, Lower Side[08.2010 - 04.2013] GSE2# |
52526-53020 |
from US $1.41 |
||
|
58252C
|
58252C
58252-53010 Brace, Floor Panel, Rear No.1[08.2010 -] GSE2# |
58252-53010 |
US $74.78 |
||
|
91553A0616
|
91553A0616
91553-A0616 New Genuine Part |
91553-A0616 |
US $1.08 |
||
|
91621B0616
|
91621B0616
91621-B0616 Bolt |
91621-B0616 |
from US $0.76 |
||
|
9011908A39
|
9011908A39
90119-08A39 BOLT WWASHER |
90119-08A39 |
US $1.43 |
||
|
9011908A87
|
9011908A87
90119-08A87 BOLT W-WASHER |
90119-08A87 |
from US $0.89 |
||
|
9010510361
|
9010510361
90105-10361 Bolt (For Rear Differential Carrier Cover Setting) |
90105-10361 |
from US $0.93 |
||
|
9011910806
|
9011910806
90119-10806 New Genuine Part |
90119-10806 |
US $14.52 |
||
|
9015960477
|
9015960477
90159-60477 SCREW, WWASHER |
90159-60477 |
from US $0.68 |
||
|
9015960496
|
9015960496
90159-60496 SCREW WWASHER |
90159-60496 |
from US $0.61 |
||
|
9015960603
|
9015960603
90159-60603 SCREW WITH-WASHER |
90159-60603 |
from US $0.63 |
||
|
9017814012
|
9017814012
90178-14012 NUT FLANGE |
90178-14012 |
US $4.66 |
||
|
9017905060
|
9017905060
90179-05060 LEXNUT |
90179-05060 |
from US $0.76 |
||
|
9017906104
|
9017906104
90179-06104 NUT |
90179-06104 |
from US $0.76 |
||
|
9018906066
|
9018906066
90189-06066 CLIP |
90189-06066 |
from US $0.68 |
||
|
9046705145
|
9046705145
90467-05145 Retainer, Cowl Side Trim |
90467-05145 |
US $1.79 |
||
|
9046707214
|
9046707214
90467-07214 Clip, Front Fender Liner |
90467-07214 |
from US $0.84 |
||
|
9046709051
|
9046709051
90467-09051 CLIP |
90467-09051 |
from US $0.89 |
||
|
9046714053
|
9046714053
90467-14053 Clip, No.1(For Floor Under Cover) |
90467-14053 |
from US $1.10 |
||
|
9048010024
|
9048010024
90480-10024 Clip, No.2(For Floor Under Cover) |
90480-10024 |
from US $1.79 |
||
|
9056111011
|
9056111011
90561-11011 Clip, No.1(For Floor Under Cover) |
90561-11011 |
from US $1.25 |
||
|
9056113003
|
9056113003
90561-13003 Clip, No.4(For Floor Under Cover) |
90561-13003 |
US $1.25 |
||
