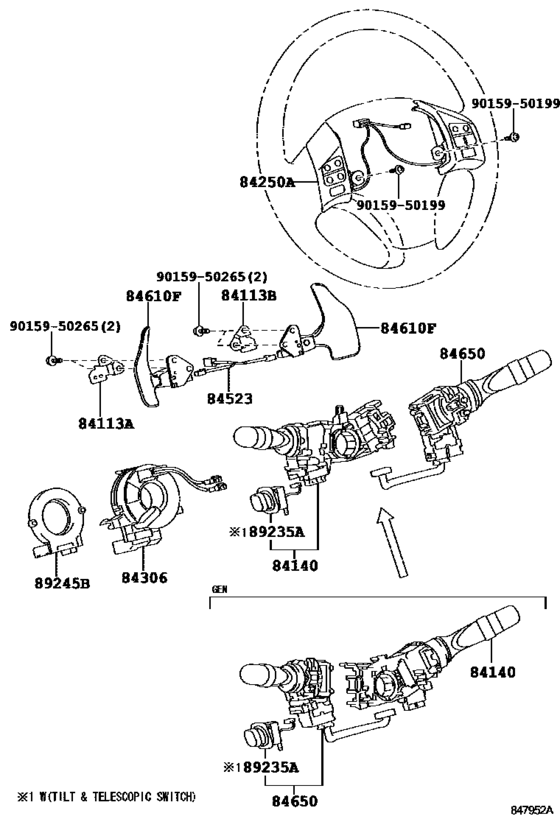

Switch & Relay & Computer ([04.2006 - ] STEERING (0604- )) Diagram Toyota LEXUS IS
- Year
- 2010 - 2013
- Sales region
- General
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- IS250
- From
- 08.2010
- To
- 04.2013
- Vehicle Model
- IS250
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84113A
|
84113A
84113-52010 Bracket, Switch, No.1[08.2010 - 04.2013] GSE2# |
84113-52010 |
US $3.20 |
||
|
84113B
|
84113B
84113-52020 Bracket, Switch, No.2[08.2010 - 04.2013] GSE2# |
84113-52020 |
US $3.20 |
||
|
84140
|
84140
84140-30311 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [08.2010 -] GSE22..GCC PHILIPPINE SPEC; GSE20 CHINA SPEC |
84140-30311 |
US $125.22 |
||
|
84140
|
84140
84140-42111 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [08.2010 - 08.2011] GSE20 CHINA SPEC&ART WORKS |
84140-42111 |
US $100.46 |
||
|
84140
|
84140
84140-48200
Switch Assy, Headlamp Dimmer
[08.2010 - 08.2011] GSE20 ART WORKS |
84140-48200 |
— | ||
|
84140
|
84140
84140-48210 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [08.2010 -] GSE2#..GCC |
84140-48210 |
US $129.58 |
||
|
84250A
|
84250A
84250-53120
Switch Assy, Steering Pad
[08.2010 - 12.2010] GSE2# |
84250-53120 |
— | ||
|
84250A
|
84250A
84250-53121
Switch Assy, Steering Pad
[12.2010 - 08.2011] GSE2# |
84250-53121 |
— | ||
|
84250A
|
84250A
84250-53131 Switch Assy, Steering Pad[08.2011 -] GSE20 STEERING WHEEL-LEATHER |
84250-53131 |
US $173.26 |
||
|
84250A
|
84250A
84250-53140 Switch Assy, Steering Pad[08.2010 - 12.2010] GSE2# EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION); GSE20 EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
84250-53140 |
US $173.26 |
||
|
84250A
|
84250A
84250-53141 Switch Assy, Steering Pad[12.2010 - 08.2011] GSE2# EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION); GSE20 EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
84250-53141 |
US $144.14 |
||
|
84250A
|
84250A
84250-53150
Switch Assy, Steering Pad
[08.2010 - 12.2010] GSE2#..GCC PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB) |
84250-53150 |
— | ||
|
84250A
|
84250A
84250-53151
Switch Assy, Steering Pad
[12.2010 - 08.2011] GSE2#..GCC PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB) |
84250-53151 |
— | ||
|
84250A
|
84250A
84250-53170 Switch Assy, Steering Pad[08.2010 - 12.2010] GSE2#..GCC PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&EMV & NAVIGATION SYSTEM-WITH(DVD NAVI GATION); GSE20 PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVI GATION) |
84250-53170 |
US $182 |
||
|
84250A
|
84250A
84250-53171 Switch Assy, Steering Pad[12.2010 - 08.2011] GSE2#..GCC PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&EMV & NAVIGATION SYSTEM-WITH(DVD NAVI GATION); GSE20 PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVI GATION) |
84250-53171 |
US $151.42 |
||
|
84306
|
84306
84306-48030
Cable Sub-Assy, Spiral
[08.2010 -] GSE2# |
84306-48030 |
— | ||
| replacement | |||||
|
84306
|
84306
84306-48031 CABLE SUBASSY[08.2010 -] GSE2# |
84306-48031 |
US $228.80 |
||
|
84523
|
84523
84523-52020 Wire, Switch No.1[08.2010 - 04.2013] GSE2# |
84523-52020 |
US $18.93 |
||
|
84610F
|
84610F
84610-53060 Switch Assy, Transmission Shift[08.2010 - 12.2010] GSE2# SHIFT DOWN |
84610-53060 |
US $120.85 |
||
|
84610F
|
84610F
84610-53061 Switch Assy, Transmission Shift[12.2010 - 04.2013] GSE2# SHIFT DOWN |
84610-53061 |
US $100.46 |
||
|
84610F
|
84610F
84610-53070 Switch Assy, Transmission Shift[08.2010 - 12.2010] GSE2# SHIFT UP |
84610-53070 |
US $120.85 |
||
|
84610F
|
84610F
84610-53071 Switch Assy, Transmission Shift[12.2010 - 04.2013] GSE2# SHIFT UP |
84610-53071 |
US $100.46 |
||
|
84650
|
84650
84652-30542 Switch Assy, Windshield WiperWINDSHIELD WIPER [08.2010 - 08.2011] GSE20 ART WORKS&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT) |
84652-30542 |
US $90.27 |
||
|
84650
|
84650
84652-30552
Switch Assy, Windshield Wiper
[08.2010 -] GSE2#..GCC |
84652-30552 |
— | ||
|
89235A
|
89235A
89235-48010 Switch, Tilt & Telescopic[08.2010 -] GSE2#..GCC; GSE22..GEN LUXURY PACKAGE&INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
89235-48010 |
US $40.19 |
||
|
89245B
|
89245B
89245-52030 Sensor, Steering[08.2010 - 04.2013] GSE2# |
89245-52030 |
US $211.41 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
US $1.25 |
||
|
9015950265
|
9015950265
90159-50265 New Genuine Part |
90159-50265 |
US $1.25 |
||
