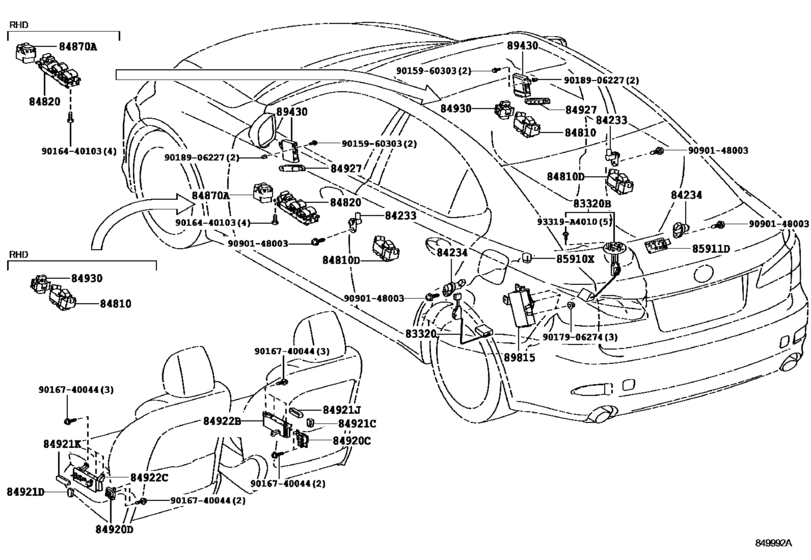

Switch & Relay & Computer ([08.2008 - ] DOOR,ROOF,FLOOR,SEAT & LUGGAGE (0808- )) Diagram Toyota LEXUS IS
- Year
- 2010 - 2013
- Sales region
- General
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- IS250
- From
- 08.2010
- To
- 04.2013
- Vehicle Model
- IS250
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-53010 Gage Assy, Fuel Sender[08.2010 - 04.2013] GSE2# |
83320-53010 |
US $60.65 |
||
|
83320B
|
83320B
83320-59515 Gage Assy, Fuel Sender, No.2[08.2010 -] GSE2# |
83320-59515 |
US $40.48 |
||
|
84233
|
84233
84231-50190 Switch Assy, Courtesy Lamp (For Front Door)[08.2010 -] GSE2# |
84231-50190 |
US $11.83 |
||
|
84234
|
84234
84231-50190 Switch Assy, Courtesy Lamp (For Front Door)[08.2010 -] GSE2# |
84231-50190 |
US $11.83 |
||
|
84810
|
84810
84810-33110 Switch Assy, Power Window Regulator[08.2010 -] GSE2# |
84810-33110 |
US $128.13 |
||
|
84810D
|
84810D
84810-33110 Switch Assy, Power Window Regulator[08.2010 -] GSE2# |
84810-33110 |
US $128.13 |
||
|
84820
|
84820
84040-53180 Master Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [08.2010 -] GSE2#..GCC |
84040-53180 |
US $221.31 |
||
|
84870A
|
84870A
84872-53020 Switch Assy, Outer Mirror[08.2010 -] GSE2#..GCC; GSE22..GEN LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
84872-53020 |
US $64.65 |
||
|
84870A
|
84870A
84872-58010 Switch Assy, Outer Mirror[08.2010 - 08.2011] GSE20 ART WORKS&FRONT SEAT-FABRIC, POWER SEAT |
84872-58010 |
US $80.64 |
||
|
84920C
|
84920C
84920-30240-A0 Switch Assy, Power Seat Front, Rh[08.2010 - 04.2013] GSE20 IVORY,TRIM02 |
84920-30240-A0 |
US $44.99 |
||
|
84920C
|
84920C
84920-30240-C0 Switch Assy, Power Seat Front, Rh[08.2010 - 04.2013] GSE22..GCC BLACK,TRIM1#,2#,4#; GSE20 BLACK,TRIM1#,2#; GSE22..GEN FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM1#,2# |
84920-30240-C0 |
US $37.42 |
||
|
84920C
|
84920C
84920-30240-E2 Switch Assy, Power Seat Front, Rh[08.2010 - 04.2013] GSE22..GCC ORCHID BROWN,TRIM0#; GSE20 ORCHID BROWN,TRIM00,03; GSE22..GEN FRONT SEAT-SEMIANILINE VENTILATED LEATHER,ORCHID BROWN,TRIM0# |
84920-30240-E2 |
US $44.99 |
||
|
84920D
|
84920D
84920-30250-A0 Switch Assy, Power Seat Front, Lh[08.2010 - 04.2013] GSE20 IVORY,TRIM02 |
84920-30250-A0 |
US $44.99 |
||
|
84920D
|
84920D
84920-30250-C0 Switch Assy, Power Seat Front, Lh[08.2010 - 04.2013] GSE22..GCC BLACK,TRIM1#,2#,4#; GSE20 BLACK,TRIM1#,2#; GSE22..GEN FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM1#,2# |
84920-30250-C0 |
US $37.42 |
||
|
84920D
|
84920D
84920-30250-E0 Switch Assy, Power Seat Front, Lh[08.2010 - 04.2013] GSE22..GCC ORCHID BROWN,TRIM0#; GSE20 ORCHID BROWN,TRIM00,03; GSE22..GEN FRONT SEAT-SEMIANILINE VENTILATED LEATHER,ORCHID BROWN,TRIM0# |
84920-30250-E0 |
US $44.99 |
||
|
84921C
|
84921C
84921-53030-A0 Knob, Power Seat Switch (For Reclining)[08.2010 - 08.2011] GSE20 FRONT SEAT-FABRIC, POWER SEAT,IVORY,TRIM02; GSE20 FRONT SEAT-SMOOTH LEATHER,IVORY,TRIM02 |
84921-53030-A0 |
US $5.53 |
||
| replacement | |||||
|
84921C
|
84921C
84921-53030-A3 Knob, Power Seat Switch (For Reclining)POWER SEAT SWITCH (FOR RECLINING) [08.2010 - 08.2011] GSE20 FRONT SEAT-FABRIC, POWER SEAT,IVORY,TRIM02; GSE20 FRONT SEAT-SMOOTH LEATHER,IVORY,TRIM02 |
84921-53030-A3 |
US $4.78 |
||
|
84921C
|
84921C
84921-53030-C0 Knob, Power Seat Switch (For Reclining)[08.2010 - 04.2013] GSE22..GCC BLACK,TRIM1#,2#,4#; GSE20 BLACK,TRIM1#,2#; GSE22..GEN LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM1#,2# |
84921-53030-C0 |
US $6.09 |
||
|
84921C
|
84921C
84921-53030-E1 Knob, Power Seat Switch, Rh[08.2010 - 08.2011] GSE20 FRONT SEAT-FABRIC, POWER SEAT,ORCHID BROWN,TRIM00; GSE20 FRONT SEAT-SMOOTH LEATHER,ORCHID BROWN,TRIM00 |
84921-53030-E1 |
US $5.53 |
||
|
84921D
|
84921D
84921-53040-A0 Knob, Power Seat Switch (For Reclining)[08.2010 - 08.2011] GSE20 FRONT SEAT-FABRIC, POWER SEAT,IVORY,TRIM02; GSE20 FRONT SEAT-SMOOTH LEATHER,IVORY,TRIM02 |
84921-53040-A0 |
US $5.53 |
||
| replacement | |||||
|
84921D
|
84921D
84921-53040-A3 Knob, Power Seat Switch (For Reclining)POWER SEAT SWITCH (FOR RECLINING) [08.2010 - 08.2011] GSE20 FRONT SEAT-FABRIC, POWER SEAT,IVORY,TRIM02; GSE20 FRONT SEAT-SMOOTH LEATHER,IVORY,TRIM02 |
84921-53040-A3 |
US $4.22 |
||
|
84921D
|
84921D
84921-53040-C0 Knob, Power Seat Switch (For Reclining)[08.2010 - 04.2013] GSE22..GCC BLACK,TRIM1#,2#,4#; GSE20 BLACK,TRIM1#,2#; GSE22..GEN LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM1#,2# |
84921-53040-C0 |
US $6.09 |
||
|
84921D
|
84921D
84921-53040-E1 Knob, Power Seat Switch, Lh[08.2010 - 08.2011] GSE20 FRONT SEAT-FABRIC, POWER SEAT,ORCHID BROWN,TRIM00; GSE20 FRONT SEAT-SMOOTH LEATHER,ORCHID BROWN,TRIM00 |
84921-53040-E1 |
US $5.53 |
||
|
84921J
|
84921J
84921-53010-A0 Knob, Power Seat Switch (For Slide & Vertical)[08.2010 - 08.2011] GSE20 FRONT SEAT-FABRIC, POWER SEAT,IVORY,TRIM02; GSE20 FRONT SEAT-SMOOTH LEATHER,IVORY,TRIM02 |
84921-53010-A0 |
US $23.44 |
||
| replacement | |||||
|
84921J
|
84921J
84921-53010-A3 Knob, Power Seat Switch (For Slide & Vertical)POWER SEAT SWITCH (FOR SLIDE & VERTICAL) [08.2010 - 08.2011] GSE20 FRONT SEAT-FABRIC, POWER SEAT,IVORY,TRIM02; GSE20 FRONT SEAT-SMOOTH LEATHER,IVORY,TRIM02 |
84921-53010-A3 |
US $18.24 |
||
|
84921J
|
84921J
84921-53010-C0 Knob, Power Seat Switch (For Slide & Vertical)[08.2010 - 04.2013] GSE22..GCC BLACK,TRIM1#,2#,4#; GSE20 BLACK,TRIM1#,2#; GSE22..GEN LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM1#,2# |
84921-53010-C0 |
US $20.27 |
||
|
84921J
|
84921J
84921-53010-E1 Knob, Power Seat Switch, Rh[08.2010 - 08.2011] GSE20 FRONT SEAT-FABRIC, POWER SEAT,ORCHID BROWN,TRIM00; GSE20 FRONT SEAT-SMOOTH LEATHER,ORCHID BROWN,TRIM00 |
84921-53010-E1 |
US $23.44 |
||
|
84921K
|
84921K
84921-53020-A0 Knob, Power Seat Switch (For Slide & Vertical)[08.2010 - 08.2011] GSE20 FRONT SEAT-FABRIC, POWER SEAT,IVORY,TRIM02; GSE20 FRONT SEAT-SMOOTH LEATHER,IVORY,TRIM02 |
84921-53020-A0 |
US $23.44 |
||
| replacement | |||||
|
84921K
|
84921K
84921-53020-A3 Knob, Power Seat Switch (For Slide & Vertical)POWER SEAT SWITCH (FOR SLIDE & VERTICAL) [08.2010 - 08.2011] GSE20 FRONT SEAT-FABRIC, POWER SEAT,IVORY,TRIM02; GSE20 FRONT SEAT-SMOOTH LEATHER,IVORY,TRIM02 |
84921-53020-A3 |
US $18.24 |
||
|
84921K
|
84921K
84921-53020-C0 Knob, Power Seat Switch (For Slide & Vertical)[08.2010 - 04.2013] GSE22..GCC BLACK,TRIM1#,2#,4#; GSE20 BLACK,TRIM1#,2#; GSE22..GEN LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM1#,2# |
84921-53020-C0 |
US $20.27 |
||
|
84921K
|
84921K
84921-53020-E1 Knob, Power Seat Switch, Lh[08.2010 - 08.2011] GSE20 FRONT SEAT-FABRIC, POWER SEAT,ORCHID BROWN,TRIM00; GSE20 FRONT SEAT-SMOOTH LEATHER,ORCHID BROWN,TRIM00 |
84921-53020-E1 |
US $23.44 |
||
|
84922B
|
84922B
84922-58010 Switch, Front Power Seat[08.2010 - 04.2013] GSE2#..GCC |
84922-58010 |
US $107.74 |
||
|
84922C
|
84922C
84070-53080 Switch, Front Power Seat[08.2010 - 04.2013] GSE2#..GCC |
84070-53080 |
US $334.88 |
||
|
84922C
|
84922C
84922-60120 Switch, Front Power Seat, Lh[08.2010 - 08.2011] GSE20 FRONT SEAT-FABRIC, POWER SEAT; GSE20 FRONT SEAT-SMOOTH LEATHER |
84922-60120 |
from US $91.73 |
||
|
84927
|
84927
84927-53040-A0 Switch, Seat Memory[08.2010 - 04.2013] GSE2#..GCC ECRU,TRIM0#,LH; GSE20 FB PACKAGE&FRONT SEAT-F SPORTS PACKAGE (FABRIC POWER SEAT),ECRU,TRIM0#,LH; GSE20 EXCEPT(F,FB,LUXURY PACKAGE,ART WORKS)&FRONT SEAT-FABRIC, POWER SEAT,ECRU,TRIM0#,LH; GSE20 EXCEPT(F,FB,LUXURY PACKAGE,ART |
84927-53040-A0 |
US $72.80 |
||
|
84927
|
84927
84927-53040-B0 Switch, Seat Memory[08.2010 - 04.2013] GSE2#..GCC LT.GRAY,TRIM1#,LH; GSE20 FB PACKAGE&FRONT SEAT-F SPORTS PACKAGE (FABRIC POWER SEAT),LT.GRAY,TRIM1#,LH; GSE20 EXCEPT(F,FB,LUXURY PACKAGE,ART WORKS)&FRONT SEAT-FABRIC, POWER SEAT,LT.GRAY,TRIM1# ,LH; GSE20 EXCEPT(F,FB,LUXURY PA |
84927-53040-B0 |
US $72.80 |
||
|
84927
|
84927
84927-53040-C0 Switch, Seat Memory[08.2010 - 04.2013] GSE22..GCC BLACK,TRIM2#,4#,LH; GSE20 BLACK,TRIM2#,LH; GSE20 FB PACKAGE&FRONT SEAT-F SPORTS PACKAGE (FABRIC POWER SEAT),BLACK,TRIM2#,LH; GSE20 EXCEPT(F,FB,LUXURY PACKAGE,ART WORKS)&FRONT SEAT-FABRIC, POWER SEAT,BLACK,TRIM2#,L H; GSE20 E |
84927-53040-C0 |
US $60.72 |
||
|
84930
|
84930
84930-30070 Switch Assy, Door Control[08.2010 -] GSE2# |
84930-30070 |
US $37.13 |
||
|
85910X
|
85910X
90987-02027 Relay[08.2010 -] GSE2# |
90987-02027 |
US $49.22 |
||
|
85911D
|
85911D
85911-50010 Relay, Rear Sunshade[08.2010 - 04.2013] GSE2# SUN SHADE-WITH |
85911-50010 |
US $313.04 |
||
|
89430
|
89430
89430-53060 Computer Assy, Outer Mirror Control[08.2010 -] GSE2#..GCC; GSE22..GEN LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
89430-53060 |
US $206.75 |
||
|
89815
|
89815
89810-53050 Computer, Seat Belt Control[08.2010 - 04.2013] GSE2#..GCC PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB) |
89810-53050 |
US $627.54 |
||
|
93319A4010
|
93319A4010
93319-A4010 SCREW WWASHER |
93319-A4010 |
US $1.08 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.25 |
||
|
9016740044
|
9016740044
90167-40044 BOLT |
90167-40044 |
from US $1.25 |
||
|
9018906227
|
9018906227
90189-06227 GROMMET SCREW |
90189-06227 |
US $1.25 |
||
|
9090148003
|
9090148003
90901-48003 Screw Hex Lobular |
90901-48003 |
US $1.97 |
||
