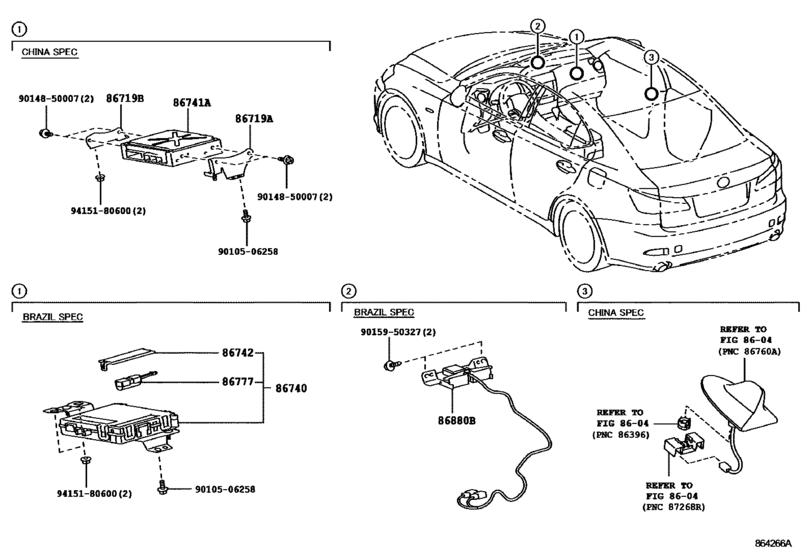

Telephone & Mayday ([08.2009 - ] (0908- )GCC) Diagram Toyota LEXUS IS
- Year
- 2010 - 2013
- Sales region
- General
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- IS250
- From
- 08.2010
- To
- 04.2013
- Vehicle Model
- IS250
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86719A
|
86719A
86719-53080
Bracket, Telephone No.1
[08.2010 - 08.2012] GSE20 CHINA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(H DD NAVIGATION); GSE20 CHINA SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WI TH(HDD NAVIGATION) |
86719-53080 |
— | ||
|
86719B
|
86719B
86719-53090
Bracket, Telephone No.2
[08.2010 - 08.2012] GSE20 CHINA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(H DD NAVIGATION); GSE20 CHINA SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WI TH(HDD NAVIGATION) |
86719-53090 |
— | ||
|
86741A
|
86741A
86741-30070
Transceiver, Telematics
[08.2010 - 08.2012] GSE20 CHINA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(H DD NAVIGATION); GSE20 CHINA SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WI TH(HDD NAVIGATION) |
86741-30070 |
— | ||
| replacement | |||||
|
86741A
|
86741A
86741-30072
Transceiver, Telematics
[08.2010 - 08.2012] GSE20 CHINA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(H DD NAVIGATION); GSE20 CHINA SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WI TH(HDD NAVIGATION) |
86741-30072 |
— | ||
|
86741A
|
86741A
86741-30072
Transceiver, Telematics
[01.2013 - 04.2013] GSE20 CHINA SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGA TION); GSE20 CHINA SPEC&AUDIO-AM/FM DVD 13SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
86741-30072 |
— | ||
|
9010506258
|
9010506258
90105-06258 BOLT, WASHER BASED |
90105-06258 |
US $1.97 |
||
|
9014850007
|
9014850007
90148-50007 New Genuine Part |
90148-50007 |
US $1.46 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.70 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
||
