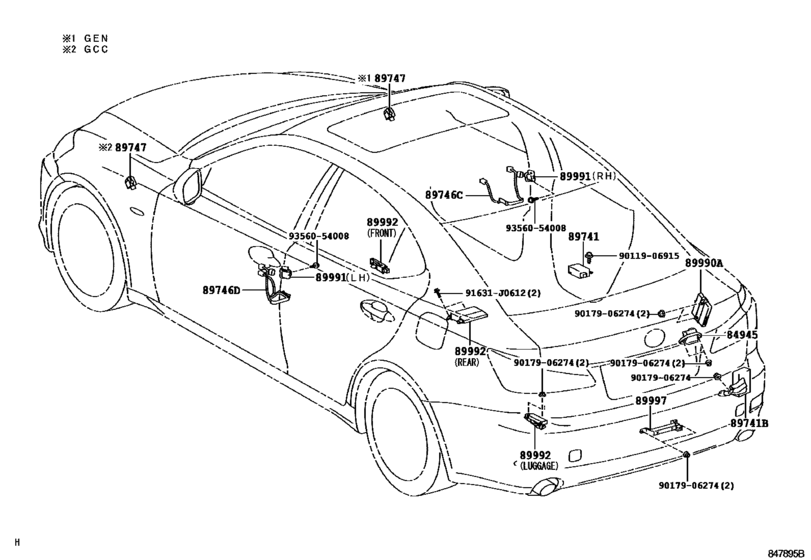

Wireless Door Lock ([04.2006 - ] (0604- )) Diagram Toyota LEXUS IS
- Year
- 2010 - 2013
- Sales region
- General
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- IS250
- From
- 08.2010
- To
- 04.2013
- Vehicle Model
- IS250
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84945
|
84945
84945-53010 Switch, Luggage Electrical Key[08.2010 -] GSE2# |
84945-53010 |
US $64.85 |
||
|
89741
|
89741
89740-53130
Receiver, Door Control
[08.2010 - 08.2012] GSE20 CHINA SPEC&WIRELESS DOOR LOCK-WITHOUT(PANIC); GSE20 CHINA SPEC&WIRELESS DOOR LOCK-WITHOUT(PANIC)&ELECTRICAL KEY(2)+CARD TYPE(1) |
89740-53130 |
— | ||
|
89741
|
89741
89740-53310
Receiver, Door Control
[08.2010 - 08.2012] GSE2#..GCC WIRELESS DOOR LOCK-WITH(PANIC) FOR JORDAN; GSE2#..GCC WIRELESS DOOR LOCK-WITH(PANIC) FOR JORDAN&ELECTRICAL KEY(2)+CARD TYPE(1) |
89740-53310 |
— | ||
| replacement | |||||
|
89741
|
89741
89740-53311
Receiver, Door Control
[08.2010 - 08.2012] GSE2#..GCC WIRELESS DOOR LOCK-WITH(PANIC) FOR JORDAN; GSE2#..GCC WIRELESS DOOR LOCK-WITH(PANIC) FOR JORDAN&ELECTRICAL KEY(2)+CARD TYPE(1) |
89740-53311 |
— | ||
|
89741
|
89741
89740-53320
Receiver, Door Control
[08.2010 - 08.2012] GSE2# |
89740-53320 |
— | ||
| replacement | |||||
|
89741
|
89741
89740-53321
Receiver, Door Control
[08.2010 - 08.2012] GSE2# |
89740-53321 |
— | ||
|
89741
|
89741
89740-53400
Receiver, Door Control
[08.2012 -] GSE2# |
89740-53400 |
— | ||
| replacement | |||||
|
89741
|
89741
89740-53401
Receiver, Door Control
[08.2012 -] GSE2# |
89740-53401 |
— | ||
|
89741
|
89741
89740-53410
Receiver, Door Control
[08.2012 -] GSE20 CHINA SPEC&WIRELESS DOOR LOCK-WITHOUT(PANIC); GSE20 CHINA SPEC&WIRELESS DOOR LOCK-WITHOUT(PANIC)&ELECTRICAL KEY(2)+CARD TYPE(1) |
89740-53410 |
— | ||
|
89746C
|
89746C
89746-53010 Harness, Electrical Key Wire, No.1[08.2010 -] GSE2# |
89746-53010 |
US $36.25 |
||
|
89746D
|
89746D
89746-53020 Harness, Electrical Key Wire, No.2[08.2010 -] GSE2# |
89746-53020 |
US $36.25 |
||
|
89747
|
89747
89747-52010 Buzzer, Wireless Door Lock[08.2010 -] GSE2# |
89747-52010 |
from US $29.60 |
||
|
89990A
|
89990A
89990-53130
Computer Assy, Smart Key
[08.2010 - 03.2011] GSE2# |
89990-53130 |
— | ||
| replacement | |||||
|
89990A
|
89990A
89990-53172
Computer Assy, Smart Key
[08.2010 - 03.2011] GSE2# |
89990-53172 |
— | ||
|
89990A
|
89990A
89990-53131
Computer Assy, Smart Key
[08.2011 - 08.2012] GSE2# |
89990-53131 |
— | ||
| replacement | |||||
|
89990A
|
89990A
89990-53370
Computer Assy, Smart Key
[08.2011 - 08.2012] GSE2# |
89990-53370 |
— | ||
|
89990A
|
89990A
89990-53132
Computer Assy, Smart Key
[09.2012 -] GSE2# |
89990-53132 |
— | ||
| replacement | |||||
|
89990A
|
89990A
89990-53370
Computer Assy, Smart Key
[09.2012 -] GSE2# |
89990-53370 |
— | ||
|
89990A
|
89990A
89990-53140
Computer Assy, Smart Key
[08.2010 - 07.2011] GSE2#..GCC WIRELESS DOOR LOCK-WITH(PANIC) FOR JORDAN |
89990-53140 |
— | ||
| replacement | |||||
|
89990A
|
89990A
89990-53142
Computer Assy, Smart Key
[08.2010 - 07.2011] GSE2#..GCC WIRELESS DOOR LOCK-WITH(PANIC) FOR JORDAN |
89990-53142 |
— | ||
|
89990A
|
89990A
89990-53141
Computer Assy, Smart Key
[08.2011 - 08.2012] GSE2#..GCC WIRELESS DOOR LOCK-WITH(PANIC) FOR JORDAN |
89990-53141 |
— | ||
| replacement | |||||
|
89990A
|
89990A
89990-53142
Computer Assy, Smart Key
[08.2011 - 08.2012] GSE2#..GCC WIRELESS DOOR LOCK-WITH(PANIC) FOR JORDAN |
89990-53142 |
— | ||
|
89990A
|
89990A
89990-53142
Computer Assy, Smart Key
[09.2012 -] GSE2#..GCC WIRELESS DOOR LOCK-WITH(PANIC) FOR JORDAN |
89990-53142 |
— | ||
|
89990A
|
89990A
89990-53170
Computer Assy, Smart Key
[03.2011 - 08.2011] GSE2# |
89990-53170 |
— | ||
| replacement | |||||
|
89990A
|
89990A
89990-53172
Computer Assy, Smart Key
[03.2011 - 08.2011] GSE2# |
89990-53172 |
— | ||
|
89991
|
89991
89991-30040 Oscillator, Door Electrical Key[08.2010 - 04.2013] GSE2# RH |
89991-30040 |
US $132.79 |
||
|
89991
|
89991
89991-30050 Oscillator, Door Electrical Key[08.2010 - 04.2013] GSE2# LH |
89991-30050 |
US $123.76 |
||
|
89992
|
89992
89992-30080 Oscillator, Indoor Electrical KeyINDOOR ELECTRICAL KEY [08.2010 -] GSE2# REAR |
89992-30080 |
US $126.67 |
||
|
89992
|
89992
89992-30090 Oscillator, Indoor Electrical Key[08.2010 -] GSE2# FRONT |
89992-30090 |
US $174.72 |
||
|
89992
|
89992
89992-53010 Oscillator, Indoor Electrical Key[08.2010 -] GSE2# LUGGAGE |
89992-53010 |
US $180.54 |
||
|
89997
|
89997
89997-30070 Antenna, Electrical Key[08.2011 -] GSE2# |
89997-30070 |
US $68.71 |
||
|
89997
|
89997
89997-41010 Antenna, Electrical Key[08.2010 - 08.2011] GSE2# |
89997-41010 |
US $106.60 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
US $1.97 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
US $1.08 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $1.25 |
||
|
9356054008
|
9356054008
93560-54008 New Genuine Part |
93560-54008 |
US $1.08 |
||
