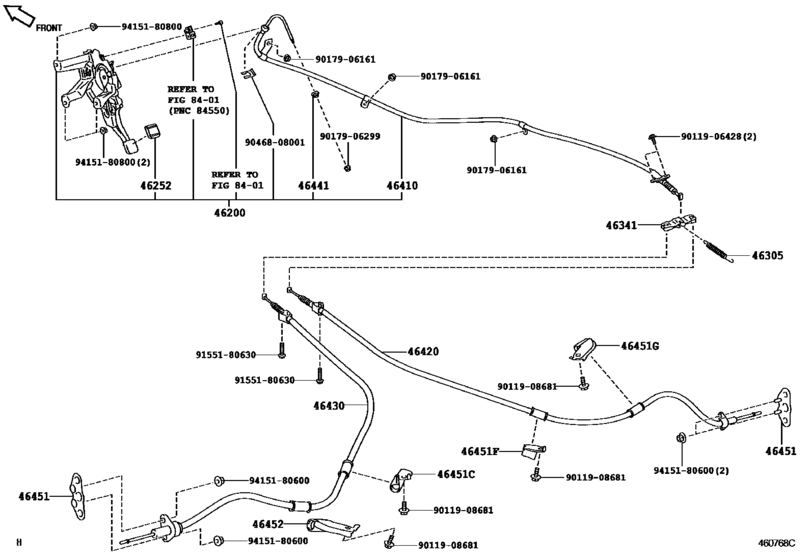

Parking Brake & Cable ([08.2005 - ] (0508- )LHD..ATM) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- Europe
- Frame
- GSE20
- grade
- LUX
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46200
|
46200
46200-53020
Pedal Assy, Parking Brake Control
[08.2005 - 08.2008] GSE20..LHD..ATM |
46200-53020 |
— | ||
|
46252
|
46252
46252-22010 Pad, Parking Pedal[08.2005 - 08.2008] GSE20..ATM |
46252-22010 |
from US $3.65 |
||
|
46305
|
46305
46305-53010 Spring, Parking Brake Return W/damper[08.2005 - 08.2008] ALE20,GSE20 |
46305-53010 |
US $3.41 |
||
|
46341
|
46341
46341-22060 Equalizer, Parking Brake[08.2005 - 08.2008] ALE20,GSE20 |
46341-22060 |
US $6.46 |
||
|
46410
|
46410
46410-53040
Cable Assy, Parking Brake, No.1
[08.2005 - 08.2008] GSE20..LHD..ATM |
46410-53040 |
— | ||
|
46420
|
46420
46420-53020 Cable Assy, Parking Brake, No.2[08.2005 - 08.2008] ALE20,GSE20 |
46420-53020 |
US $49.80 |
||
| replacements | |||||
|
46420
|
46420
46601-50050 Lever Sub-Assy, Parking Brake Shoe, Rh[08.2005 - 08.2008] ALE20,GSE20 |
46601-50050 |
US $16.31 |
||
|
46420
|
46420
46420-53021 Cable Assy, Parking Brake, No.2[08.2005 - 08.2008] ALE20,GSE20 |
46420-53021 |
US $41.50 |
||
|
46420
|
46420
46602-50050 Lever Sub-Assy, Parking Brake Shoe, Lh[08.2005 - 08.2008] ALE20,GSE20 |
46602-50050 |
US $16.31 |
||
|
46420
|
46420
46420-53021 Cable Assy, Parking Brake, No.2[07.2010 - 08.2010] ALE20,GSE20 |
46420-53021 |
US $41.50 |
||
|
46430
|
46430
46420-53020 Cable Assy, Parking Brake, No.2[08.2005 - 08.2008] ALE20,GSE20 |
46420-53020 |
US $49.80 |
||
| replacements | |||||
|
46430
|
46430
46601-50050 Lever Sub-Assy, Parking Brake Shoe, Rh[08.2005 - 08.2008] ALE20,GSE20 |
46601-50050 |
US $16.31 |
||
|
46430
|
46430
46420-53021 Cable Assy, Parking Brake, No.2[08.2005 - 08.2008] ALE20,GSE20 |
46420-53021 |
US $41.50 |
||
|
46430
|
46430
46602-50050 Lever Sub-Assy, Parking Brake Shoe, Lh[08.2005 - 08.2008] ALE20,GSE20 |
46602-50050 |
US $16.31 |
||
|
46430
|
46430
46420-53021 Cable Assy, Parking Brake, No.2[07.2010 - 08.2010] ALE20,GSE20 |
46420-53021 |
US $41.50 |
||
|
46441
|
46441
46441-12010 Nut, Wire Adjusting, No.1[08.2005 - 08.2008] ALE20,GSE20 |
46441-12010 |
US $2.87 |
||
|
46451
|
46451
46451-50050 Clamp, No.5(For Parking Brake Cable)[08.2005 - 08.2008] ALE20,GSE20 |
46451-50050 |
US $8.42 |
||
|
46451C
|
46451C
46451-30180 Bracket, Parking Brake Cable Support, No.1[08.2005 - 08.2008] ALE20,GSE20 |
46451-30180 |
US $4.02 |
||
|
46451F
|
46451F
46451-22100 Bracket, Cable Support[08.2005 - 08.2008] GSE20 |
46451-22100 |
US $3.64 |
||
|
46451G
|
46451G
46451-30190 Bracket, Cable Support[08.2005 - 08.2008] ALE20,GSE20 |
46451-30190 |
US $5.07 |
||
|
46452
|
46452
46451-30200 Bracket, Parking Brake Cable Support, No.2[08.2005 - 08.2008] ALE20,GSE20 |
46451-30200 |
US $5.07 |
||
|
9011906428
|
9011906428
90119-06428 New Genuine Part |
90119-06428 |
US $1.43 |
||
|
9011908681
|
9011908681
90119-08681 BOLTWWASHER |
90119-08681 |
US $2.87 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.78 |
||
|
9017906299
|
9017906299
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.65 |
||
|
9046808001
|
9046808001
90468-08001 CLIP |
90468-08001 |
US $3.76 |
||
|
9155180630
|
9155180630
91551-80630 Bolt(For Cylinder Head Cover) |
91551-80630 |
from US $0.63 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.78 |
||
