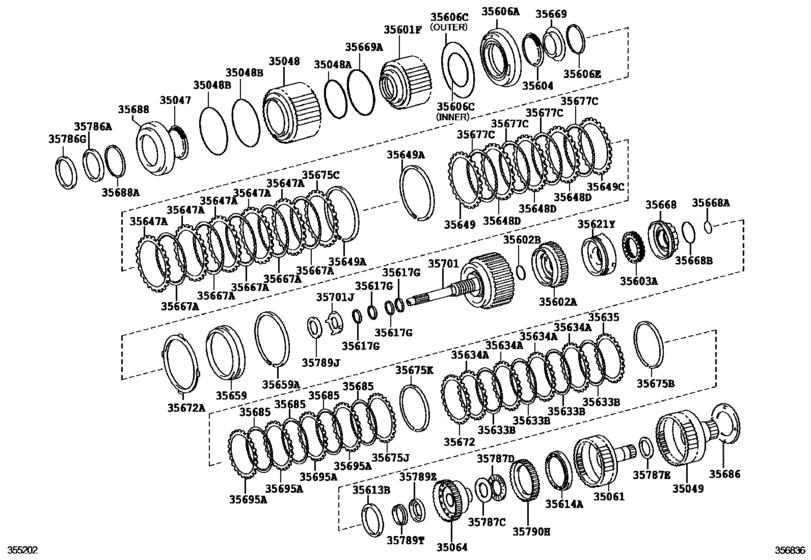

Brake Band & Multiple Disc Clutch (Atm) ([08.2005 - ] A960E (0508- )GSE20..ATM) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- General
- Frame
- GSE20
- grade
- LUX
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35047
|
35047
35047-22010 Spring Sub-Assy, Reverse Clutch Return[08.2005 - 08.2008] GSE20..ATM |
35047-22010 |
US $36.40 |
||
|
35048
|
35048
35048-22010 Piston Sub-Assy, Reverse Clutch[08.2005 - 08.2008] GSE20..ATM |
35048-22010 |
US $94.64 |
||
|
35048A
|
35048A
90301-98003 Ring, O (For Underdrive Clutch Piston)[08.2005 - 08.2008] GSE20..ATM |
90301-98003 |
US $2.62 |
||
|
35048B
|
35048B
90301-99154 Ring, O (For Reverse Clutch Piston)[08.2005 - 08.2008] GSE20..ATM |
90301-99154 |
US $2.62 |
||
|
35049
|
35049
35049-22010 Hub Sub-Assy, Reverse Clutch[08.2005 - 08.2008] GSE20..ATM |
35049-22010 |
US $129.58 |
||
|
35061
|
35061
35061-22010 Hub Sub-Assy, Forward Clutch[08.2005 - 08.2008] GSE20..ATM |
35061-22010 |
US $120.85 |
||
|
35064
|
35064
35064-22010 Hub Sub-Assy, Coast Clutch[08.2005 - 08.2008] GSE20..ATM |
35064-22010 |
US $70.03 |
||
|
35601F
|
35601F
35601-22010 Drum Sub-Assy, Reverse Clutch[08.2005 - 08.2008] GSE20..ATM |
35601-22010 |
US $238.78 |
||
|
35602A
|
35602A
35602-22040 Piston Sub-Assy, Forward Clutch[08.2005 - 08.2008] GSE20..ATM |
35602-22040 |
US $103.32 |
||
|
35602B
|
35602B
90301-30007 Ring, O (For C-1 Accumulator Piston)[08.2005 - 08.2008] GSE20..ATM |
90301-30007 |
from US $2.53 |
||
|
35603A
|
35603A
35603-22050 Spring Sub-Assy, Forward Clutch Return[08.2005 - 08.2008] GSE20..ATM |
35603-22050 |
US $24.61 |
||
|
35604
|
35604
35604-22010 Spring Sub-Assy, Direct Clutch Return[08.2005 - 08.2008] GSE20..ATM |
35604-22010 |
US $12.23 |
||
|
35606A
|
35606A
35652-22040 Piston Sub-Assy, Direct Clutch[08.2005 - 08.2008] GSE20..ATM |
35652-22040 |
US $19.22 |
||
|
35606C
|
35606C
90301-72003 Ring, O (For Forward Clutch Piston)[08.2005 - 08.2008] GSE20..ATM OUTER |
90301-72003 |
US $5.59 |
||
|
35606C
|
35606C
90301-99058 Ring, O (For Overdrive Direct Clutch Piston)[08.2005 - 08.2008] GSE20..ATM INNER |
90301-99058 |
US $3.58 |
||
|
35606E
|
35606E
90520-64003 Ring, Shaft Snap (For Direct Clutch Piston Return Spring)[08.2005 - 08.2008] GSE20..ATM |
90520-64003 |
US $1.16 |
||
|
35613B
|
35613B
35613-22010
Washer, Clutch Hub Thrust, No.2
[08.2005 - 08.2008] GSE20..ATM |
35613-22010 |
— | ||
| replacement | |||||
|
35613B
|
35613B
35613-22011 Washer, Clutch Hub Thrust, No.2CLUTCH HUB THRUST, NO.2 [08.2005 - 08.2008] GSE20..ATM |
35613-22011 |
US $11.05 |
||
|
35613B
|
35613B
35613-22011 Washer, Clutch Hub Thrust, No.2CLUTCH HUB THRUST, NO.2 [05.2010 - 08.2010] GSE20..ATM |
35613-22011 |
US $11.05 |
||
|
35614A
|
35614A
35614-22010 Washer, Clutch Hub Thrust, No.3[08.2005 - 08.2008] GSE20..ATM |
35614-22010 |
US $6.70 |
||
|
35617G
|
35617G
35617-22040 Ring, Clutch Drum Oil Seal[08.2005 - 08.2008] GSE20..ATM |
35617-22040 |
US $6.41 |
||
|
35621Y
|
35621Y
35621-22030 Piston, Coast Clutch[08.2005 - 08.2008] GSE20..ATM |
35621-22030 |
from US $50.32 |
||
|
35633B
|
35633B
35633-22070 Disc, Clutch (For Forward Multiple Disc Clutch)[08.2005 - 08.2008] GSE20..ATM |
35633-22070 |
US $37.30 |
||
|
35634A
|
35634A
35634-22110 Plate, Clutch (For Forward Multiple Disc Clutch)[08.2005 - 08.2008] GSE20..ATM T=1.8 |
35634-22110 |
from US $11.65 |
||
|
35635
|
35635
35635-22010 Flange, Forward Clutch[08.2005 - 08.2008] GSE20..ATM T=3.0,MARK 0 |
35635-22010 |
US $35.24 |
||
|
35635
|
35635
35635-22020 Flange, Forward Clutch[08.2005 - 08.2008] GSE20..ATM T=3.1,MARK 1 |
35635-22020 |
US $35.24 |
||
|
35635
|
35635
35635-22030 Flange, Forward Clutch[08.2005 - 08.2008] GSE20..ATM T=3.2,MARK 2 |
35635-22030 |
US $35.24 |
||
|
35635
|
35635
35635-22040 Flange, Forward Clutch[08.2005 - 08.2008] GSE20..ATM T=3.3,MARK 3 |
35635-22040 |
US $35.24 |
||
|
35635
|
35635
35635-22050 Flange, Forward Clutch[08.2005 - 08.2008] GSE20..ATM T=3.4,MARK 4 |
35635-22050 |
US $35.24 |
||
|
35635
|
35635
35635-22060 Flange, Forward Clutch[08.2005 - 08.2008] GSE20..ATM T=3.5,MARK 5 |
35635-22060 |
US $35.24 |
||
|
35635
|
35635
35635-22070 Flange, Forward Clutch[08.2005 - 08.2008] GSE20..ATM T=3.6,MARK 6 |
35635-22070 |
US $35.24 |
||
|
35635
|
35635
35635-22080 Flange, Forward Clutch[08.2005 - 08.2008] GSE20..ATM T=3.7,MARK 7 |
35635-22080 |
US $35.24 |
||
|
35635
|
35635
35635-22090 Flange, Forward Clutch[08.2005 - 08.2008] GSE20..ATM T=3.8,MARK 8 |
35635-22090 |
US $35.24 |
||
|
35635
|
35635
35635-22100 Flange, Forward Clutch[08.2005 - 08.2008] GSE20..ATM T=3.9,MARK 9 |
35635-22100 |
US $35.24 |
||
|
35647A
|
35647A
35647-22040 Plate, Clutch (For Direct Multiple Disc Clutch)[08.2005 - 08.2008] GSE20..ATM |
35647-22040 |
US $21.55 |
||
|
35648D
|
35648D
35648-22020 Plate, Clutch, No.3[08.2005 - 08.2008] GSE20..ATM |
35648-22020 |
from US $17.18 |
||
|
35649
|
35649
35649-22080 Flange, Reverse Clutch[08.2005 - 08.2008] GSE20..ATM |
35649-22080 |
from US $13.10 |
||
|
35649A
|
35649A
90520-99063 Ring, Hole Snap(For Reverse Clutch Flange)[08.2005 - 08.2008] GSE20..ATM |
90520-99063 |
US $3.49 |
||
|
35649C
|
35649C
35649-22020 Flange, Reverse Clutch[08.2005 - 08.2008] GSE20..ATM T=2.4,MARK 0 |
35649-22020 |
US $13.10 |
||
|
35649C
|
35649C
35649-22030 Flange, Reverse Clutch[08.2005 - 08.2008] GSE20..ATM T=2.5,MARK 1 |
35649-22030 |
US $13.10 |
||
|
35649C
|
35649C
35649-22040 Flange, Reverse Clutch[08.2005 - 08.2008] GSE20..ATM T=2.6,MARK 2 |
35649-22040 |
US $13.10 |
||
|
35649C
|
35649C
35649-22050 Flange, Reverse Clutch[08.2005 - 08.2008] GSE20..ATM T=2.7,MARK 3 |
35649-22050 |
US $13.10 |
||
|
35649C
|
35649C
35649-22060 Flange, Reverse Clutch[08.2005 - 08.2008] GSE20..ATM T=2.8,MARK 4 |
35649-22060 |
US $13.10 |
||
|
35649C
|
35649C
35649-22070 Flange, Reverse Clutch[08.2005 - 08.2008] GSE20..ATM T=2.9,MARK 5 |
35649-22070 |
US $13.10 |
||
|
35649C
|
35649C
35649-22080 Flange, Reverse Clutch[08.2005 - 08.2008] GSE20..ATM T=3.0,MARK 6 |
35649-22080 |
from US $13.10 |
||
|
35649C
|
35649C
35649-22090 Flange, Reverse Clutch[08.2005 - 08.2008] GSE20..ATM T=3.1,MARK 7 |
35649-22090 |
US $13.10 |
||
|
35649C
|
35649C
35649-22100 Flange, Reverse Clutch[08.2005 - 08.2008] GSE20..ATM T=3.2,MARK 8 |
35649-22100 |
US $13.10 |
||
|
35649C
|
35649C
35649-22110 Flange, Reverse Clutch[08.2005 - 08.2008] GSE20..ATM T=3.3,MARK 9 |
35649-22110 |
US $13.10 |
||
|
35649C
|
35649C
35649-22120 Flange, Reverse Clutch[08.2005 - 08.2008] GSE20..ATM T=3.4,MARK A |
35649-22120 |
US $13.10 |
||
|
35649C
|
35649C
35649-22130 Flange, Reverse Clutch[08.2005 - 08.2008] GSE20..ATM T=3.5,MARK B |
35649-22130 |
US $13.10 |
||
|
35659
|
35659
35659-22020 Sleeve, Reverse Clutch Reaction[08.2005 - 08.2008] GSE20..ATM |
35659-22020 |
US $21.26 |
||
|
35659A
|
35659A
90520-99096 Ring, Snap (For Reverse Clutch Reaction Sleeve)[08.2005 - 08.2008] GSE20..ATM |
90520-99096 |
US $2.48 |
||
|
35667A
|
35667A
35667-22030 Disk, Direct Clutch[08.2005 - 08.2008] GSE20..ATM |
35667-22030 |
US $26.21 |
||
|
35668
|
35668
35668-22010 Balancer, Clutch, No.1[08.2005 - 08.2008] GSE20..ATM |
35668-22010 |
US $24.17 |
||
|
35668A
|
35668A
90520-31034 Ring, Snap(For Clutch Balancer)[08.2005 - 08.2008] GSE20..ATM |
90520-31034 |
US $1.16 |
||
|
35668B
|
35668B
35697-22010 Ring, O(For Clutch Balancer)[08.2005 - 08.2008] GSE20..ATM |
35697-22010 |
US $2.48 |
||
|
35669
|
35669
35669-22010 Balancer, Clutch, No.2[08.2005 - 08.2008] GSE20..ATM |
35669-22010 |
US $24.17 |
||
|
35669A
|
35669A
90301-99085 Ring, O (For Brake Piston No.2)[08.2005 - 08.2008] GSE20..ATM |
90301-99085 |
US $1.16 |
||
|
35672
|
35672
35672-22020 Plate, Clutch Cushion[08.2005 - 08.2008] GSE20..ATM |
35672-22020 |
US $7.43 |
||
|
35672A
|
35672A
35672-22030 Plate, Clutch Cushion (For Direct Multiple Disc Clutch)[08.2005 - 08.2008] GSE20..ATM |
35672-22030 |
US $24.46 |
||
|
35675B
|
35675B
90520-99095 Ring, Hole Snap (For Forward Clutch Flange)[08.2005 - 08.2008] GSE20..ATM |
90520-99095 |
US $2.48 |
||
|
35675C
|
35675C
35675-22150 Flange, Direct Clutch[08.2005 - 08.2008] GSE20..ATM T=3.0,MARK 0 |
35675-22150 |
from US $32.03 |
||
|
35675C
|
35675C
35675-22160 Flange, Direct Clutch[08.2005 - 08.2008] GSE20..ATM T=3.1,MARK 1 |
35675-22160 |
US $33.05 |
||
|
35675C
|
35675C
35675-22170 Flange, Direct Clutch[08.2005 - 08.2008] GSE20..ATM T=3.2,MARK 2 |
35675-22170 |
US $15.14 |
||
|
35675C
|
35675C
35675-22180 Flange, Direct Clutch[08.2005 - 08.2008] GSE20..ATM T=3.3,MARK 3 |
35675-22180 |
US $35.24 |
||
|
35675C
|
35675C
35675-22190 Flange, Direct Clutch[08.2005 - 08.2008] GSE20..ATM T=3.4,MARK 4 |
35675-22190 |
US $36.25 |
||
|
35675C
|
35675C
35675-22200 Flange, Direct Clutch[08.2005 - 08.2008] GSE20..ATM T=3.5,MARK 5 |
35675-22200 |
from US $37.42 |
||
|
35675C
|
35675C
35675-22210 Flange, Direct Clutch[08.2005 - 08.2008] GSE20..ATM T=3.6,MARK 6 |
35675-22210 |
US $38.29 |
||
|
35675C
|
35675C
35675-22220 Flange, Direct Clutch[08.2005 - 08.2008] GSE20..ATM T=3.7,MARK 7 |
35675-22220 |
US $38.29 |
||
|
35675C
|
35675C
35675-22230 Flange, Direct Clutch[08.2005 - 08.2008] GSE20..ATM T=3.8,MARK 8 |
35675-22230 |
US $38.29 |
||
|
35675J
|
35675J
35675-22240 Flange, Coast Clutch[08.2005 - 08.2008] GSE20..ATM MARK 0 |
35675-22240 |
US $22.57 |
||
|
35675J
|
35675J
35675-22250 Flange, Coast Clutch[08.2005 - 08.2008] GSE20..ATM MARK 1 |
35675-22250 |
US $23.15 |
||
|
35675J
|
35675J
35675-22260 Flange, Coast Clutch[08.2005 - 08.2008] GSE20..ATM MARK 2 |
35675-22260 |
US $23.15 |
||
|
35675J
|
35675J
35675-22270 Flange, Coast Clutch[08.2005 - 08.2008] GSE20..ATM MARK 3 |
35675-22270 |
US $23.88 |
||
|
35675J
|
35675J
35675-22280 Flange, Coast Clutch[08.2005 - 08.2008] GSE20..ATM MARK 4 |
35675-22280 |
US $25.33 |
||
|
35675J
|
35675J
35675-22290 Flange, Coast Clutch[08.2005 - 08.2008] GSE20..ATM MARK 5 |
35675-22290 |
US $26.21 |
||
|
35675J
|
35675J
35675-22300 Flange, Coast Clutch[08.2005 - 08.2008] GSE20..ATM MARK 6 |
35675-22300 |
US $27.08 |
||
|
35675J
|
35675J
35675-22310 Flange, Coast Clutch[08.2005 - 08.2008] GSE20..ATM MARK 7 |
35675-22310 |
US $27.66 |
||
|
35675J
|
35675J
35675-22320 Flange, Coast Clutch[08.2005 - 08.2008] GSE20..ATM MARK 8 |
35675-22320 |
US $28.39 |
||
|
35675J
|
35675J
35675-22330 Flange, Coast Clutch[08.2005 - 08.2008] GSE20..ATM MARK 9 |
35675-22330 |
US $28.97 |
||
|
35675K
|
35675K
90520-97001 Ring, Snap (For Coast Clutch Flange)[08.2005 - 08.2008] GSE20..ATM |
90520-97001 |
US $2.48 |
||
|
35677C
|
35677C
35677-22100 Disc, Rear Clutch[08.2005 - 08.2008] GSE20..ATM |
35677-22100 |
from US $30.58 |
||
|
35685
|
35685
35685-22010 Disc, Coast Clutch[08.2005 - 08.2008] GSE20..ATM |
35685-22010 |
from US $26.06 |
||
|
35686
|
35686
35686-22010 Washer, Clutch Drum Thrust (For Input Shaft)[08.2005 - 08.2008] GSE20..ATM |
35686-22010 |
US $5.39 |
||
|
35688
|
35688
35688-22010 Balancer, Clutch, No.3[08.2005 - 08.2008] GSE20..ATM |
35688-22010 |
US $35.67 |
||
|
35688A
|
35688A
90520-79001 Ring, Snap (For Reverse Clutch Return Spring)[08.2005 - 08.2008] GSE20..ATM |
90520-79001 |
US $0.70 |
||
|
35695A
|
35695A
35695-22010 Plate, Coast Clutch[08.2005 - 08.2008] GSE20..ATM |
35695-22010 |
US $22.86 |
||
|
35701
|
35701
35701-22130 Shaft Sub-Assy, Input[08.2005 - 08.2008] GSE20..ATM |
35701-22130 |
US $266.45 |
||
|
35701J
|
35701J
90374-33001 Bearing, Thrust Needle Roller (For Input Shaft Front)[08.2005 - 08.2008] GSE20..ATM |
90374-33001 |
US $15.87 |
||
|
35786A
|
35786A
35786-60010 Race, Thrust Bearing, No.1[08.2005 - 08.2008] GSE20..ATM |
35786-60010 |
US $14.56 |
||
|
35786G
|
35786G
90374-71001 Bearing, Thrust Needle Roller (For Front Planetary Gear)[08.2005 - 08.2008] GSE20..ATM |
90374-71001 |
from US $13.62 |
||
|
35787C
|
35787C
35787-22010 Race, Thrust Bearing, No.2[08.2005 - 08.2008] GSE20..ATM |
35787-22010 |
US $6.99 |
||
|
35787D
|
35787D
90374-36002 Bearing, Thrust Needle Roller[08.2005 - 08.2008] GSE20..ATM |
90374-36002 |
US $17.62 |
||
|
35787E
|
35787E
90374-42008 Bearing, Thrust Needle Roller[08.2005 - 08.2008] GSE20..ATM |
90374-42008 |
from US $10.48 |
||
|
35789J
|
35789J
35789-22080 Race, Thrust Bearing (For Input Shaft Front)[08.2005 - 08.2008] GSE20..ATM |
35789-22080 |
US $6.55 |
||
|
35789T
|
35789T
35789-22090 Race, Thrust Bearing (Input Shaft Rear)[08.2005 - 08.2008] GSE20..ATM |
35789-22090 |
US $5.39 |
||
|
35789Z
|
35789Z
90374-22010 Bearing, Thrust Needle Roller[08.2005 - 08.2008] GSE20..ATM |
90374-22010 |
US $10.05 |
||
|
35790H
|
35790H
34360-22010
Clutch Assy, Underdrive 1 Way
[08.2005 - 08.2008] GSE20..ATM |
34360-22010 |
— | ||
