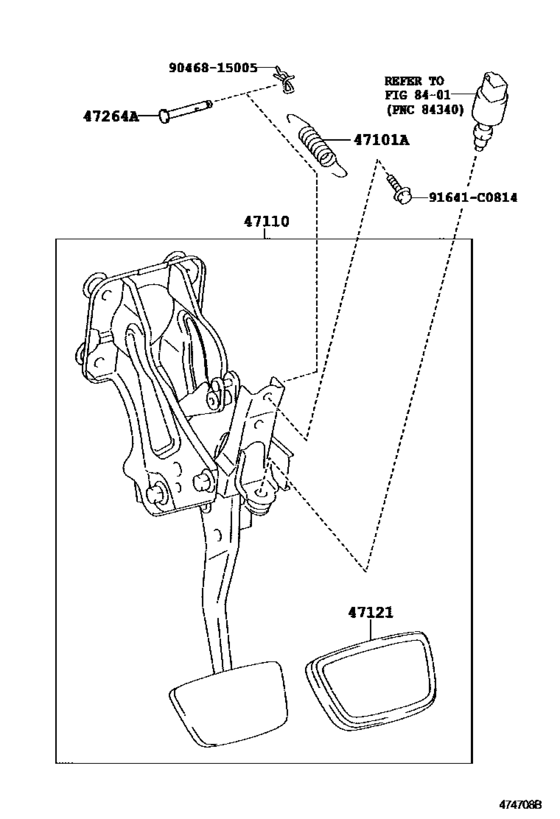

Brake Pedal & Bracket ([08.2005 - ] (0508- )LHD) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- General
- Frame
- GSE20
- grade
- LUX
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47101A
|
47101A
90507-12011 Spring(For Clutch Pedal)[08.2005 - 08.2008] ALE20,GSE20 |
90507-12011 |
US $3.67 |
||
|
47110
|
47110
47110-53250
Support Assy, Brake Pedal
[08.2005 - 08.2008] GSE20..LHD..ATM |
47110-53250 |
— | ||
| replacement | |||||
|
47110
|
47110
47110-53252
Support Assy, Brake Pedal
[08.2005 - 08.2008] GSE20..LHD..ATM |
47110-53252 |
— | ||
|
47110
|
47110
47110-53251
Support Assy, Brake Pedal
[10.2009 - 08.2010] GSE20..LHD..ATM |
47110-53251 |
— | ||
| replacement | |||||
|
47110
|
47110
47110-53252
Support Assy, Brake Pedal
[10.2009 - 08.2010] GSE20..LHD..ATM |
47110-53252 |
— | ||
|
47110
|
47110
47110-53260
Support Assy, Brake Pedal
[08.2005 - 07.2006] GSE20..LHD..ATM SPORT PACKAGE |
47110-53260 |
— | ||
| replacement | |||||
|
47110
|
47110
47110-53262
Support Assy, Brake Pedal
[08.2005 - 07.2006] GSE20..LHD..ATM SPORT PACKAGE |
47110-53262 |
— | ||
|
47110
|
47110
47110-53261
Support Assy, Brake Pedal
[10.2009 - 08.2010] GSE20..LHD..ATM ACCELERATOR PEDAL-ALUMINUM TYPE |
47110-53261 |
— | ||
| replacement | |||||
|
47110
|
47110
47110-53262
Support Assy, Brake Pedal
[10.2009 - 08.2010] GSE20..LHD..ATM ACCELERATOR PEDAL-ALUMINUM TYPE |
47110-53262 |
— | ||
|
47121
|
47121
47121-50020 Pad, Brake Pedal[08.2005 - 08.2008] GSE20..ATM |
47121-50020 |
from US $7.26 |
||
|
47121
|
47121
47121-53010 Pad, Brake Pedal[08.2005 - 07.2006] GSE20..ATM SPORT PACKAGE |
47121-53010 |
from US $41.14 |
||
|
47264A
|
47264A
90249-06180 Pin(For Push Rod)[08.2005 - 08.2008] ALE20,GSE20 |
90249-06180 |
US $0.96 |
||
|
91641C0814
|
91641C0814
91641-C0814 BOLTWWASHER |
91641-C0814 |
US $1.65 |
||
|
9046815005
|
9046815005
90468-15005 CLIP |
90468-15005 |
US $1.97 |
||
