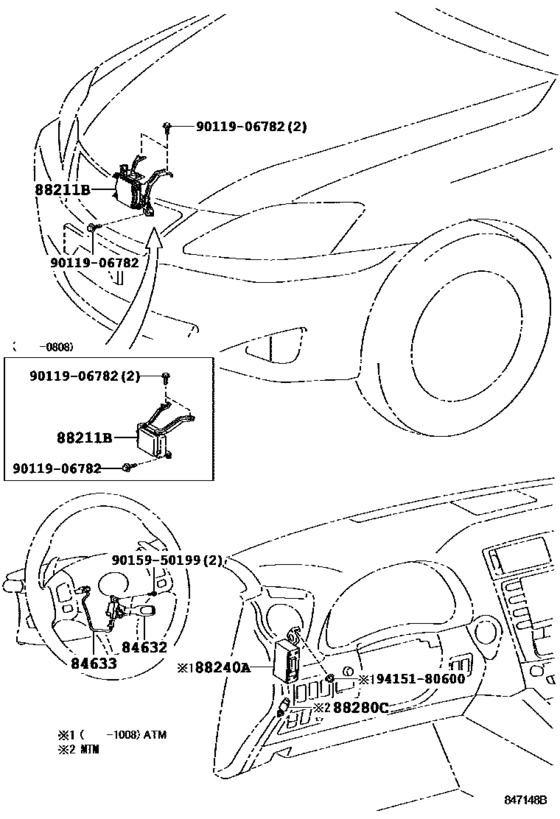

Cruise Control (Auto Drive) ([08.2005 - ] (0508- )LHD) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- General
- Frame
- GSE20
- grade
- LUX
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84632
|
84632
84632-34011 Switch Assy, Cruise Control Main[08.2005 - 08.2008] ALE20,GSE20 |
84632-34011 |
from US $70.83 |
||
|
84632
|
84632
84632-58011 Switch Assy, Cruise Control Main[08.2005 - 08.2008] GSE20..ATM PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE) |
84632-58011 |
from US $70.22 |
||
|
84633
|
84633
84633-48010 Wire, Cruise Control Switch[08.2005 - 08.2008] GSE20..ATM PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE) |
84633-48010 |
US $23.59 |
||
|
84633
|
84633
84633-48020 Wire, Cruise Control Switch[08.2005 - 08.2008] ALE20,GSE20 |
84633-48020 |
from US $9.14 |
||
|
88211B
|
88211B
88210-53010
Sensor Assy, Millimeter Wave Radar
[08.2005 - 08.2008] GSE20..ATM PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE) |
88210-53010 |
— | ||
|
88211B
|
88211B
88210-53060
Sensor Assy, Millimeter Wave Radar
[08.2008 - 08.2009] GSE20..ATM PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE) |
88210-53060 |
— | ||
| replacement | |||||
|
88211B
|
88211B
88210-53061 Sensor Assy, Millimeter Wave Radar[08.2008 - 08.2009] GSE20..ATM PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE) |
88210-53061 |
US $3,291.96 |
||
|
88211B
|
88211B
88210-53100
Sensor Assy, Millimeter Wave Radar
[08.2010 - 07.2012] GSE2# CRUISE CONTROL-WITH(RADAR) |
88210-53100 |
— | ||
| replacement | |||||
|
88211B
|
88211B
88210-53101
Sensor Assy, Millimeter Wave Radar
[08.2010 - 07.2012] GSE2# CRUISE CONTROL-WITH(RADAR) |
88210-53101 |
— | ||
|
88240A
|
88240A
88240-53020
Computer Assy, Distance Control
[08.2005 - 08.2008] GSE20..LHD..ATM PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE) |
88240-53020 |
— | ||
|
88240A
|
88240A
88240-53060
Computer Assy, Distance Control
[08.2008 - 08.2009] GSE20..LHD..ATM PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE) |
88240-53060 |
— | ||
|
88240A
|
88240A
88240-53100
Computer Assy, Distance Control
[08.2010 - 08.2012] GSE20..LHD CRUISE CONTROL-WITH(RADAR) |
88240-53100 |
— | ||
|
9011906782
|
9011906782
90119-06782 BOLT WWASHER |
90119-06782 |
from US $0.65 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.67 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
||
