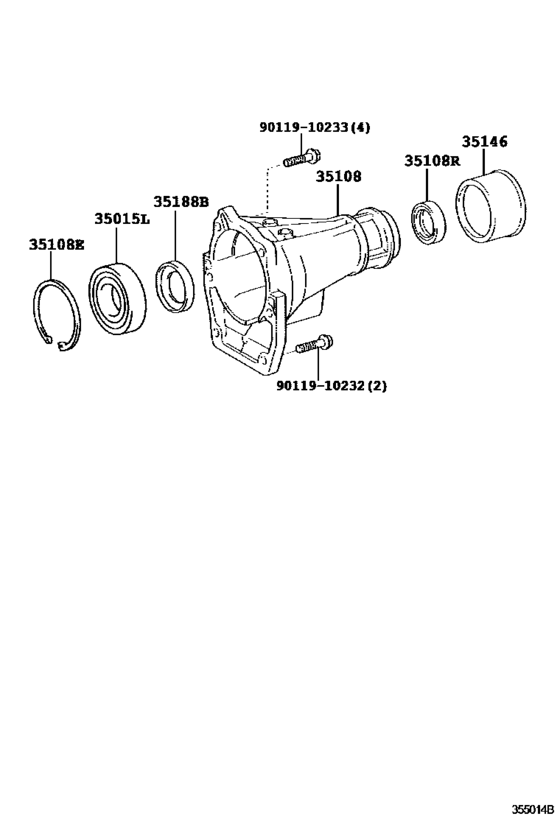

Extension Housing (Atm) ([08.2005 - ] A960E (0508- )GSE20..ATM) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- General
- Frame
- GSE20
- grade
- LUX
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35015L
|
35015L
90363-34001 Bearing, Radial Ball(For Transmission Case Adapter)[08.2005 - 03.2008] GSE20..ATM |
90363-34001 |
US $20.38 |
||
|
35015L
|
35015L
90363-34006 Bearing, Radial Ball(For Transmission Case Adapter)[03.2008 - 08.2008] GSE20..ATM |
90363-34006 |
US $14.15 |
||
|
35108
|
35108
35108-30260 Housing Sub-Assy, Extension (Atm)[08.2005 - 08.2008] GSE20..ATM |
35108-30260 |
US $235.87 |
||
|
35108E
|
35108E
90521-66006 Ring, Hole Snap (For Atm Extension Housing)[08.2005 - 08.2008] GSE20..ATM |
90521-66006 |
US $1.05 |
||
|
35108R
|
35108R
90311-40001 Seal, Oil(For Extension Housing)[08.2005 - 03.2008] GSE20..ATM |
90311-40001 |
from US $7.17 |
||
|
35108R
|
35108R
90311-40034
Seal, Oil (For Automatic Transmission Extension Housing)
[05.2008 - 08.2008] GSE20..ATM |
90311-40034 |
— | ||
| replacement | |||||
|
35108R
|
35108R
90311-40045 Seal, Oil (For Automatic Transmission Extension Housing)[05.2008 - 08.2008] GSE20..ATM |
90311-40045 |
from US $7.17 |
||
|
35146
|
35146
33146-30020 Deflector, Extension Housing Dust(Mtm)[08.2005 - 08.2008] GSE20..ATM |
33146-30020 |
from US $17.74 |
||
|
35188B
|
35188B
35188-35020 Retainer, Extension Housing Bush[08.2005 - 08.2008] GSE20..ATM |
35188-35020 |
US $33.20 |
||
|
9011910232
|
9011910232
90119-10232 Bolt (For Transmission Housing & Case Setting) |
90119-10232 |
US $1.97 |
||
|
9011910233
|
9011910233
90119-10233 New Genuine Part |
90119-10233 |
US $1.05 |
||
