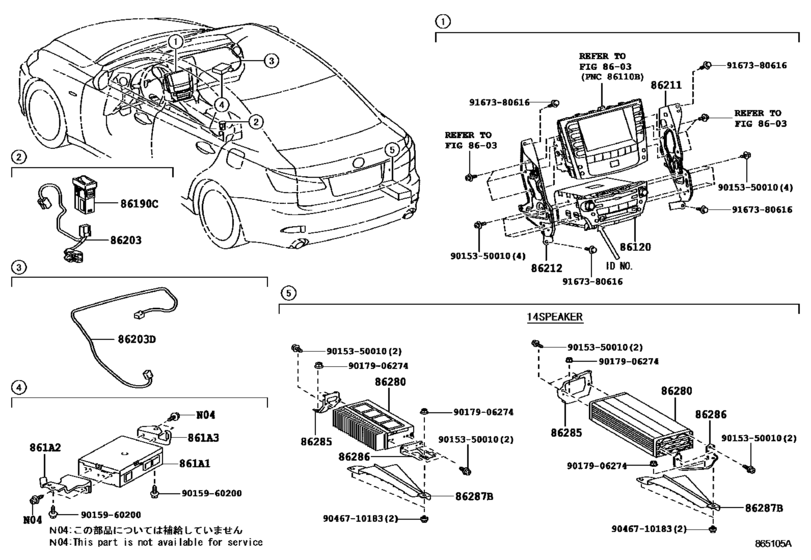

Radio Receiver & Amplifier & Condenser ([08.2012 - ] W/O(EMV) (1208- )LHD) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- General
- Frame
- GSE20
- grade
- LUX
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
861A1
|
861A1
861A0-48030 Computer, Multi-Media Interface[08.2009 - 08.2010] ALE20,GSE20 |
861A0-48030 |
US $286.83 |
||
|
861A1
|
861A1
861A0-77010 Computer Assy, Multi-Media Interface[08.2009 - 08.2010] ALE20;GSE20..ATM AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER; ALE20,GSE20 AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
861A0-77010 |
US $315.95 |
||
|
861A2
|
861A2
861A2-53010
Bracket, Multi-Media Interface, No.1
[08.2009 - 08.2010] ALE20,GSE20..LHD |
861A2-53010 |
— | ||
|
861A3
|
861A3
861A3-53010
Bracket, Multi-Media Interface, No.2
[08.2009 - 08.2010] ALE20,GSE20..LHD |
861A3-53010 |
— | ||
|
86120
|
86120
86120-53320
Receiver Assy, Radio
[02.2008 - 08.2008] GSE20..LHD..ATM PIONEER, ID=P1801,CHILE SPEC |
86120-53320 |
— | ||
|
86120
|
86120
86120-53330
Receiver Assy, Radio
[02.2008 - 08.2008] GSE20..LHD..ATM PIONEER, ID=P1800,CHILE SPEC&AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER |
86120-53330 |
— | ||
|
86120
|
86120
86120-53350
Receiver Assy, Radio
[08.2007 - 08.2008] GSE20..LHD..ATM PIONEER, ID=P2808,TAIWAN SPEC |
86120-53350 |
— | ||
|
86120
|
86120
86120-53360
Receiver Assy, Radio
[08.2007 - 08.2008] GSE20..LHD..ATM PIONEER, ID=P2807,TAIWAN SPEC&AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER |
86120-53360 |
— | ||
|
86120
|
86120
86120-53400
Receiver Assy, Radio
[08.2005 - 08.2008] ALE20,GSE20..LHD PIONEER, ID=P3803; GSE20..LHD PIONEER, ID=P3803,RUSSIA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER; GSE20..LHD PIONEER, ID=P3803,MOROCCO SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER; GSE20..LHD PIONEER, ID=P3803,RUS |
86120-53400 |
— | ||
|
86120
|
86120
86120-53410
Receiver Assy, Radio
[08.2005 - 08.2008] ALE20,GSE20..LHD PIONEER, ID=P3802,AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER |
86120-53410 |
— | ||
|
86120
|
86120
86120-53420
Receiver Assy, Radio
[08.2005 - 08.2008] ALE20,GSE20..LHD PIONEER, ID=P8600,AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
86120-53420 |
— | ||
|
86120
|
86120
86120-53500
Receiver Assy, Radio
[08.2007 - 08.2008] GSE20..LHD..ATM PIONEER, ID=P7512,TAIWAN SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
86120-53500 |
— | ||
|
86120
|
86120
86120-53510
Receiver Assy, Radio
[08.2007 - 08.2008] GSE20..LHD PIONEER, ID=P7513,RUSSIA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
86120-53510 |
— | ||
|
86120
|
86120
86120-53520
Receiver Assy, Radio
[09.2011 - 04.2013] GSE20..LHD PIONEER, ID=P10127,CHILE SPEC; GSE20..LHD PIONEER, ID=P10127,LATIN AMERICA SPEC; GSE20..LHD PIONEER, ID=P10127,CHILE SPEC;LATIN AMERICA SPEC |
86120-53520 |
— | ||
|
86120
|
86120
86120-53580
Receiver Assy, Radio
[08.2008 - 07.2009] GSE20..LHD..ATM PIONEER, ID=P1823,CHILE SPEC |
86120-53580 |
— | ||
|
86120
|
86120
86120-53610
Receiver Assy, Radio
[08.2008 - 07.2009] GSE20..RHD..ATM PIONEER, ID=P2850,HONG KONG SPEC; GSE20..RHD..ATM PIONEER, ID=P2850,SINGAPORE SPEC; GSE20..RHD..ATM PIONEER, ID=P2850,THAILAND SPEC; GSE20..LHD..ATM PIONEER, ID=P2850,TAIWAN SPEC; GSE20..RHD..ATM PIONEER, ID=P2850,MALAY |
86120-53610 |
— | ||
|
86120
|
86120
86120-53620
Receiver Assy, Radio
[08.2008 - 08.2009] GSE20..RHD..ATM PIONEER, ID=P2849,SINGAPORE SPEC&AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER; GSE20..RHD..ATM PIONEER, ID=P2849,THAILAND SPEC&AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER; GSE20..LHD..ATM PIONEER, ID=P2849,TAIWAN S |
86120-53620 |
— | ||
|
86120
|
86120
86120-53660
Receiver Assy, Radio
[08.2008 - 07.2009] ALE20,GSE20..LHD PIONEER, ID=P3817 |
86120-53660 |
— | ||
|
86120
|
86120
86120-53670
Receiver Assy, Radio
[09.2011 - 04.2013] GSE20..LHD PIONEER, ID=P10127,TAIWAN SPEC |
86120-53670 |
— | ||
|
86120
|
86120
86120-53680
Receiver Assy, Radio
[08.2008 - 08.2009] GSE20..LHD..ATM PIONEER, ID=P8612,AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
86120-53680 |
— | ||
|
86120
|
86120
86120-53760
Receiver Assy, Radio
[08.2008 - 07.2009] GSE20..LHD..ATM PIONEER, ID=P7532,TAIWAN SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
86120-53760 |
— | ||
|
86120
|
86120
86120-53770
Receiver Assy, Radio
[08.2008 - 07.2009] GSE20..LHD..ATM PIONEER, ID=P7531,RUSSIA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
86120-53770 |
— | ||
|
86120
|
86120
86120-53A30
Receiver Assy, Radio
[08.2009 - 08.2010] GSE20..LHD..ATM PIONEER, ID=P2876,TAIWAN SPEC |
86120-53A30 |
— | ||
|
86120
|
86120
86120-53A90
Receiver Assy, Radio
[08.2009 - 08.2010] GSE20..LHD..ATM PIONEER, ID=P7543,TAIWAN SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
86120-53A90 |
— | ||
| replacement | |||||
|
86120
|
86120
86120-53A91
Receiver Assy, Radio
[08.2009 - 08.2010] GSE20..LHD..ATM PIONEER, ID=P7543,TAIWAN SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
86120-53A91 |
— | ||
|
86120
|
86120
86120-53A91
Receiver Assy, Radio
[05.2011 - 08.2012] GSE20..LHD PIONEER,TAIWAN SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
86120-53A91 |
— | ||
|
86120
|
86120
86120-53B00
Receiver Assy, Radio
[08.2009 - 08.2010] ALE20,GSE20..LHD PIONEER, ID=P3830 |
86120-53B00 |
— | ||
| replacement | |||||
|
86120
|
86120
86120-53B01
Receiver Assy, Radio
[08.2009 - 08.2010] ALE20,GSE20..LHD PIONEER, ID=P3830 |
86120-53B01 |
— | ||
|
86120
|
86120
86120-53B01
Receiver Assy, Radio
[08.2012 - 04.2013] GSE20..LHD PIONEER, ID=P3830 |
86120-53B01 |
— | ||
|
86120
|
86120
86120-53B10
Receiver Assy, Radio
[08.2009 - 08.2010] ALE20..LHD;GSE20..LHD..ATM PIONEER, ID=P8623,AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
86120-53B10 |
— | ||
|
86120
|
86120
86120-53B20
Receiver Assy, Radio
[08.2009 - 08.2010] GSE20..LHD..ATM PIONEER, ID=P8624,RUSSIA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
86120-53B20 |
— | ||
|
86120
|
86120
86120-53C10
Receiver Assy, Radio
[08.2009 - 08.2010] ALE20,GSE20..LHD PIONEER, ID=P3832,AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
86120-53C10 |
— | ||
|
86120
|
86120
86120-53C60
Receiver Assy, Radio
[08.2009 - 08.2010] GSE20..LHD..ATM PIONEER, ID=P2883,CHILE SPEC |
86120-53C60 |
— | ||
|
86120
|
86120
86120-53E50
Receiver Assy, Radio
[08.2011 - 08.2012] GSE20..LHD PIONEER, ID=P10061,LATIN AMERICA SPEC&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
86120-53E50 |
— | ||
|
86190C
|
86190C
86190-53020 Adapter Assy, Stereo Jack, No.1[08.2005 - 08.2008] ALE20,GSE20 |
86190-53020 |
US $171.81 |
||
|
86190C
|
86190C
86190-53030 Adapter Assy, Stereo Jack, No.1[08.2008 - 07.2009] ALE20,GSE20 |
86190-53030 |
US $142.69 |
||
|
86190C
|
86190C
86190-53040 Adapter Assy, Stereo Jack, No.1STEREO JACK, NO.1 [08.2009 - 08.2010] ALE20,GSE20 |
86190-53040 |
US $113.57 |
||
|
86203
|
86203
86203-53010 Wire, RadioRADIO [08.2009 - 08.2010] ALE20,GSE20 |
86203-53010 |
US $13.40 |
||
|
86203D
|
86203D
86203-53020
Wire, Stereo Component, No.1
[08.2009 - 08.2010] GSE20..LHD..ATM |
86203-53020 |
— | ||
|
86203D
|
86203D
86203-53210
Wire, Stereo Component, No.1
[08.2012 - 04.2013] GSE20..LHD AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE20..LHD AUDIO-AM/FM DVD 13SPEAKER |
86203-53210 |
— | ||
|
86211
|
86211
86211-53020 Bracket, Radio, No.1[08.2005 - 08.2008] ALE20,GSE20 |
86211-53020 |
US $12.67 |
||
| replacement | |||||
|
86211
|
86211
86211-53030 Bracket, Radio, No.1[08.2005 - 08.2008] ALE20,GSE20 |
86211-53030 |
US $8.74 |
||
|
86211
|
86211
86211-53030 Bracket, Radio, No.1[08.2008 - 08.2010] ALE20,GSE20 |
86211-53030 |
US $8.74 |
||
|
86211
|
86211
86211-53070 Bracket, Radio, No.1[08.2012 - 04.2013] GSE21;GSE20..LHD AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE2# AUDIO-AM/FM DVD 13SPEAKER; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE20..RHD HONG KONG SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE20..RHD SINGAPORE SPEC&AUDIO- |
86211-53070 |
US $8.74 |
||
|
86212
|
86212
86212-53020 Bracket, Radio, No.2[08.2005 - 08.2008] ALE20,GSE20 |
86212-53020 |
US $12.67 |
||
| replacement | |||||
|
86212
|
86212
86212-53030 Bracket, Radio, No.2[08.2005 - 08.2008] ALE20,GSE20 |
86212-53030 |
US $9.32 |
||
|
86212
|
86212
86212-53030 Bracket, Radio, No.2[08.2008 - 08.2010] ALE20,GSE20 |
86212-53030 |
US $9.32 |
||
|
86212
|
86212
86212-53070 Bracket, Radio, No.2[08.2012 - 04.2013] GSE21;GSE20..LHD AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE2# AUDIO-AM/FM DVD 13SPEAKER; GSE20..RHD NEW ZEALAND SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE20..RHD HONG KONG SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE20..RHD SINGAPORE SPEC&AUDIO- |
86212-53070 |
US $8.74 |
||
|
86280
|
86280
86280-0W360 Amplifier Assy, Stereo Component[08.2005 - 08.2008] ALE20,GSE20 AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER; ALE20,GSE20 AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
86280-0W360 |
US $2,572.32 |
||
|
86280
|
86280
86280-0W740 Amplifier Assy, Stereo Component[08.2012 -] GSE2# AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
86280-0W740 |
US $2,125.76 |
||
|
86280
|
86280
86280-0W790 Amplifier Assy, Stereo ComponentSTEREO COMPONENT [08.2009 - 08.2010] ALE20;GSE20..ATM AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
86280-0W790 |
US $1,683.89 |
||
|
86280
|
86280
86280-53110 Amplifier Assy, Stereo Component[08.2005 - 08.2008] ALE20,GSE20 |
86280-53110 |
US $1,616.16 |
||
|
86280
|
86280
86280-53140
Amplifier Assy, Stereo Component
[08.2009 - 08.2010] ALE20,GSE20 |
86280-53140 |
— | ||
|
86280
|
86280
86280-53150
Amplifier Assy, Stereo Component
[08.2009 - 08.2010] ALE20,GSE20 AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
86280-53150 |
— | ||
| replacement | |||||
|
86280
|
86280
86280-53151 Amplifier Assy, Stereo Component[08.2009 - 08.2010] ALE20,GSE20 AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION |
86280-53151 |
US $2,111.20 |
||
|
86280
|
86280
86280-53160 Amplifier Assy, Stereo Component[08.2010 -] ALE20,GSE2# |
86280-53160 |
US $1,616.16 |
||
|
86280
|
86280
86280-53210 Amplifier Assy, Stereo Component[08.2012 -] GSE2# AUDIO-AM/FM DVD 13SPEAKER |
86280-53210 |
US $1,336.61 |
||
|
86285
|
86285
86285-53040 Bracket, Amplifier, No.1[08.2005 - 08.2008] ALE20,GSE20 |
86285-53040 |
US $14.71 |
||
|
86285
|
86285
86285-53050 Bracket, Amplifier, No.1[08.2005 - 08.2008] ALE20,GSE20 AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER; ALE20,GSE20 AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
86285-53050 |
US $13.98 |
||
|
86285
|
86285
86285-53060 Bracket, Amplifier, No.1AMPLIFIER, NO.1 [08.2009 - 08.2010] ALE20,GSE20 |
86285-53060 |
US $10.05 |
||
|
86285
|
86285
86285-53070 Bracket, Amplifier, No.1AMPLIFIER, NO.1 [08.2009 - 08.2010] ALE20;GSE20..ATM AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
86285-53070 |
US $9.32 |
||
|
86286
|
86286
86286-53040 Bracket, Amplifier, No.2[08.2005 - 08.2008] ALE20,GSE20 |
86286-53040 |
US $13.83 |
||
|
86286
|
86286
86286-53050 Bracket, Amplifier, No.2[08.2005 - 08.2008] ALE20,GSE20 AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER; ALE20,GSE20 AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
86286-53050 |
US $14.56 |
||
|
86286
|
86286
86286-53080 Bracket, Amplifier, No.2AMPLIFIER, NO.2 [08.2009 - 08.2010] ALE20;GSE20..ATM AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
86286-53080 |
US $10.48 |
||
|
86286
|
86286
86286-53090 Bracket, Amplifier, No.2AMPLIFIER, NO.2 [08.2009 - 08.2010] ALE20,GSE20 |
86286-53090 |
US $11.94 |
||
|
86287B
|
86287B
86287-53010 Cover, Amplifier[08.2005 - 08.2008] ALE20,GSE20 |
86287-53010 |
US $18.05 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.68 |
||
|
9015960200
|
9015960200
90159-60200 SCREW |
90159-60200 |
US $1.79 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9046710183
|
9046710183
90467-10183 Clip(For Luggage Compartment Trim Inner Cover) |
90467-10183 |
from US $0.82 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.63 |
||
