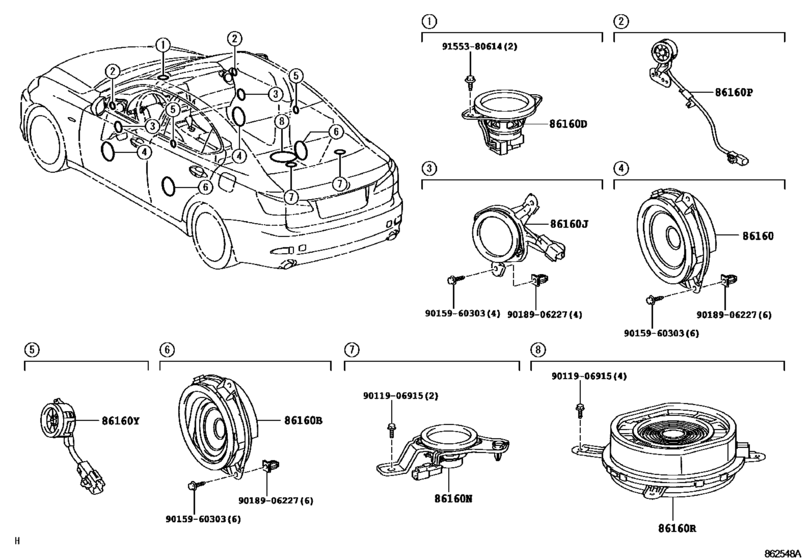

Speaker ([08.2005 - ] 14 SPEAKER (0508- )) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- General
- Frame
- GSE20
- grade
- LUX
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86160
|
86160
86160-0WB10 Speaker Assy, Front No.1[08.2005 - 08.2008] ALE20,GSE20 AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER; ALE20,GSE20 AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
86160-0WB10 |
US $178.21 |
||
|
86160
|
86160
86160-0WG20 Speaker Assy, Front No.1[08.2009 - 08.2010] ALE20;GSE20..ATM AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
86160-0WG20 |
from US $292.66 |
||
|
86160
|
86160
86160-53210 Speaker Assy, Front No.1[08.2005 - 08.2008] ALE20,GSE20 |
86160-53210 |
US $100.46 |
||
|
86160B
|
86160B
86160-0WF90 Speaker Assy, Rear[08.2005 - 08.2008] ALE20,GSE20 AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER; ALE20,GSE20 AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
86160-0WF90 |
from US $180.54 |
||
|
86160B
|
86160B
86160-0WS60 Speaker Assy, RearREAR [08.2009 - 08.2010] ALE20;GSE20..ATM AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
86160-0WS60 |
US $170.35 |
||
|
86160B
|
86160B
86160-53210 Speaker Assy, Front No.1[08.2005 - 08.2008] ALE20,GSE20 |
86160-53210 |
US $100.46 |
||
|
86160B
|
86160B
86160-60430 Speaker Assy, Rear[08.2009 - 08.2010] ALE20,GSE20 AUDIO-AM/FM CD-CHANGER 8SPEAKER(PIONEER) |
86160-60430 |
US $101.92 |
||
|
86160D
|
86160D
86160-0WC50 Speaker Assy, Stereo Component, Front[08.2005 - 08.2008] ALE20,GSE20 AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER; ALE20,GSE20 AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
86160-0WC50 |
from US $243.60 |
||
|
86160D
|
86160D
86160-0WN20 Speaker Assy, Stereo Component, FrontSTEREO COMPONENT, FRONT [08.2009 - 08.2010] ALE20;GSE20..ATM AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
86160-0WN20 |
US $353.72 |
||
|
86160J
|
86160J
86160-0WD40 Speaker Assy, Front No.3[08.2005 - 08.2008] ALE20,GSE20 AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER,RH; ALE20,GSE20 AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER,RH |
86160-0WD40 |
US $180.54 |
||
|
86160J
|
86160J
86160-0WD50 Speaker Assy, Front No.3[08.2005 - 08.2008] ALE20,GSE20 AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER,LH; ALE20,GSE20 AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER,LH |
86160-0WD50 |
US $180.54 |
||
|
86160J
|
86160J
86160-0WS40 Speaker Assy, Front No.3FRONT NO,3 [08.2009 - 08.2010] ALE20;GSE20..ATM AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER,RH |
86160-0WS40 |
US $99.01 |
||
|
86160J
|
86160J
86160-0WS50 Speaker Assy, Front No.3FRONT NO,3 [08.2009 - 08.2010] ALE20;GSE20..ATM AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER,LH |
86160-0WS50 |
US $99.01 |
||
|
86160J
|
86160J
86160-53240 Speaker Assy, Front No.3[08.2005 - 08.2008] ALE20,GSE20 RH |
86160-53240 |
US $87.36 |
||
|
86160J
|
86160J
86160-53250 Speaker Assy, Front No.3[08.2005 - 08.2008] ALE20,GSE20 LH |
86160-53250 |
US $87.36 |
||
|
86160N
|
86160N
86160-0WD90 Speaker Assy, Stereo Component, Rear[08.2005 - 08.2008] ALE20,GSE20 AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER,RH; ALE20,GSE20 AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER,RH |
86160-0WD90 |
US $224.63 |
||
|
86160N
|
86160N
86160-0WE00 Speaker Assy, Stereo Component, Rear[08.2005 - 08.2008] ALE20,GSE20 AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER,LH; ALE20,GSE20 AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER,LH |
86160-0WE00 |
US $180.54 |
||
|
86160N
|
86160N
86160-0WS80 Speaker Assy, Stereo Component, RearSTEREO COMPONENT, REAR [08.2009 - 08.2010] ALE20;GSE20..ATM AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER,RH |
86160-0WS80 |
US $99.01 |
||
|
86160N
|
86160N
86160-0WS90 Speaker Assy, Stereo Component, RearSTEREO COMPONENT, REAR [08.2009 - 08.2010] ALE20;GSE20..ATM AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER,LH |
86160-0WS90 |
US $99.01 |
||
|
86160P
|
86160P
86160-0WD20 Speaker Assy, Front No.2[08.2005 - 08.2008] ALE20,GSE20 AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER,RH; ALE20,GSE20 AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER,RH |
86160-0WD20 |
from US $131.04 |
||
|
86160P
|
86160P
86160-0WD30 Speaker Assy, Front No.2[08.2005 - 08.2008] ALE20,GSE20 AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER,LH; ALE20,GSE20 AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER,LH |
86160-0WD30 |
US $131.04 |
||
|
86160P
|
86160P
86160-53221 Speaker Assy, Front No.2[08.2005 - 08.2008] ALE20,GSE20 RH |
86160-53221 |
US $88.82 |
||
|
86160P
|
86160P
86160-53231 Speaker Assy, Front No.2[08.2005 - 08.2008] ALE20,GSE20 LH |
86160-53231 |
US $88.82 |
||
|
86160R
|
86160R
86150-53030 Speaker Assy, Stereo Component[08.2012 -] GSE2# AUDIO-AM/FM DVD 13SPEAKER |
86150-53030 |
US $259.17 |
||
|
86160R
|
86160R
86160-0WD80 Speaker Assy, Stereo Component[08.2005 - 08.2008] ALE20,GSE20 AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER; ALE20,GSE20 AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
86160-0WD80 |
US $851.76 |
||
|
86160R
|
86160R
86160-0WS70 Speaker Assy, Stereo ComponentSTEREO COMPONENT [08.2009 - 08.2010] ALE20;GSE20..ATM AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER |
86160-0WS70 |
US $740.12 |
||
|
86160R
|
86160R
86160-53300 Speaker Assy, Stereo Component[08.2005 - 08.2008] ALE20,GSE20 |
86160-53300 |
US $212.58 |
||
|
86160Y
|
86160Y
86160-0WD60 Speaker Assy, Rear No.2[08.2005 - 08.2008] ALE20,GSE20 AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER,RH; ALE20,GSE20 AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER,RH |
86160-0WD60 |
US $131.04 |
||
|
86160Y
|
86160Y
86160-0WD70 Speaker Assy, Rear No.2[08.2005 - 08.2008] ALE20,GSE20 AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER,LH; ALE20,GSE20 AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER,LH |
86160-0WD70 |
US $131.04 |
||
|
86160Y
|
86160Y
86160-53280 Speaker Assy, Rear No.2[08.2005 - 08.2008] ALE20,GSE20 |
86160-53280 |
US $88.82 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9018906227
|
9018906227
90189-06227 GROMMET SCREW |
90189-06227 |
from US $0.65 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $1.08 |
