Switch & Relay & Computer ([08.2011 - ] INSTRUMENT PANEL 1/2 (1108- )LHD) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- General
- Frame
- GSE20
- grade
- LUX
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?

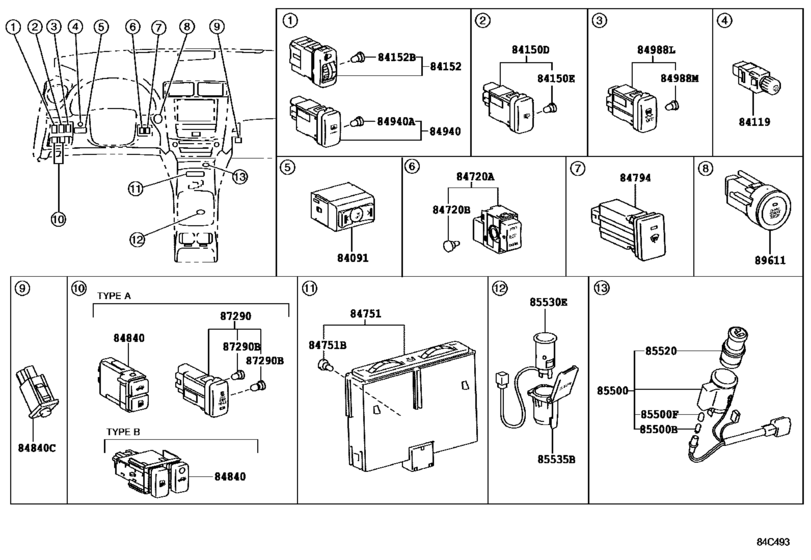

| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84091
|
84091
84091-53010 Switch Set, Satellite[08.2005 - 08.2008] ALE20,GSE20 |
84091-53010 |
US $60.72 |
||
|
84119
|
84119
84119-48010 Rheostat, Light Control[08.2005 - 08.2008] ALE20,GSE20 |
84119-48010 |
US $56.06 |
||
|
84150D
|
84150D
84150-60030 Switch Assy, Headlamp Cleaner[08.2005 - 08.2008] ALE20,GSE20..LUX HEADLAMP-DISCHARGE WITH/AUTO LEVELING |
84150-60030 |
US $60.28 |
||
|
84150E
|
84150E
90010-01039 Blub, Center Cluster Module Switch[08.2005 - 08.2008] ALE20,GSE20..LUX 14V0.91W,W(GREEN CAP,HEADLAMP-DISCHARGE WITH/AUTO LEVELING |
90010-01039 |
from US $3.08 |
||
|
84152
|
84152
84152-53020 Switch, Headlamp Leveling[08.2005 - 08.2008] ALE20,GSE20..LUX |
84152-53020 |
US $52.94 |
||
|
84152B
|
84152B
90010-08107 Bulb (For Headlamp Leveling Switch)[08.2005 - 08.2008] ALE20,GSE20..LUX 14V 40MA,W(GREEN CAP) |
90010-08107 |
from US $2.60 |
||
|
84720A
|
84720A
84720-30330 Switch Assy, Pattern Select[08.2005 - 08.2008] GSE20..ATM |
84720-30330 |
US $59.40 |
||
|
84720A
|
84720A
84721-53010 Switch Assy, Pattern Select, No.1[08.2011 -] GSE2# |
84721-53010 |
US $82.99 |
||
|
84720B
|
84720B
84999-10710 Bulb, Throttle Position Switch[08.2005 - 08.2008] GSE20..ATM 14V 0.56W |
84999-10710 |
from US $6 |
||
|
84720B
|
84720B
90010-01162 Bulb (For Pattern Select Switch)[08.2011 -] GSE2# 14V 0.84W,W(CAP) |
90010-01162 |
US $4.80 |
||
|
84751
|
84751
84751-30180 Switch, Seat Heater[08.2005 - 08.2008] ALE20,GSE20 SEAT HEATER-HEAT & COOL |
84751-30180 |
US $195.10 |
||
|
84751
|
84751
84751-30190 Switch, Seat Heater[08.2005 - 08.2008] ALE20,GSE20 SEAT HEATER-WITH(DRIVER & PASSENGER SEAT) |
84751-30190 |
US $174.72 |
||
|
84751B
|
84751B
90010-01070 Bulb, Seat Heater Switch[08.2005 - 08.2008] ALE20,GSE20 14V 1.8W,W(GREEN CAP),SEAT HEATER-WITH(DRIVER & PASSENGER SEAT); ALE20,GSE20 14V 1.8W,W(GREEN CAP),SEAT HEATER-HEAT & COOL |
90010-01070 |
from US $4.73 |
||
|
84794
|
84794
84794-33020
Switch, Fr Wiper Deicer
[08.2005 - 08.2008] ALE20,GSE20 |
84794-33020 |
— | ||
| replacement | |||||
|
84794
|
84794
84794-35020 Switch, Fr Wiper Deicer[08.2005 - 08.2008] ALE20,GSE20 |
84794-35020 |
US $32.26 |
||
|
84794
|
84794
84794-52010 Switch, Fr Wiper Deicer[08.2011 -] ALE20,GSE20..LHD WITHOUT(COLD AREA SPEC) |
84794-52010 |
US $39.75 |
||
| replacement | |||||
|
84794
|
84794
84794-52011 Switch, Fr Wiper Deicer[08.2011 -] ALE20,GSE20..LHD WITHOUT(COLD AREA SPEC) |
84794-52011 |
US $35.96 |
||
|
84840
|
84840
84840-33050 Switch Assy, Luggage Compartment Door Opening[08.2005 - 07.2006] ALE20,GSE20 TYPE A:REFER ILLUST. |
84840-33050 |
US $63.19 |
||
|
84840
|
84840
84840-33080 Switch Assy, Luggage Compartment Door Opening[07.2006 - 08.2008] ALE20,GSE20 TYPE B:REFER ILLUST. |
84840-33080 |
US $52.85 |
||
|
84840C
|
84840C
84840-24020 Switch Assy, Luggage Door Opening, Cancel[08.2005 - 08.2008] ALE20,GSE20 |
84840-24020 |
US $30.23 |
||
|
84940
|
84940
84940-22010 Switch Assy, Curtain[08.2005 - 08.2008] ALE20,GSE20 LUXURY PACKAGE |
84940-22010 |
US $47.76 |
||
|
84940A
|
84940A
90010-01062 Bulb, Hdeadlamp Swivel Main Switch[08.2005 - 08.2008] ALE20,GSE20 14V0.63W,W(GREEN CAP),LUXURY PACKAGE |
90010-01062 |
from US $3.55 |
||
|
84988L
|
84988L
84988-30140 Switch, Vsc Off[07.2006 - 08.2008] ALE20,GSE20 |
84988-30140 |
US $47.76 |
||
|
84988L
|
84988L
84988-53010 Switch, Vsc Off[08.2011 -] ALE20,GSE2# |
84988-53010 |
US $39.60 |
||
|
84988M
|
84988M
90010-01039 Blub, Center Cluster Module Switch[08.2011 -] ALE20,GSE2# 14V0.91W,W(GREEN CAP |
90010-01039 |
from US $3.08 |
||
|
84988M
|
84988M
90010-01137
Bulb (For Pattern Select Switch)
[07.2006 - 08.2008] ALE20,GSE20 14V 0.63W |
90010-01137 |
— | ||
| replacement | |||||
|
84988M
|
84988M
90010-01139 Bulb (For Pattern Select Switch)[07.2006 - 08.2008] ALE20,GSE20 14V 0.63W |
90010-01139 |
US $4.56 |
||
|
85500
|
85500
85500-30520 Lighter Assy, Cigarette[08.2005 - 08.2008] ALE20,GSE20 |
85500-30520 |
from US $45.90 |
||
|
85500B
|
85500B
90010-01111 Bulb, Cigarette Lighter[08.2005 - 08.2008] ALE20,GSE20 13.5V 2W |
90010-01111 |
US $4.37 |
||
|
85500F
|
85500F
84998-10510 Cap, Cigarette Lighter Bulb[08.2005 - 08.2008] ALE20,GSE20 |
84998-10510 |
US $4.12 |
||
|
85520
|
85520
85520-89101 Knob And Element Assy, Cigarette Lighter[08.2005 - 08.2008] ALE20,GSE20 |
85520-89101 |
from US $16.74 |
||
|
85530E
|
85530E
85530-53040 Socket Assy, Power Outlet, No.3[08.2005 - 08.2008] ALE20,GSE20 |
85530-53040 |
US $37.56 |
||
|
85530E
|
85530E
85530-53050 Socket Assy, Power Outlet, No.3[08.2008 - 08.2010] ALE20,GSE20 |
85530-53050 |
US $26.06 |
||
|
85535B
|
85535B
85535-50020 Cover, Power Outlet Socket, No.1[08.2005 - 08.2008] ALE20,GSE20 |
85535-50020 |
from US $5.76 |
||
|
89611
|
89611
89611-30020 Switch, Push Start[08.2005 - 02.2008] ALE20,GSE20 |
89611-30020 |
US $196.56 |
||
| replacement | |||||
|
89611
|
89611
89611-30025 Switch, Push Start[08.2005 - 02.2008] ALE20,GSE20 |
89611-30025 |
US $153.70 |
||
|
89611
|
89611
89611-30021 Switch, Push Start[03.2008 - 08.2008] ALE20,GSE20 |
89611-30021 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-30025 Switch, Push Start[03.2008 - 08.2008] ALE20,GSE20 |
89611-30025 |
US $153.70 |
||
|
89611
|
89611
89611-30022 Switch, Push StartPUSH START [02.2010 - 08.2010] ALE20,GSE20 |
89611-30022 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-30025 Switch, Push Start[02.2010 - 08.2010] ALE20,GSE20 |
89611-30025 |
US $153.70 |
||
|
89611
|
89611
89611-30023 Switch, Push Start[05.2011 - 04.2012] ALE20,GSE2# |
89611-30023 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-30025 Switch, Push Start[05.2011 - 04.2012] ALE20,GSE2# |
89611-30025 |
US $153.70 |
||
|
89611
|
89611
89611-30024
Switch, Push Start
[05.2012 -] ALE20,GSE2# |
89611-30024 |
— | ||
| replacement | |||||
|
89611
|
89611
89611-30025 Switch, Push Start[05.2012 -] ALE20,GSE2# |
89611-30025 |
US $153.70 |
||
