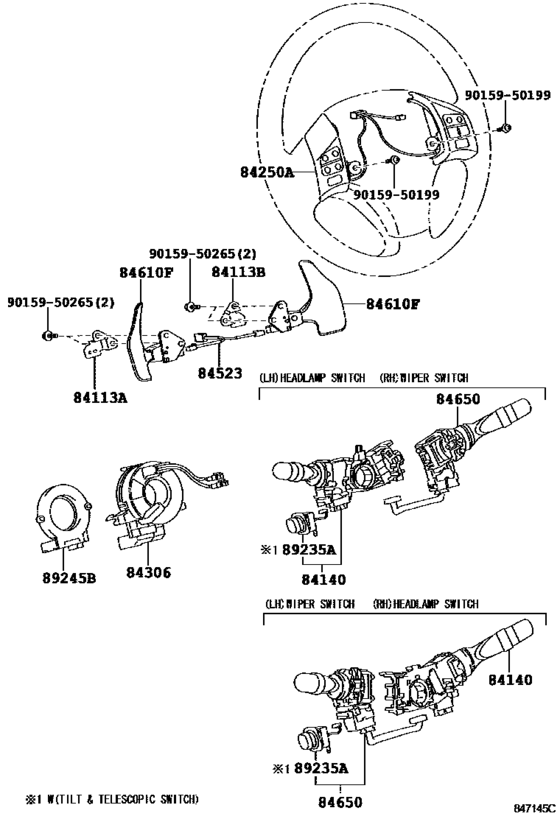

Switch & Relay & Computer ([08.2005 - ] STEERING (0508- )) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- General
- Frame
- GSE20
- grade
- LUX
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84113A
|
84113A
84113-52010 Bracket, Switch, No.1[08.2005 - 08.2008] GSE20..ATM |
84113-52010 |
US $3.20 |
||
|
84113B
|
84113B
84113-52020 Bracket, Switch, No.2[08.2005 - 08.2008] GSE20..ATM |
84113-52020 |
US $3.20 |
||
|
84140
|
84140
84140-30310 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [08.2005 - 08.2008] ALE20,GSE20..LUX LUXURY PACKAGE; GSE20 SPORT PACKAGE |
84140-30310 |
US $198.02 |
||
| replacement | |||||
|
84140
|
84140
84140-30311 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [08.2005 - 08.2008] ALE20,GSE20..LUX LUXURY PACKAGE; GSE20 SPORT PACKAGE |
84140-30311 |
from US $125.22 |
||
|
84140
|
84140
84140-30311 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [08.2008 - 08.2010] GSE20..ATM;ALE20..LUX;ALE20..LHD..SPO LUXURY PACKAGE; GSE20..ATM;ALE20..LHD..SPO SPORT PACKAGE |
84140-30311 |
from US $125.22 |
||
|
84140
|
84140
84140-42110
Switch Assy, Headlamp Dimmer
[08.2005 - 08.2008] ALE20,GSE20..LUX |
84140-42110 |
— | ||
| replacement | |||||
|
84140
|
84140
84140-42111 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [08.2005 - 08.2008] ALE20,GSE20..LUX |
84140-42111 |
from US $100.46 |
||
|
84140
|
84140
84140-42111 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [08.2008 - 08.2010] ALE20..LHD..SPO;ALE20,GSE20..LUX |
84140-42111 |
from US $100.46 |
||
|
84250A
|
84250A
84250-53020-C0 Switch Assy, Steering Pad[08.2005 - 08.2008] GSE20..ATM BLACK,TRIM0#,1#,2# |
84250-53020-C0 |
US $135.41 |
||
|
84250A
|
84250A
84250-53030-C0 Switch Assy, Steering Pad[08.2005 - 08.2008] GSE20..ATM PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE),BLACK,TRIM0#,1#,2# |
84250-53030-C0 |
US $144.14 |
||
|
84250A
|
84250A
84250-53070-C0 Switch Assy, Steering Pad[08.2009 - 08.2010] ALE20,GSE20..MTM BLACK,TRIM0#,1#,2#; GSE20..ATM STEERING WHEEL-LEATHER,BLACK,TRIM0#,1#,2# |
84250-53070-C0 |
US $147.06 |
||
|
84250A
|
84250A
84250-53080-C0 Switch Assy, Steering Pad[08.2005 - 08.2008] GSE20..ATM AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER,BLACK,TRIM0#,1#,2# |
84250-53080-C0 |
US $147.06 |
||
|
84250A
|
84250A
84250-53090-C0
Switch Assy, Steering Pad
[08.2005 - 08.2008] GSE20..ATM PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE)&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14 SPEAKER,BLACK,TRIM0#,1#,2# |
84250-53090-C0 |
— | ||
|
84250A
|
84250A
84250-53100-C0 Switch Assy, Steering Pad[08.2009 - 08.2010] GSE20..ATM CRUISE CONTROL-WITH(RADAR)&STEERING WHEEL-LEATHER,BLACK,TRIM0#,1#,2# |
84250-53100-C0 |
US $154.34 |
||
|
84250A
|
84250A
84250-53120
Switch Assy, Steering Pad
[08.2010 - 12.2010] GSE21; GSE20..RHD NEW ZEALAND SPEC; GSE20..RHD HONG KONG SPEC; GSE20..RHD SINGAPORE SPEC; GSE20..RHD THAILAND SPEC; GSE20..RHD AUSTRALIA SPEC; GSE20..RHD MALAYSIA SPEC; GSE20..LHD CHILE SPEC; GSE20..LHD TAIWAN SPEC&CRUISE CONTROL-WITH; |
84250-53120 |
— | ||
|
84250A
|
84250A
84250-53121
Switch Assy, Steering Pad
[12.2010 - 08.2011] GSE21; GSE20..RHD NEW ZEALAND SPEC; GSE20..RHD HONG KONG SPEC; GSE20..RHD SINGAPORE SPEC; GSE20..RHD THAILAND SPEC; GSE20..RHD AUSTRALIA SPEC; GSE20..RHD MALAYSIA SPEC; GSE20..LHD CHILE SPEC; GSE20..LHD TAIWAN SPEC&CRUISE CONTROL-WITH; |
84250-53121 |
— | ||
|
84250A
|
84250A
84250-53130 Switch Assy, Steering Pad[08.2010 - 12.2010] ALE20; GSE20 STEERING WHEEL-LEATHER |
84250-53130 |
US $173.26 |
||
|
84250A
|
84250A
84250-53131 Switch Assy, Steering Pad[12.2010 -] GSE20 STEERING WHEEL-LEATHER |
84250-53131 |
US $173.26 |
||
|
84250A
|
84250A
84250-53140 Switch Assy, Steering Pad[08.2010 - 12.2010] GSE20; GSE20..RHD NEW ZEALAND SPEC&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION); GSE20..RHD HONG KONG SPEC&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION); GSE20..RHD SINGAPORE SPEC&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION); GSE20..RHD |
84250-53140 |
US $173.26 |
||
|
84250A
|
84250A
84250-53141 Switch Assy, Steering Pad[12.2010 - 08.2011] GSE20..RHD NEW ZEALAND SPEC&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION); GSE20..RHD HONG KONG SPEC&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION); GSE20..RHD SINGAPORE SPEC&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION); GSE20..RHD THAILA |
84250-53141 |
US $144.14 |
||
|
84250A
|
84250A
84250-53170 Switch Assy, Steering Pad[08.2010 - 12.2010] GSE20..RHD NEW ZEALAND SPEC&CRUISE CONTROL-WITH(RADAR)&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIG ATION); GSE20..RHD AUSTRALIA SPEC&CRUISE CONTROL-WITH(RADAR)&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGAT ION); GSE21 PRE-COLLISION SYSTEM-WITH(* |
84250-53170 |
US $182 |
||
|
84250A
|
84250A
84250-53171 Switch Assy, Steering Pad[12.2010 - 08.2012] GSE20..LHD CRUISE CONTROL-WITH(RADAR) |
84250-53171 |
US $151.42 |
||
|
84306
|
84306
84306-48030 Cable Sub-Assy, Spiral[08.2005 - 08.2008] ALE20,GSE20 |
84306-48030 |
US $147.04 |
||
| replacement | |||||
|
84306
|
84306
84306-48031 CABLE SUBASSY[08.2005 - 08.2008] ALE20,GSE20 |
84306-48031 |
from US $141.19 |
||
|
84523
|
84523
84523-52020 Wire, Switch No.1[08.2005 - 08.2008] GSE20..ATM |
84523-52020 |
US $18.93 |
||
|
84610F
|
84610F
84610-53020 Switch Assy, Transmission Shift[08.2005 - 08.2008] GSE20..ATM SHIFT DOWN |
84610-53020 |
US $120.85 |
||
|
84610F
|
84610F
84610-53030 Switch Assy, Transmission Shift[08.2005 - 08.2008] GSE20..ATM SHIFT UP |
84610-53030 |
US $120.85 |
||
|
84610F
|
84610F
84610-53060 Switch Assy, Transmission Shift[08.2010 - 12.2010] GSE2# SHIFT DOWN |
84610-53060 |
US $120.85 |
||
|
84610F
|
84610F
84610-53061 Switch Assy, Transmission Shift[12.2010 - 04.2013] GSE2# SHIFT DOWN |
84610-53061 |
US $100.46 |
||
|
84610F
|
84610F
84610-53070 Switch Assy, Transmission Shift[08.2010 - 12.2010] GSE2# SHIFT UP |
84610-53070 |
US $120.85 |
||
|
84610F
|
84610F
84610-53071 Switch Assy, Transmission Shift[12.2010 - 04.2013] GSE2# SHIFT UP |
84610-53071 |
US $100.46 |
||
|
84650
|
84650
84652-30540
Switch Assy, Windshield Wiper
[08.2005 - 09.2005] GSE20 |
84652-30540 |
— | ||
| replacement | |||||
|
84650
|
84650
84652-30542 Switch Assy, Windshield WiperWINDSHIELD WIPER [08.2005 - 09.2005] GSE20 |
84652-30542 |
US $90.27 |
||
|
84650
|
84650
84652-30541 Switch Assy, Windshield WiperWINDSHIELD WIPER [09.2005 - 08.2008] ALE20,GSE20..LUX |
84652-30541 |
US $131.04 |
||
| replacement | |||||
|
84650
|
84650
84652-30542 Switch Assy, Windshield WiperWINDSHIELD WIPER [09.2005 - 08.2008] ALE20,GSE20..LUX |
84652-30542 |
US $90.27 |
||
|
84650
|
84650
84652-30542 Switch Assy, Windshield WiperWINDSHIELD WIPER [08.2008 - 08.2010] ALE20..LHD..SPO;ALE20,GSE20..LUX |
84652-30542 |
US $90.27 |
||
|
84650
|
84650
84652-30550
Switch Assy, Windshield Wiper
[08.2005 - 09.2005] GSE20 LUXURY PACKAGE; GSE20 SPORT PACKAGE |
84652-30550 |
— | ||
| replacement | |||||
|
84650
|
84650
84652-30552
Switch Assy, Windshield Wiper
[08.2005 - 09.2005] GSE20 LUXURY PACKAGE; GSE20 SPORT PACKAGE |
84652-30552 |
— | ||
|
84650
|
84650
84652-30551 Switch Assy, Windshield WiperWINDSHIELD WIPER [09.2005 - 08.2008] ALE20,GSE20..LUX LUXURY PACKAGE; GSE20 SPORT PACKAGE |
84652-30551 |
US $136.86 |
||
| replacement | |||||
|
84650
|
84650
84652-30552
Switch Assy, Windshield Wiper
[09.2005 - 08.2008] ALE20,GSE20..LUX LUXURY PACKAGE; GSE20 SPORT PACKAGE |
84652-30552 |
— | ||
|
84650
|
84650
84652-30552
Switch Assy, Windshield Wiper
[08.2008 - 08.2010] GSE20..ATM;ALE20..LUX;ALE20..LHD..SPO LUXURY PACKAGE; GSE20..ATM;ALE20..LHD..SPO SPORT PACKAGE |
84652-30552 |
— | ||
|
89235A
|
89235A
89235-48010 Switch, Tilt & Telescopic[08.2005 - 08.2008] ALE20,GSE20..LUX LUXURY PACKAGE; GSE20 SPORT PACKAGE |
89235-48010 |
US $40.19 |
||
|
89245B
|
89245B
89245-52030 Sensor, Steering[08.2005 - 08.2008] ALE20,GSE20 |
89245-52030 |
from US $211.41 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.67 |
||
|
9015950265
|
9015950265
90159-50265 New Genuine Part |
90159-50265 |
US $1.25 |
||
