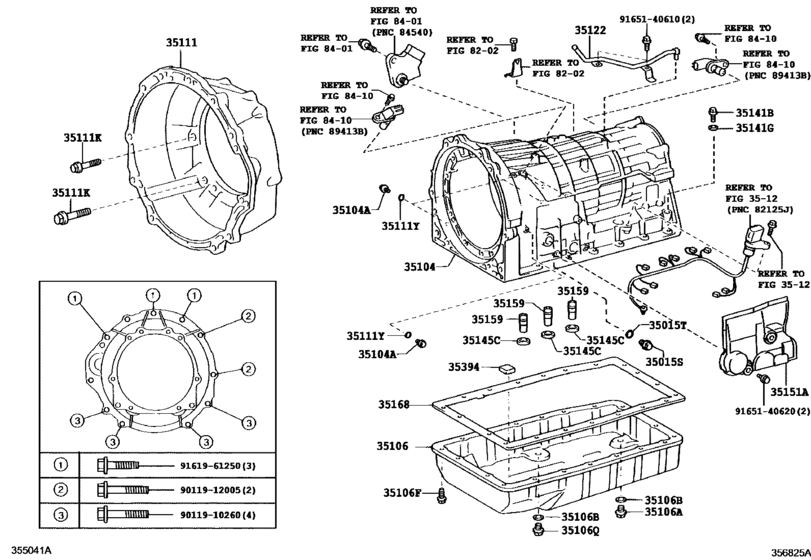

Transmission Case & Oil Pan (Atm) ([08.2005 - ] A960E (0508- )GSE20..ATM) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- General
- Frame
- GSE20
- grade
- LUX
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35015S
|
35015S
90341-18059 Plug, W/head Straight Screw(For Transmission Case Adapter)[08.2005 - 08.2008] GSE20..ATM |
90341-18059 |
from US $3.33 |
||
|
35015T
|
35015T
90301-15004 Ring, O(For Oil Cooler Tube Union)[08.2005 - 08.2008] GSE20..ATM |
90301-15004 |
from US $1.52 |
||
|
35104
|
35104
35104-22080 Case Sub-Assy, Automatic Transmission[08.2005 - 08.2008] GSE20..ATM |
35104-22080 |
from US $607.15 |
||
|
35104A
|
35104A
90341-08001 Plug, Transaxle Case, No.1[08.2005 - 08.2008] GSE20..ATM |
90341-08001 |
from US $1.48 |
||
|
35106
|
35106
35106-30270 Pan Sub-Assy, Automatic Transmission Oil[08.2005 - 08.2008] GSE20..ATM |
35106-30270 |
from US $73.56 |
||
|
35106A
|
35106A
90341-10011 Drain Plug (No Type)[08.2005 - 08.2008] GSE20..ATM |
90341-10011 |
from US $1.79 |
||
|
35106B
|
35106B
35178-30010 Drain Plug Gasket[08.2005 - 08.2008] GSE20..ATM |
35178-30010 |
from US $1.63 |
||
|
35106F
|
35106F
90119-06117
Bolt (For Automatic Transmission Oil Pan)
[08.2005 - 09.2006] GSE20..ATM |
90119-06117 |
— | ||
| replacement | |||||
|
35106F
|
35106F
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)[08.2005 - 09.2006] GSE20..ATM |
90119-06173 |
from US $0.74 |
||
|
35106F
|
35106F
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)[10.2006 - 08.2008] GSE20..ATM |
90119-06173 |
from US $0.74 |
||
|
35106Q
|
35106Q
90341-10021 Plug, Drain(Hv) (Check)[08.2005 - 08.2008] GSE20..ATM |
90341-10021 |
from US $2.01 |
||
|
35111
|
35111
35111-22110 Housing, Automatic Transmission[08.2005 - 08.2008] GSE20..ATM |
35111-22110 |
US $250.43 |
||
|
35111K
|
35111K
90119-10232 Bolt (For Transmission Housing & Case Setting)[08.2005 - 08.2008] GSE20..ATM *10-1.5PX35-30 |
90119-10232 |
US $1.97 |
||
|
35111K
|
35111K
90119-10947 Bolt (For Transmission Housing & Case Setting)[08.2005 - 08.2008] GSE20..ATM *10-1.50PX35-29.3 |
90119-10947 |
from US $0.93 |
||
|
35111K
|
35111K
90119-12378 Bolt (For Transmission Housing & Case Setting)[08.2005 - 08.2008] GSE20..ATM *12-1.75PX38-30 |
90119-12378 |
from US $1.48 |
||
|
35111Y
|
35111Y
90301-06196 O Ring, Transaxle Case, No.1[08.2005 - 08.2008] GSE20..ATM |
90301-06196 |
from US $2.36 |
||
|
35122
|
35122
90930-03182 Tube, Breather (For Automatic Transaxle)[08.2005 - 08.2008] GSE20..ATM |
90930-03182 |
US $3.64 |
||
|
35141B
|
35141B
90341-14011 Plug, Automatic Transmission Case[08.2005 - 08.2008] GSE20..ATM |
90341-14011 |
from US $3.14 |
||
|
35141G
|
35141G
90301-11030 Ring, O(For Oil Cooler Tube Union)[08.2005 - 08.2008] GSE20..ATM |
90301-11030 |
from US $2.09 |
||
|
35145C
|
35145C
35145-60020 Gasket, Transaxle Case[08.2005 - 08.2008] GSE20..ATM |
35145-60020 |
from US $6.45 |
||
|
35151A
|
35151A
35151-22020 Cover, Transaxle Case, Upper[08.2005 - 08.2008] GSE20..ATM |
35151-22020 |
US $35.95 |
||
|
35159
|
35159
35159-60010 Gasket, Brake Drum[08.2005 - 08.2008] GSE20..ATM |
35159-60010 |
from US $5.59 |
||
|
35168
|
35168
35168-22020 Gasket, Automatic Transmission Oil Pan[08.2005 - 08.2008] GSE20..ATM |
35168-22020 |
from US $14.40 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[08.2005 - 08.2008] GSE20..ATM |
35394-30011 |
from US $5.43 |
||
|
9011910260
|
9011910260
90119-10260 Bolt (For Transmission Housing & Engine Setting) |
90119-10260 |
from US $2.05 |
||
|
9011912005
|
9011912005
90119-12005 Bolt(For Transaxle Case & Engine Setting) |
90119-12005 |
US $2.80 |
||
|
9161961250
|
9161961250
91619-61250 Bolt(For Transmission Case & Engine Setting) |
91619-61250 |
from US $1.90 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.87 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
from US $0.84 |
||
