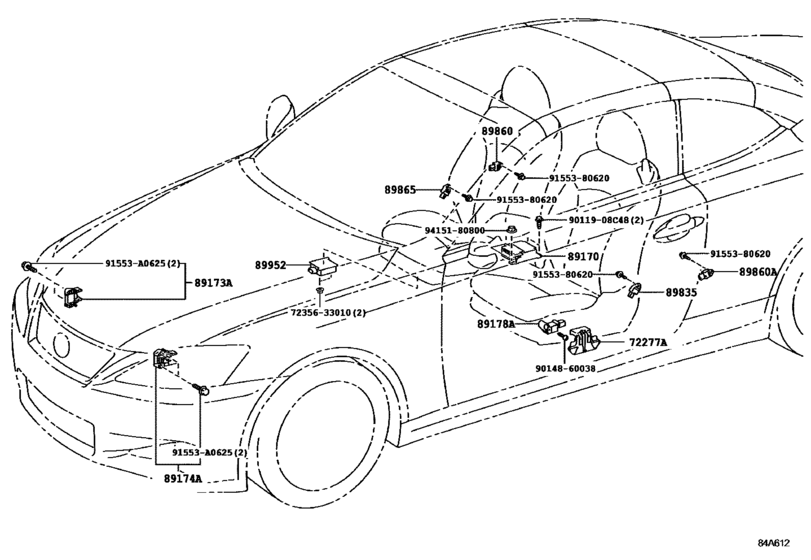

Air Bag ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2012
- Sales region
- U.S.A.
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 04.2009
- To
- 08.2012
- Gear Shift Type
- 6F
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
72277A
|
72277A
72277-33021 Protector, Seat Slide Position Sensor[04.2009 - 07.2015] GSE2# |
72277-33021 |
US $5.53 |
||
|
89170
|
89170
89170-53210 Sensor Assy, Air BagAIR BAG [04.2009 - 08.2012] GSE2# |
89170-53210 |
US $374.15 |
||
|
89173A
|
89173A
89173-39375 Sensor, Air Bag, Front Rh[04.2009 - 08.2012] GSE2# |
89173-39375 |
US $110.66 |
||
|
89174A
|
89174A
89173-39375 Sensor, Air Bag, Front Rh[04.2009 - 08.2012] GSE2# |
89173-39375 |
US $110.66 |
||
|
89178A
|
89178A
89178-33050 Sensor, Seat Position Air Bag[04.2009 - 07.2015] GSE2# |
89178-33050 |
from US $33.83 |
||
|
89835
|
89835
89831-60010 Sensor, Door Side Air Bag, Lh[04.2009 - 08.2012] GSE2# |
89831-60010 |
US $147.06 |
||
|
89860
|
89860
89831-28020 Sensor, Door Side Air Bag, Lh[04.2009 - 08.2012] GSE2# |
89831-28020 |
from US $108.62 |
||
|
89860A
|
89860A
89831-28020 Sensor, Door Side Air Bag, Lh[04.2009 - 08.2012] GSE2# |
89831-28020 |
from US $108.62 |
||
|
89865
|
89865
89831-60010 Sensor, Door Side Air Bag, Lh[04.2009 - 08.2012] GSE2# |
89831-60010 |
US $147.06 |
||
|
89952
|
89952
89952-0W120
Computer, Occupant Detection
[04.2009 - 07.2011] GSE2#; GSE20..6FC KOREA SPEC |
89952-0W120 |
— | ||
| replacement | |||||
|
89952
|
89952
89952-0W121
Computer, Occupant Detection
[04.2009 - 07.2011] GSE2#; GSE20..6FC KOREA SPEC |
89952-0W121 |
— | ||
|
89952
|
89952
89952-0W121
Computer, Occupant Detection
[08.2011 - 07.2015] GSE2#; GSE20..6FC KOREA SPEC |
89952-0W121 |
— | ||
|
91553A0625
|
91553A0625
91553-A0625 Direct |
91553-A0625 |
US $1.08 |
||
|
9011908C48
|
9011908C48
90119-08C48
Direct
|
90119-08C48 |
— | ||
|
7235633010
|
7235633010
72356-33010
Nut, Side Support, Rh
|
72356-33010 |
— | ||
|
9014860038
|
9014860038
90148-60038 New Genuine Part |
90148-60038 |
US $0.87 |
||
|
9155380620
|
9155380620
91553-80620 BOLT FLANGE |
91553-80620 |
US $1.08 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.78 |
||
