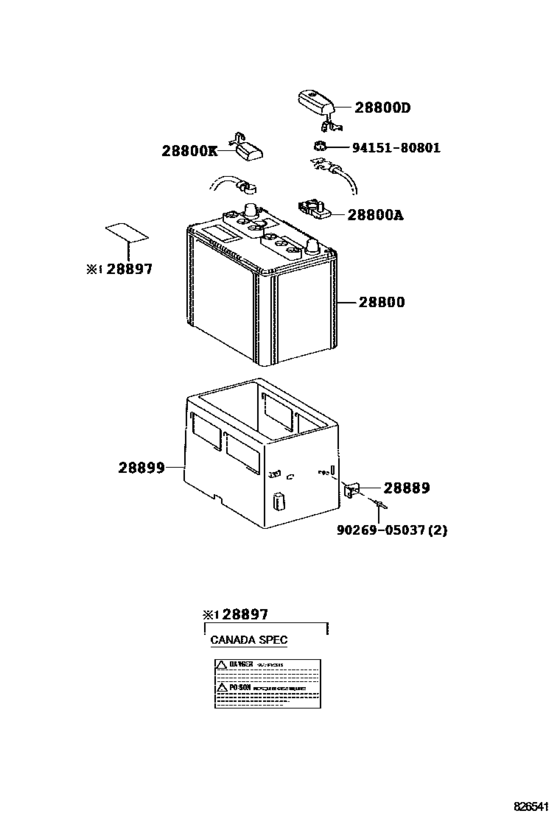

Battery & Battery Cable ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2012
- Sales region
- U.S.A.
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 04.2009
- To
- 08.2012
- Gear Shift Type
- 6F
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28800
|
28800
28800-38100
Battery
[07.2009 - 07.2015] 2GRFSE,4GRFSE..GSE2# 80D26R |
28800-38100 |
— | ||
|
28800
|
28800
28800-54231
Battery
[04.2009 - 06.2009] 2GRFSE,4GRFSE..GSE2# 80D26R |
28800-54231 |
— | ||
| replacement | |||||
|
28800
|
28800
28800-67131
Battery
[04.2009 - 06.2009] 2GRFSE,4GRFSE..GSE2# 80D26R |
28800-67131 |
— | ||
|
28800A
|
28800A
90982-05062 Terminal, Battery Positive[04.2009 -] 2GRFSE,4GRFSE..GSE2# |
90982-05062 |
from US $15.23 |
||
|
28800D
|
28800D
82821-50470 Cover, Connector(For Battery Terminal)[04.2009 -] 2GRFSE,4GRFSE..GSE2# |
82821-50470 |
US $8.91 |
||
|
28800K
|
28800K
82821-50450 Cover, Connector(For Battery Terminal Negative)[04.2009 - 08.2012] 2GRFSE,4GRFSE..GSE2# |
82821-50450 |
US $13.62 |
||
|
28889
|
28889
28889-31010 Bracket, Battery Wire Clamp[04.2009 -] 2GRFSE,4GRFSE..GSE2# |
28889-31010 |
US $1.75 |
||
|
28897
|
28897
28897-31021
Plate, Battery Caution
[04.2009 -] 2GRFSE,4GRFSE..GSE2# CANADA SPEC |
28897-31021 |
— | ||
|
28899
|
28899
28899-31030 Insulator, BatteryBATTERY [04.2009 -] 2GRFSE,4GRFSE..GSE2# |
28899-31030 |
US $43.10 |
||
|
9026905037
|
9026905037
90269-05037 New Genuine Part |
90269-05037 |
US $0.70 |
||
|
9415180801
|
9415180801
94151-80801 NUT FLANGE |
94151-80801 |
from US $0.76 |
||
