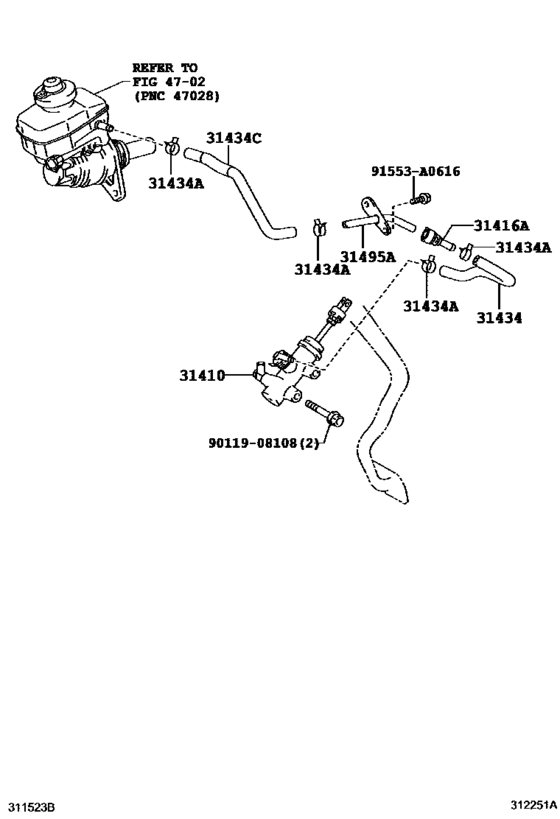

Clutch Master Cylinder ([04.2009 - ] (0904- )6F) Diagram Toyota LEXUS IS
- Year
- 2009 - 2012
- Sales region
- U.S.A.
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 04.2009
- To
- 08.2012
- Gear Shift Type
- 6F
- Vehicle Model
- IS250C
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31410
|
31410
31420-53040
Cylinder Assy, Clutch Master
[04.2009 - 08.2012] GSE20..6F |
31420-53040 |
— | ||
|
31416A
|
31416A
31416-53010 Connector, Clutch HoseCLUTCH HOSE [04.2009 - 08.2012] GSE20..6F |
31416-53010 |
US $12.81 |
||
|
31434
|
31434
31434-53030
Tube, Clutch Reservoir
[04.2009 - 08.2012] GSE20..6F |
31434-53030 |
— | ||
|
31434A
|
31434A
96133-41500 Clamp Or Clip(For Air Hose, No.5)[04.2009 - 08.2012] GSE20..6F |
96133-41500 |
from US $2.26 |
||
|
31434C
|
31434C
31434-53040
Tube, Clutch Reservoir
[04.2009 - 08.2012] GSE20..6F |
31434-53040 |
— | ||
|
31495A
|
31495A
3140A-53010
Way, Clutch Tube
[04.2009 - 08.2012] GSE20..6F |
3140A-53010 |
— | ||
|
91553A0616
|
91553A0616
91553-A0616 New Genuine Part |
91553-A0616 |
US $1.08 |
||
|
9011908108
|
9011908108
90119-08108 Bolt(For Clutch Master Cylinder Setting) |
90119-08108 |
US $2.87 |
