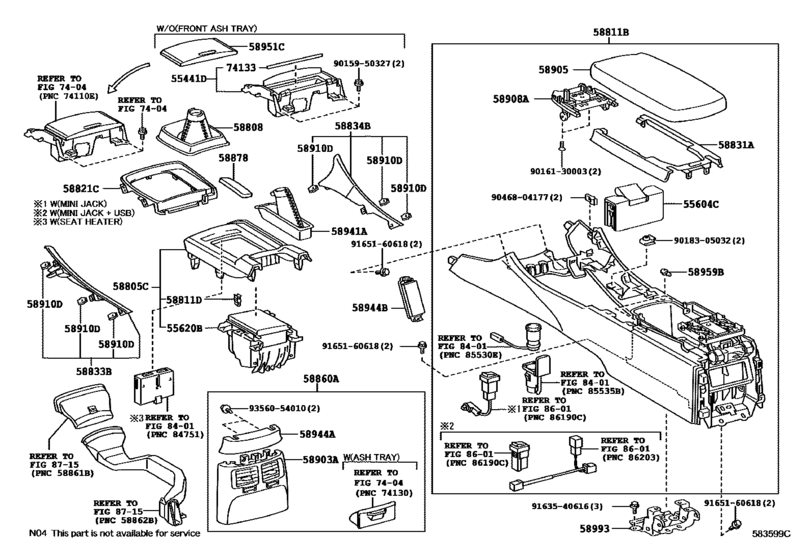

Console Box & Bracket ([04.2009 - ] (0904- )6F) Diagram Toyota LEXUS IS
- Year
- 2009 - 2012
- Sales region
- U.S.A.
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 04.2009
- To
- 08.2012
- Gear Shift Type
- 6F
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55441D
|
55441D
55441-53070 Box Assy, Instrument Panel[08.2010 - 08.2012] GSE2# |
55441-53070 |
US $81.54 |
||
| replacement | |||||
|
55441D
|
55441D
55441-53080 Box Assy, Instrument Panel[08.2010 - 08.2012] GSE2# |
55441-53080 |
US $67.56 |
||
|
55604C
|
55604C
55604-53070 Holder Sub-Assy, Console Box Cup[04.2009 -] GSE2# |
55604-53070 |
US $19.60 |
||
|
55620B
|
55620B
55620-53051
Holder, Instrument Panel Cup
[04.2009 - 08.2010] GSE20..6F |
55620-53051 |
— | ||
|
55620B
|
55620B
55620-53052
Holder, Instrument Panel Cup
[08.2010 - 08.2012] GSE20..6F |
55620-53052 |
— | ||
|
55620B
|
55620B
55620-53060-B0
Holder, Instrument Panel Cup
[04.2009 - 08.2012] GSE20..6F POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN,GRAY,TRIM01,05,11,21,34,37,4 1 |
55620-53060-B0 |
— | ||
|
55620B
|
55620B
55620-53060-E0
Holder, Instrument Panel Cup
[04.2009 - 08.2012] GSE20..6F POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN,LT.BROWN,TRIM00,04,10,20,33, 36,40 |
55620-53060-E0 |
— | ||
|
55620B
|
55620B
55620-53060-E1
Holder, Instrument Panel Cup
[04.2009 - 08.2012] GSE20..6F POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN,DK.BROWN,TRIM06,08,12,22,35, 38,42 |
55620-53060-E1 |
— | ||
|
58805C
|
58805C
58805-53041-C0
Panel Sub-Assy, Console, Upper Rear
[04.2009 - 08.2010] GSE20..6F BLACK,TRIM0#,2# |
58805-53041-C0 |
— | ||
|
58805C
|
58805C
58805-53042-C0
Panel Sub-Assy, Console, Upper Rear
[08.2010 - 08.2012] GSE20..6F BLACK,TRIM0#,2# |
58805-53042-C0 |
— | ||
|
58805C
|
58805C
58805-53060-C1
Panel Sub-Assy, Console, Upper Rear
[04.2009 - 08.2009] GSE20..6F POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN,BLACK/GRAY,TRIM01,05,21 |
58805-53060-C1 |
— | ||
|
58805C
|
58805C
58805-53060-C2
Panel Sub-Assy, Console, Upper Rear
[04.2009 - 08.2009] GSE20..6F POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN,BLACK/LT.BROWN,TRIM00,04,20 |
58805-53060-C2 |
— | ||
|
58805C
|
58805C
58805-53060-C3
Panel Sub-Assy, Console, Upper Rear
[04.2009 - 08.2009] GSE20..6F POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN,BLACK,TRIM06,08,22 |
58805-53060-C3 |
— | ||
|
58808
|
58808
58808-53040-C0
Cover Sub-Assy, Shifting Hole
[04.2009 - 08.2012] GSE20..6F BLACK,TRIM0#,1#,2#,3#,4# |
58808-53040-C0 |
— | ||
|
58811B
|
58811B
58810-53270-C8
Box, Console
[04.2009 - 08.2010] GSE20..6F FRONT SEAT-SEMIANILINE LEATHER,BLACK/LT.GRAY,TRIM2#; GSE20..6F FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK/LT.GRAY,TRIM2# |
58810-53270-C8 |
— | ||
|
58811B
|
58811B
58810-53270-C9
Box, Console
[04.2009 - 08.2010] GSE20..6F FRONT SEAT-SEMIANILINE LEATHER,BLACK/MELLOW WHITE,TRIM0#; GSE20..6F FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK/MELLOW WHITE,TRIM0# |
58810-53270-C9 |
— | ||
|
58811B
|
58811B
58810-53340-C8
Box, Console
[04.2009 - 08.2010] GSE20..6F BLACK/LT.GRAY,TRIM2# |
58810-53340-C8 |
— | ||
|
58811B
|
58811B
58810-53340-C9
Box, Console
[04.2009 - 08.2010] GSE20..6F BLACK/MELLOW WHITE,TRIM0# |
58810-53340-C9 |
— | ||
|
58811B
|
58811B
58810-53400-C0
Box, Console
[08.2010 - 08.2012] GSE20..6F BLACK/LT.GRAY/BACK,TRIM1#,2# |
58810-53400-C0 |
— | ||
|
58811B
|
58811B
58810-53400-C3
Box, Console
[08.2010 - 08.2012] GSE20..6F BLACK/MELLOW WHITE,TRIM0# |
58810-53400-C3 |
— | ||
|
58811B
|
58811B
58810-53400-C7
Box, Console
[08.2010 - 08.2012] GSE20..6F BLACK/RED NO.55,TRIM3# |
58810-53400-C7 |
— | ||
|
58811B
|
58811B
58810-53400-C8
Box, Console
[08.2010 - 08.2012] GSE20..6F BLACK/SADDLE TAN,TRIM4# |
58810-53400-C8 |
— | ||
|
58811D
|
58811D
90467-10203 Direct[04.2009 - 08.2012] GSE20..6F |
90467-10203 |
from US $0.64 |
||
|
58821C
|
58821C
58821-53030
Panel, Console, Upper
[04.2009 - 08.2012] GSE20..6F |
58821-53030 |
— | ||
|
58831A
|
58831A
58831-53010-C0 Garnish, Console Upper Panel, Front[04.2009 - 08.2010] GSE2# BLACK,TRIM0#,2# |
58831-53010-C0 |
US $30.14 |
||
|
58833B
|
58833B
58833-53080
Garnish, Console Upper Panel, No.1
[04.2009 - 08.2012] GSE20..6F |
58833-53080 |
— | ||
|
58834B
|
58834B
58834-53070
Garnish, Console Upper Panel, No.2
[04.2009 - 08.2012] GSE20..6F |
58834-53070 |
— | ||
|
58860A
|
58860A
58860-53010-C0 Register Assy, Console Box[04.2009 - 08.2010] GSE2# BLACK,TRIM0#,1#,2#,3#,4# |
58860-53010-C0 |
US $88.82 |
||
|
58860A
|
58860A
58860-53020-C0 Register Assy, Console Box[08.2010 - 07.2015] GSE2# BLACK,TRIM0#,1#,2#,3#,4# |
58860-53020-C0 |
US $60.28 |
||
|
58878
|
58878
58878-53020
Pad, Console Box Silencer, No.4
[04.2009 - 08.2012] GSE20..6F |
58878-53020 |
— | ||
|
58903A
|
58903A
58903-53010-C0 Panel Sub-Assy, Console Rear End[04.2009 - 08.2010] GSE2# BLACK,TRIM0#,1#,2#,3#,4# |
58903-53010-C0 |
US $64.79 |
||
|
58903A
|
58903A
58903-53020-C0 Panel Sub-Assy, Console Rear End[08.2010 - 07.2015] GSE2# BLACK,TRIM0#,1#,2#,3#,4# |
58903-53020-C0 |
US $36.11 |
||
|
58905
|
58905
58905-53090-A8 Door Sub-Assy, Console CompartmentCONSOLE COMPARTMENT [04.2009 - 08.2010] GSE2# FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#; GSE2# FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,MELLOW WHITE,TRIM0# |
58905-53090-A8 |
US $449.90 |
||
|
58905
|
58905
58905-53090-C3 Door Sub-Assy, Console CompartmentCONSOLE COMPARTMENT [04.2009 - 08.2010] GSE2# FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#; GSE2# FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK,TRIM2# |
58905-53090-C3 |
US $449.90 |
||
|
58905
|
58905
58905-53170-A2 Door Sub-Assy, Console CompartmentCONSOLE COMPARTMENT [04.2009 - 08.2010] GSE2# MELLOW WHITE,TRIM0# |
58905-53170-A2 |
US $240.24 |
||
|
58905
|
58905
58905-53170-C2 Door Sub-Assy, Console CompartmentCONSOLE COMPARTMENT [04.2009 - 08.2010] GSE2# BLACK,TRIM2# |
58905-53170-C2 |
US $240.24 |
||
|
58905
|
58905
58905-53190-A3 Door Sub-Assy, Console Compartment[08.2010 - 07.2015] GSE2# MELLOW WHITE,TRIM0# |
58905-53190-A3 |
US $199.47 |
||
|
58905
|
58905
58905-53190-C0 Door Sub-Assy, Console Compartment[08.2010 - 07.2015] GSE2# BLACK/LT.GRAY,TRIM1#,2# |
58905-53190-C0 |
US $199.47 |
||
|
58905
|
58905
58905-53190-C5 Door Sub-Assy, Console Compartment[08.2010 - 08.2013] GSE2# BLACK/RED NO.55,TRIM3# |
58905-53190-C5 |
US $199.47 |
||
|
58905
|
58905
58905-53190-C6 Door Sub-Assy, Console Compartment[08.2010 - 07.2015] GSE2# BLACK/SADDLE TAN,TRIM4# |
58905-53190-C6 |
US $199.47 |
||
|
58908A
|
58908A
58908-53041-A5 Lock Sub-Assy, Console Compartment Door[04.2009 - 07.2015] GSE2# MELLOW WHITE,TRIM0# |
58908-53041-A5 |
US $53.73 |
||
|
58908A
|
58908A
58908-53041-C3 Lock Sub-Assy, Console Compartment Door[04.2009 - 08.2010] GSE2# BLACK,TRIM2# |
58908-53041-C3 |
US $53.73 |
||
|
58910D
|
58910D
90468-05135 Clip, Instrument Panel[04.2009 - 08.2012] GSE20..6F |
90468-05135 |
from US $0.91 |
||
|
58941A
|
58941A
58809-53060-C0
Cover, Parking Brake Hole
[04.2009 - 08.2012] GSE20..6F BLACK,TRIM0#,1#,2#,3#,4# |
58809-53060-C0 |
— | ||
|
58944A
|
58944A
58944-53010-C0 Cover, Console, Rear[04.2009 - 07.2015] GSE2# BLACK,TRIM0#,1#,2#,3#,4# |
58944-53010-C0 |
US $24.46 |
||
|
58944B
|
58944B
58944-53020
Cover, Console, Rear
[04.2009 - 08.2012] GSE20..6F |
58944-53020 |
— | ||
|
58951C
|
58951C
74103-53012 Door, Box[08.2010 -] GSE2# |
74103-53012 |
US $36.97 |
||
|
58959B
|
58959B
58959-60060 Cushion, Instrument Panel[04.2009 -] GSE2# |
58959-60060 |
from US $1.25 |
||
|
58993
|
58993
58993-53030 Bracket, Console Box Mounting, RearCONSOLE BOX MOUNTING, REAR [04.2009 - 08.2012] GSE20..6F |
58993-53030 |
US $17.76 |
||
|
74133
|
74133
74133-30140 Seal, Ash Receptacle Door[08.2010 -] GSE2# |
74133-30140 |
US $0.87 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.70 |
||
|
9016130003
|
9016130003
90161-30003 SCREW COUNTERSUNK |
90161-30003 |
US $0.52 |
||
|
9018305032
|
9018305032
90183-05032 New Genuine Part |
90183-05032 |
US $1.05 |
||
|
9046804177
|
9046804177
90468-04177 Clip(For Instrument Panel Under Cover) |
90468-04177 |
from US $0.68 |
||
|
9163540616
|
9163540616
91635-40616 New Genuine Part |
91635-40616 |
US $0.87 |
||
|
9165160618
|
9165160618
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.16 |
||
|
9356054010
|
9356054010
93560-54010 SCREW |
93560-54010 |
US $1.25 |
||
