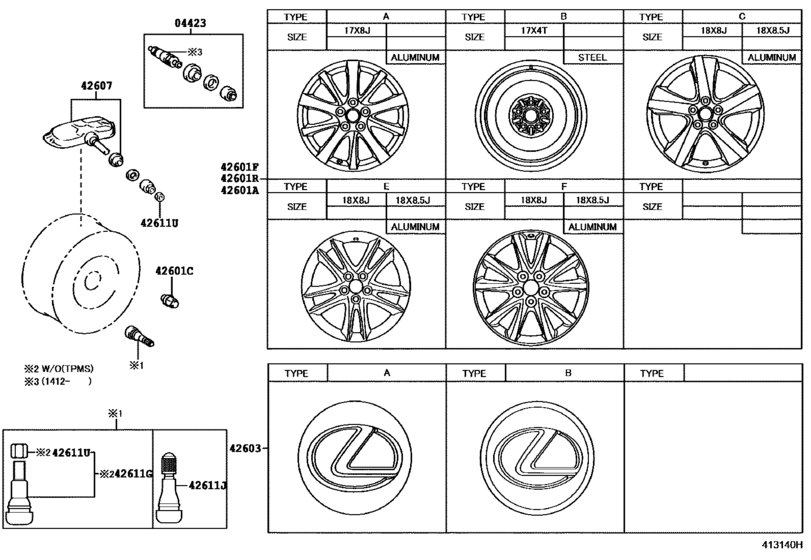

Disc Wheel & Wheel Cap ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2012
- Sales region
- U.S.A.
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 04.2009
- To
- 08.2012
- Gear Shift Type
- 6F
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04423
|
04423
04423-33030
Fitting Kit, Tire Pressure Monitor Or Balancer Valve
[04.2009 - 11.2014] GSE2# |
04423-33030 |
— | ||
| replacement | |||||
|
04423
|
04423
04423-33060 Fitting Kit, Tire Pressure Monitor Or Balancer Valve[04.2009 - 11.2014] GSE2# |
04423-33060 |
from US $4.35 |
||
|
04423
|
04423
04423-33060 Fitting Kit, Tire Pressure Monitor Or Balancer Valve[12.2014 -] GSE2# |
04423-33060 |
from US $4.35 |
||
|
42601A
|
42601A
42611-30A60 Wheel, Disc (For Spare)[04.2009 - 08.2009] GSE2# 17X4T,TYPE B:REFER ILLUST. |
42611-30A60 |
US $142.69 |
||
|
42601A
|
42601A
42611-53320 Wheel, Disc (For Spare)DISC (FOR SPARE) [08.2009 -] GSE2# 17X4T,TYPE B:REFER ILLUST. |
42611-53320 |
US $142.69 |
||
|
42601C
|
42601C
90942-01033 Nut, Hub (For Axle)[04.2009 - 07.2015] GSE2# |
90942-01033 |
from US $2.22 |
||
|
42601F
|
42601F
4261A-53090 Wheel, Disc (For Front)DISC (FOR FRONT) [04.2009 - 08.2011] GSE20..6F 17X8J,USA POSSESIONS SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17 GENERAL COUNTRIES, TYPE A:REFER ILLUST. |
4261A-53090 |
US $662.48 |
||
|
42601F
|
42601F
4261A-53100
Wheel, Disc (For Front)
[04.2009 - 07.2015] GSE2# 17X8J,CANADA SPEC,TYPE A:REFER ILLUST. |
4261A-53100 |
— | ||
|
42601F
|
42601F
4261A-53110 Wheel, Disc (For Front)DISC (FOR FRONT) [04.2009 - 08.2012] GSE2# 18X8J,TIRE & DISC WHEEL-225/40R18+255/40R18 RUN FLAT ALL SEASON,TYPE C:REFER ILLUS T.; GSE2# 18X8J,TIRE & DISC WHEEL-225/40R18+255/40R18 ALL SEASON,TYPE C:REFER ILLUST.; GSE2# 18X8J,TIRE & DISC WHEEL-225/40R18+255/40R18 ALUMINUM, |
4261A-53110 |
US $736.74 |
||
| replacement | |||||
|
42601F
|
42601F
4261A-53120 Wheel, Disc (For Front)DISC (FOR FRONT) [04.2009 - 08.2012] GSE2# 18X8J,TIRE & DISC WHEEL-225/40R18+255/40R18 RUN FLAT ALL SEASON,TYPE C:REFER ILLUS T.; GSE2# 18X8J,TIRE & DISC WHEEL-225/40R18+255/40R18 ALL SEASON,TYPE C:REFER ILLUST.; GSE2# 18X8J,TIRE & DISC WHEEL-225/40R18+255/40R18 ALUMINUM, |
4261A-53120 |
US $736.74 |
||
|
42601F
|
42601F
4261A-53120 Wheel, Disc (For Front)DISC (FOR FRONT) [04.2009 - 08.2012] GSE2# 18X8J,CANADA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 RUN FLAT ALL SEASON,TYPE C :REFER ILLUST.; GSE2# 18X8J,CANADA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 ALL SEASON,TYPE C:REFER IL LUST. |
4261A-53120 |
US $736.74 |
||
|
42601F
|
42601F
4261A-53210 Wheel, Disc[08.2011 - 07.2015] GSE2# 18X8J,TIRE & DISC WHEEL-225/40R18+255/40R18 ALL SEASON,TYPE C:REFER ILLUST.; GSE2# 18X8J,TIRE & DISC WHEEL-225/40R18+255/40R18 ALUMINUM,TYPE C:REFER ILLUST. |
4261A-53210 |
US $736.74 |
||
|
42601F
|
42601F
4261A-53220
Wheel, Disc
[08.2011 - 07.2015] GSE2# 18X8J,CANADA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 ALL SEASON,TYPE D:REFER IL LUST. |
4261A-53220 |
— | ||
|
42601R
|
42601R
4261A-53090 Wheel, Disc (For Front)DISC (FOR FRONT) [04.2009 - 07.2015] GSE2# 17X8J,TYPE A:REFER ILLUST. |
4261A-53090 |
US $662.48 |
||
|
42601R
|
42601R
4261A-53100
Wheel, Disc (For Front)
[04.2009 - 07.2015] GSE2# 17X8J,CANADA SPEC,TYPE A:REFER ILLUST. |
4261A-53100 |
— | ||
|
42601R
|
42601R
4261A-53130 Wheel, Disc (For Rear)DISC (FOR REAR) [04.2009 - 08.2012] GSE2# 18X8.5J,TIRE & DISC WHEEL-225/40R18+255/40R18 RUN FLAT ALL SEASON,TYPE C:REFER ILL UST.; GSE2# 18X8.5J,TIRE & DISC WHEEL-225/40R18+255/40R18 ALL SEASON,TYPE C:REFER ILLUST.; GSE2# 18X8.5J,TIRE & DISC WHEEL-225/40R18+255/40R18 ALU |
4261A-53130 |
US $742.56 |
||
|
42601R
|
42601R
4261A-53140
Wheel, Disc (For Rear)
[04.2009 - 08.2012] GSE2# 18X8.5J,CANADA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 RUN FLAT ALL SEASON,TYPE C:REFER ILLUST.; GSE2# 18X8.5J,CANADA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 ALL SEASON,TYPE C:REFER ILLUST. |
4261A-53140 |
— | ||
|
42601R
|
42601R
4261A-53230 Wheel, Disc[08.2011 - 07.2012] GSE2# 18X8.5J,TIRE & DISC WHEEL-225/40R18+255/40R18 ALUMINUM,TYPE D:REFER ILLUST. |
4261A-53230 |
US $742.56 |
||
|
42601R
|
42601R
4261A-53240
Wheel, Disc
[08.2011 - 07.2015] GSE2# 18X8.5J,CANADA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 ALL SEASON,TYPE D:REFER ILLUST. |
4261A-53240 |
— | ||
|
42603
|
42603
42603-30590 Ornament Sub-Assy, Wheel Hub[04.2009 - 08.2012] GSE2# *CHR,TIRE & DISC WHEEL-225/40R18+255/40R18 RUN FLAT ALL SEASON,TYPE A:REFER ILLUST .; GSE2# *CHR,TIRE & DISC WHEEL-225/40R18+255/40R18 ALL SEASON,TYPE A:REFER ILLUST.; GSE2# *CHR,TIRE & DISC WHEEL-225/40R18+255/40R18 ALUMINUM,TYP |
42603-30590 |
from US $26.58 |
||
|
42603
|
42603
42603-50320 Ornament Sub-Assy, Wheel Hub[04.2009 - 08.2012] GSE2# *ALU,TYPE A:REFER ILLUST. |
42603-50320 |
US $29.29 |
||
|
42607
|
42607
42607-33021
Valve Sub-Assy, Tire Pressure Monitor
[04.2009 -] GSE2# |
42607-33021 |
— | ||
| replacement | |||||
|
42607
|
42607
42607-33022 Valve Sub-Assy, Tire Pressure Monitor[04.2009 -] GSE2# |
42607-33022 |
from US $95.80 |
||
|
42611J
|
42611J
90942-05009 Valve (For Tubeless Tire)[04.2009 -] GSE2# |
90942-05009 |
from US $6.99 |
||
| replacement | |||||
|
42611J
|
42611J
90080-94031 Valve (For Tubeless Tire)[04.2009 -] GSE2# |
90080-94031 |
US $1.46 |
||
|
42611U
|
42611U
90942-05037 Cap, Tire Valve[04.2009 - 07.2012] GSE2# |
90942-05037 |
from US $3.76 |
||
|
42611U
|
42611U
90942-05042 Cap, Tire Valve[07.2012 -] GSE2# |
90942-05042 |
from US $1.61 |
||
