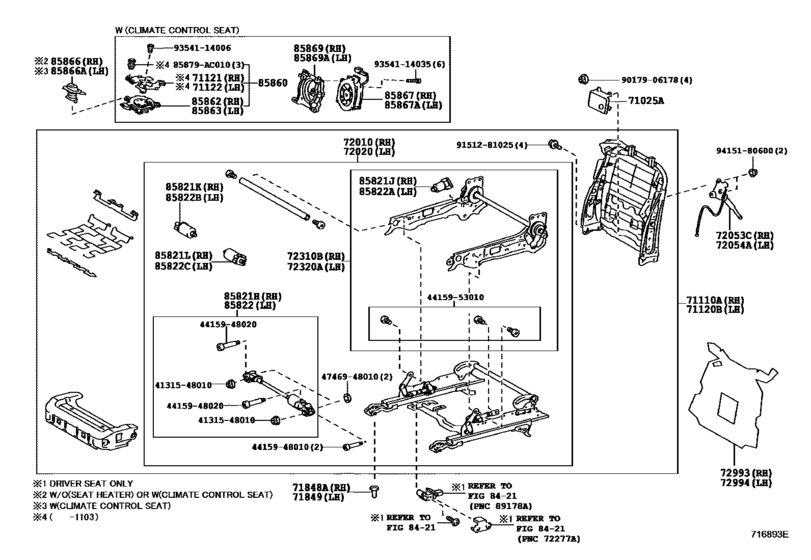

Front Seat & Seat Track ([04.2009 - ] FRAME (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2012
- Sales region
- U.S.A.
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 04.2009
- To
- 08.2012
- Gear Shift Type
- 6F
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71025A
|
71025A
71025-48010 Bracket Sub-Assy, Front Seat Back[04.2009 -] GSE2# |
71025-48010 |
US $28.68 |
||
|
71110A
|
71110A
71110-53280
Frame Assy, Front Seat W/adjuster, Rh
[04.2009 -] GSE2# POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN |
71110-53280 |
— | ||
|
71110A
|
71110A
71110-53290
Frame Assy, Front Seat W/adjuster, Rh
[04.2009 - 08.2010] GSE2# LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-FU LL LEATHER BLUE & WHITE TWO-TONE COLOR |
71110-53290 |
— | ||
|
71110A
|
71110A
71110-53360
Frame Assy, Front Seat W/adjuster, Rh
[04.2009 -] GSE2# |
71110-53360 |
— | ||
|
71120B
|
71120B
71120-53280
Frame Assy, Front Seat W/adjuster, Lh
[04.2009 -] GSE2# |
71120-53280 |
— | ||
|
71120B
|
71120B
71120-53290
Frame Assy, Front Seat W/adjuster, Lh
[04.2009 -] GSE2# POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN |
71120-53290 |
— | ||
|
71120B
|
71120B
71120-53300
Frame Assy, Front Seat W/adjuster, Lh
[04.2009 - 08.2010] GSE2# LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-FU LL LEATHER BLUE & WHITE TWO-TONE COLOR; GSE20..6FC KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRO NT SEAT-FULL |
71120-53300 |
— | ||
|
71121
|
71121
85868-AC010
Bracket, Front Seat Cushion, Rh
[04.2009 - 08.2010] GSE2# LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-FU LL LEATHER BLUE & WHITE TWO-TONE COLOR; GSE20..6FC KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRO NT SEAT-FULL |
85868-AC010 |
— | ||
|
71122
|
71122
85868-AC010
Bracket, Front Seat Cushion, Rh
[04.2009 - 08.2010] GSE2# LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-FU LL LEATHER BLUE & WHITE TWO-TONE COLOR; GSE20..6FC KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRO NT SEAT-FULL |
85868-AC010 |
— | ||
|
71848A
|
71848A
71848-33010 Cap, Rear Seat[04.2009 -] GSE2# |
71848-33010 |
US $1.79 |
||
|
71849
|
71849
71848-33010 Cap, Rear Seat[04.2009 -] GSE2# |
71848-33010 |
US $1.79 |
||
|
72010
|
72010
72010-53100
Adjuster Assy, Front Seat, Rh
[04.2009 - 03.2011] GSE2# |
72010-53100 |
— | ||
| replacements | |||||
|
72010
|
72010
72010-53101
Adjuster Assy, Front Seat, Rh
[04.2009 - 03.2011] GSE2# |
72010-53101 |
— | ||
|
72010
|
72010
73214-75010 Plate, Front Seat Belt Anchor[04.2009 - 03.2011] GSE2# |
73214-75010 |
US $3.05 |
||
|
72010
|
72010
72010-53101
Adjuster Assy, Front Seat, Rh
[03.2011 -] GSE2# |
72010-53101 |
— | ||
|
72010
|
72010
72010-53110
Adjuster Assy, Front Seat, Rh
[04.2009 - 08.2010] GSE2# LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-FU LL LEATHER BLUE & WHITE TWO-TONE COLOR |
72010-53110 |
— | ||
| replacements | |||||
|
72010
|
72010
72010-53111
Adjuster Assy, Front Seat, Rh
[04.2009 - 08.2010] GSE2# LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-FU LL LEATHER BLUE & WHITE TWO-TONE COLOR |
72010-53111 |
— | ||
|
72010
|
72010
73214-75010 Plate, Front Seat Belt Anchor[04.2009 - 08.2010] GSE2# LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-FU LL LEATHER BLUE & WHITE TWO-TONE COLOR |
73214-75010 |
US $3.05 |
||
|
72010
|
72010
72010-53111
Adjuster Assy, Front Seat, Rh
[03.2011 - 08.2011] GSE2# LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SE MIANILINE LEATHER & TWO-TONE COLOR |
72010-53111 |
— | ||
|
72020
|
72020
72020-53120
Adjuster Assy, Front Seat, Lh
[04.2009 - 03.2011] GSE2# |
72020-53120 |
— | ||
| replacements | |||||
|
72020
|
72020
72020-53121
Adjuster Assy, Front Seat, Lh
[04.2009 - 03.2011] GSE2# |
72020-53121 |
— | ||
|
72020
|
72020
73214-75010 Plate, Front Seat Belt Anchor[04.2009 - 03.2011] GSE2# |
73214-75010 |
US $3.05 |
||
|
72020
|
72020
72020-53121
Adjuster Assy, Front Seat, Lh
[03.2011 -] GSE2# |
72020-53121 |
— | ||
|
72020
|
72020
72020-53130
Adjuster Assy, Front Seat, Lh
[04.2009 - 08.2010] GSE2# LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-FU LL LEATHER BLUE & WHITE TWO-TONE COLOR; GSE20..6FC KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRO NT SEAT-FULL |
72020-53130 |
— | ||
| replacements | |||||
|
72020
|
72020
72020-53131
Adjuster Assy, Front Seat, Lh
[04.2009 - 08.2010] GSE2# LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-FU LL LEATHER BLUE & WHITE TWO-TONE COLOR; GSE20..6FC KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRO NT SEAT-FULL |
72020-53131 |
— | ||
|
72020
|
72020
73214-75010 Plate, Front Seat Belt Anchor[04.2009 - 08.2010] GSE2# LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-FU LL LEATHER BLUE & WHITE TWO-TONE COLOR; GSE20..6FC KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRO NT SEAT-FULL |
73214-75010 |
US $3.05 |
||
|
72020
|
72020
72020-53131
Adjuster Assy, Front Seat, Lh
[03.2011 - 08.2011] GSE20..6FC KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRO NT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR; GSE2# LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SE MIANIL |
72020-53131 |
— | ||
|
72053C
|
72053C
72053-53010 Lever Sub-Assy, Reclining Remote Control, RhRECLINING REMOTE CONTROL, RH [04.2009 -] GSE2# |
72053-53010 |
US $23.44 |
||
|
72054A
|
72054A
72054-53010 Lever Sub-Assy, Reclining Remote Control, LhRECLINING REMOTE CONTROL, LH [04.2009 -] GSE2# |
72054-53010 |
US $23.44 |
||
|
72993
|
72993
72993-53010 Cover, Front Seat BackFRONT SEAT BACK [04.2009 -] GSE2# |
72993-53010 |
US $4.22 |
||
|
72994
|
72994
72994-53010 Cover, Front Seat BackFRONT SEAT BACK [04.2009 -] GSE2# |
72994-53010 |
US $4.22 |
||
|
85821H
|
85821H
85801-30210 Motor Assy, Power Seat Slide, Rh[04.2009 - 08.2011] GSE2# FRONT SEAT-SEMIANILINE LEATHER; GSE2# FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR |
85801-30210 |
US $202.38 |
||
|
85821H
|
85821H
85801-48080 Motor Assy, Power Seat Slide, RhPOWER SEAT SLIDE, RH [04.2009 -] GSE2# |
85801-48080 |
US $202.38 |
||
|
85821J
|
85821J
85820-30750 Motor Assy, Power Seat[04.2009 - 08.2010] GSE2# LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-FU LL LEATHER BLUE & WHITE TWO-TONE COLOR; GSE20..6FC KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRO NT SEAT-FULL |
85820-30750 |
US $197.43 |
||
|
85821J
|
85821J
85820-30780 Motor Assy, Power Seat Reclining, Rh[04.2009 -] GSE2# |
85820-30780 |
US $235.87 |
||
|
85821K
|
85821K
85820-30760 Motor Assy, Power Seat Slide, Rh[04.2009 - 08.2010] GSE2# LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-FU LL LEATHER BLUE & WHITE TWO-TONE COLOR; GSE20..6FC KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRO NT SEAT-FULL |
85820-30760 |
US $235.87 |
||
|
85821K
|
85821K
85820-30780 Motor Assy, Power Seat Reclining, Rh[04.2009 -] GSE2# |
85820-30780 |
US $235.87 |
||
|
85821L
|
85821L
85820-30760 Motor Assy, Power Seat Slide, Rh[04.2009 - 08.2010] GSE2# LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-FU LL LEATHER BLUE & WHITE TWO-TONE COLOR; GSE20..6FC KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRO NT SEAT-FULL |
85820-30760 |
US $235.87 |
||
|
85821L
|
85821L
85820-30780 Motor Assy, Power Seat Reclining, Rh[04.2009 -] GSE2# |
85820-30780 |
US $235.87 |
||
|
85822
|
85822
85801-30230 Motor Assy, Power Seat Slide, Lh[04.2009 -] GSE2# |
85801-30230 |
US $202.38 |
||
|
85822
|
85822
85801-48070 Motor Assy, Power Seat Slide, Lh[04.2009 - 08.2011] GSE2# FRONT SEAT-SEMIANILINE LEATHER; GSE2# FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR |
85801-48070 |
US $251.66 |
||
|
85822A
|
85822A
85820-30750 Motor Assy, Power Seat[04.2009 -] GSE2# |
85820-30750 |
US $197.43 |
||
|
85822B
|
85822B
85820-30750 Motor Assy, Power Seat[04.2009 -] GSE2# |
85820-30750 |
US $197.43 |
||
|
85822B
|
85822B
85820-30760 Motor Assy, Power Seat Slide, Rh[04.2009 - 08.2010] GSE2# LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-FU LL LEATHER BLUE & WHITE TWO-TONE COLOR; GSE20..6FC KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRO NT SEAT-FULL |
85820-30760 |
US $235.87 |
||
|
85822C
|
85822C
85820-30750 Motor Assy, Power Seat[04.2009 -] GSE2# |
85820-30750 |
US $197.43 |
||
|
85822C
|
85822C
85820-30760 Motor Assy, Power Seat Slide, Rh[04.2009 - 08.2010] GSE2# LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-FU LL LEATHER BLUE & WHITE TWO-TONE COLOR; GSE20..6FC KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRO NT SEAT-FULL |
85820-30760 |
US $235.87 |
||
|
85860
|
85860
85860-30020 Blower Assy, Seat Cushion Climate Control[09.2010 - 08.2011] GSE20..6FC KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRO NT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR; GSE2# LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SE MIANIL |
85860-30020 |
US $164.73 |
||
|
85860
|
85860
85860-33010
Blower Assy, Seat Cushion Climate Control
[04.2009 - 08.2010] GSE2# LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-FU LL LEATHER BLUE & WHITE TWO-TONE COLOR; GSE20..6FC KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRO NT SEAT-FULL |
85860-33010 |
— | ||
|
85862
|
85862
85862-30020
Blower, Seat Climate Control, Rh
[08.2011 -] GSE2# LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SE MIANILINE LEATHER; GSE2# POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN |
85862-30020 |
— | ||
|
85862
|
85862
85862-33020
Blower, Seat Climate Control, Rh
[04.2009 - 08.2010] GSE2# LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-FU LL LEATHER BLUE & WHITE TWO-TONE COLOR; GSE20..6FC KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRO NT SEAT-FULL |
85862-33020 |
— | ||
|
85863
|
85863
85862-30020
Blower, Seat Climate Control, Rh
[08.2011 -] GSE2# LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SE MIANILINE LEATHER; GSE2# POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN |
85862-30020 |
— | ||
|
85863
|
85863
85862-33020
Blower, Seat Climate Control, Rh
[04.2009 - 08.2010] GSE2# LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-FU LL LEATHER BLUE & WHITE TWO-TONE COLOR; GSE20..6FC KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRO NT SEAT-FULL |
85862-33020 |
— | ||
|
85866
|
85866
85866-30010
Duct, Seat Cushion Climate Control, Rh
[04.2009 -] GSE2# |
85866-30010 |
— | ||
|
85866A
|
85866A
85866-30010
Duct, Seat Cushion Climate Control, Rh
[04.2009 - 08.2010] GSE2# LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-FU LL LEATHER BLUE & WHITE TWO-TONE COLOR; GSE20..6FC KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRO NT SEAT-FULL |
85866-30010 |
— | ||
|
85867
|
85867
85867-33010
Blower, Seat Back Climate Control, Rh
[04.2009 - 08.2010] GSE2# LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-FU LL LEATHER BLUE & WHITE TWO-TONE COLOR; GSE20..6FC KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRO NT SEAT-FULL |
85867-33010 |
— | ||
|
85867A
|
85867A
85867-33010
Blower, Seat Back Climate Control, Rh
[04.2009 - 08.2010] GSE2# LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-FU LL LEATHER BLUE & WHITE TWO-TONE COLOR; GSE20..6FC KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRO NT SEAT-FULL |
85867-33010 |
— | ||
|
85869
|
85869
85869-30010
Cover, Seat Back Climate Control, Rh
[04.2009 - 08.2010] GSE2# LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-FU LL LEATHER BLUE & WHITE TWO-TONE COLOR; GSE20..6FC KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRO NT SEAT-FULL |
85869-30010 |
— | ||
|
85869A
|
85869A
85869-30010
Cover, Seat Back Climate Control, Rh
[04.2009 - 08.2010] GSE2# LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-FU LL LEATHER BLUE & WHITE TWO-TONE COLOR; GSE20..6FC KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRO NT SEAT-FULL |
85869-30010 |
— | ||
|
85879AC010
|
85879AC010
85879-AC010
Bush, Seat Cushion Climate Control
|
85879-AC010 |
— | ||
|
4131548010
|
4131548010
41315-48010 Nut, Rear Differential Bearing Adjusting |
41315-48010 |
US $2.18 |
||
|
4415948010
|
4415948010
44159-48010 Nut, Power Piston End Plug Lock |
44159-48010 |
US $1.92 |
||
|
4415948020
|
4415948020
44159-48020 Nut, Power Piston End Plug Lock |
44159-48020 |
US $1.92 |
||
|
4415953010
|
4415953010
44159-53010 Nut, Power Piston End Plug Lock |
44159-53010 |
US $2.91 |
||
|
4746948010
|
4746948010
47469-48010 Washer, Adjusting Cam(for Rear Brake) |
47469-48010 |
US $1.16 |
||
|
9017906178
|
9017906178
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.76 |
||
|
9151281025
|
9151281025
91512-81025 Bolt(For Torque Arm Setting) |
91512-81025 |
from US $1.10 |
||
|
9354114006
|
9354114006
93541-14006 New Genuine Part |
93541-14006 |
US $0.73 |
||
|
9354114035
|
9354114035
93541-14035 New Genuine Part |
93541-14035 |
US $0.73 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
||
