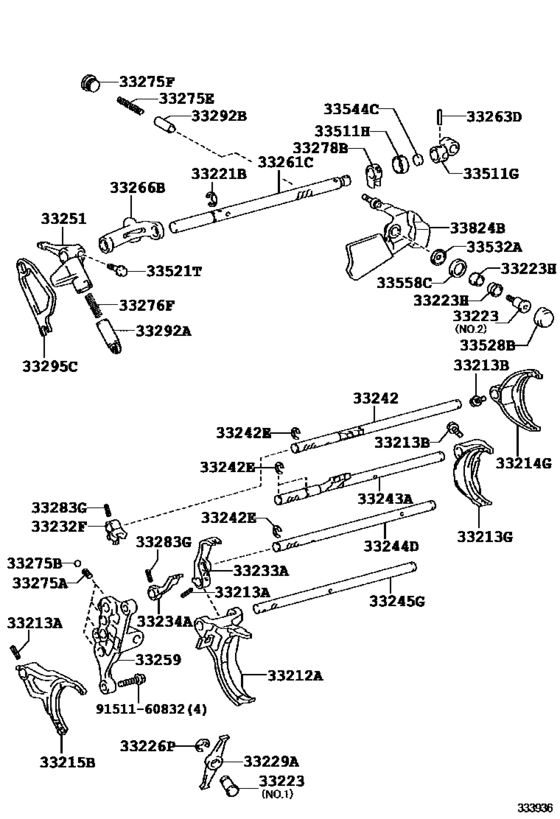

Gear Shift Fork & Lever Shaft (Mtm) ([04.2009 - ] RA62 (0904- )6F) Diagram Toyota LEXUS IS
- Year
- 2009 - 2012
- Sales region
- U.S.A.
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 04.2009
- To
- 08.2012
- Gear Shift Type
- 6F
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33212A
|
33212A
33210-53020
Fork, Gear Shift, No.1
[04.2009 - 08.2012] GSE20..6F |
33210-53020 |
— | ||
|
33213A
|
33213A
90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)[04.2009 - 08.2012] GSE20..6F |
90254-05016 |
from US $1.90 |
||
|
33213B
|
33213B
90105-06077 Bolt(For Shift Fork Set)[04.2009 - 08.2012] GSE20..6F |
90105-06077 |
from US $0.99 |
||
|
33213G
|
33213G
33220-35010 Fork, Gear Shift, No.2GEAR SHIFT, NO.2 [04.2009 - 08.2012] GSE20..6F |
33220-35010 |
US $57.83 |
||
|
33214G
|
33214G
33230-53020
Fork, Gear Shift, No.3
[04.2009 - 08.2012] GSE20..6F |
33230-53020 |
— | ||
|
33215B
|
33215B
33240-35011
Fork, Gear Shift, No.4
[04.2009 - 08.2012] GSE20..6F |
33240-35011 |
— | ||
| replacement | |||||
|
33215B
|
33215B
33240-35012 Fork, Gear Shift, No.4[04.2009 - 08.2012] GSE20..6F |
33240-35012 |
from US $33.93 |
||
|
33221B
|
33221B
96160-01500 Ring, E(For Reverse Shift Arm)[04.2009 - 08.2012] GSE20..6F |
96160-01500 |
US $3.58 |
||
|
33223
|
33223
33223-35040 Pivot, Shift ArmSHIFT ARM [04.2009 - 08.2012] GSE20..6F NO.1 |
33223-35040 |
US $4.22 |
||
|
33223
|
33223
33223-53020 Pivot, Shift ArmSHIFT ARM [04.2009 - 08.2012] GSE20..6F NO.2 |
33223-53020 |
US $13.83 |
||
|
33223H
|
33223H
90386-18006 Collar(For Pivot, Shift Arm)SHIFT ARM) [04.2009 - 08.2012] GSE20..6F |
90386-18006 |
US $1.75 |
||
|
33226P
|
33226P
96160-01200 Ring, E(For Clutch Release Cable)[04.2009 - 08.2012] GSE20..6F |
96160-01200 |
from US $1.50 |
||
|
33229A
|
33229A
33222-35010 Arm, ShiftRELEASE, NO.1 [04.2009 - 08.2012] GSE20..6F |
33222-35010 |
from US $20.53 |
||
|
33232F
|
33232F
33232-53010
Head, Gear Shift, No.1
[04.2009 - 08.2012] GSE20..6F |
33232-53010 |
— | ||
|
33233A
|
33233A
33233-53020
Head, Gear Shift, No.2
[04.2009 - 08.2012] GSE20..6F |
33233-53020 |
— | ||
|
33234A
|
33234A
33234-53030
Head, Gear Shift, No.3
[04.2009 - 08.2012] GSE20..6F |
33234-53030 |
— | ||
|
33242
|
33242
33242-53050
Shaft, Gear Shift Fork, No.1
[04.2009 - 08.2012] GSE20..6F |
33242-53050 |
— | ||
|
33242E
|
33242E
90520-12003 Ring(For Reverse Shift Head)[04.2009 - 08.2012] GSE20..6F |
90520-12003 |
from US $0.89 |
||
|
33243A
|
33243A
33243-53050
Shaft, Gear Shift Fork, No.2
[04.2009 - 08.2012] GSE20..6F |
33243-53050 |
— | ||
|
33244D
|
33244D
33244-53050
Shaft, Gear Shift Fork, No.3
[04.2009 - 08.2012] GSE20..6F |
33244-53050 |
— | ||
|
33245G
|
33245G
33245-53020
Shaft, Gear Shift Fork, No.4
[04.2009 - 08.2012] GSE20..6F |
33245-53020 |
— | ||
| replacement | |||||
|
33245G
|
33245G
33245-53021
Shaft, Gear Shift Fork, No.4
[04.2009 - 08.2012] GSE20..6F |
33245-53021 |
— | ||
|
33251
|
33251
33251-53060
Lever, Shift & Select
[04.2009 - 08.2012] GSE20..6F |
33251-53060 |
— | ||
|
33259
|
33259
33259-53010
Bracket, Shift Interlock
[04.2009 - 08.2012] GSE20..6F |
33259-53010 |
— | ||
|
33261C
|
33261C
33261-53030
Shaft, Shift & Select Lever
[04.2009 - 08.2012] GSE20..6F |
33261-53030 |
— | ||
|
33263D
|
33263D
90250-06038 Pin (For Shift Lever Shaft)[04.2009 - 08.2012] GSE20..6F |
90250-06038 |
US $1.60 |
||
|
33266B
|
33266B
33266-53020
Pin, Shift Inter Lock, No.3
[04.2009 - 08.2012] GSE20..6F |
33266-53020 |
— | ||
|
33275A
|
33275A
90501-08228 Spring, Compression (For Shift Detent Ball Low Side)COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) [04.2009 - 08.2012] GSE20..6F L=15.35 |
90501-08228 |
US $1.35 |
||
|
33275B
|
33275B
90360-10003 Ball(For Transmission Oil Pump Cover)[04.2009 - 08.2012] GSE20..6F |
90360-10003 |
from US $1.16 |
||
|
33275E
|
33275E
90501-13095 Spring, Compression (For Shift Detent Ball)COMPRESSION (FOR SHIFT DETENT BALL) [04.2009 - 08.2012] GSE20..6F |
90501-13095 |
US $1.46 |
||
|
33275F
|
33275F
90341-16013 Plug, W/head Straight Screw, No.1(For Cylinder Block)[04.2009 - 08.2012] GSE20..6F |
90341-16013 |
US $2.97 |
||
|
33276F
|
33276F
90501-21047
Spring, Compression, No.1 (For Select Return)
[04.2009 - 08.2012] GSE20..6F |
90501-21047 |
— | ||
|
33278B
|
33278B
33278-53010 Support, Shift & Select Lever ShaftSHIFT & SELECT LEVER SHAFT [04.2009 - 08.2012] GSE20..6F |
33278-53010 |
US $12.08 |
||
|
33283G
|
33283G
90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)[04.2009 - 08.2012] GSE20..6F |
90254-05001 |
from US $0.95 |
||
|
33292A
|
33292A
33292-35010 Pin, Lock BallLOCK BALL [04.2009 - 08.2012] GSE20..6F |
33292-35010 |
US $2.91 |
||
|
33292B
|
33292B
33292-20010 Pin, Lock BallLOCK BALL NO.2 [04.2009 - 08.2012] GSE20..6F |
33292-20010 |
US $25.33 |
||
|
33295C
|
33295C
33295-53010
Cam, Shift & Select
[04.2009 - 08.2012] GSE20..6F |
33295-53010 |
— | ||
|
33511G
|
33511G
33511-53050 Shaft, ControlCONTROL [04.2009 - 08.2012] GSE20..6F |
33511-53050 |
US $41.93 |
||
|
33511H
|
33511H
90387-26003 Collar (For Control Shaft)[04.2009 - 08.2012] GSE20..6F |
90387-26003 |
US $0.87 |
||
|
33521T
|
33521T
90109-08305 Pin Or Bolt (For Shift Lever Housing)[04.2009 - 08.2012] GSE20..6F |
90109-08305 |
US $1.43 |
||
|
33528B
|
33528B
33557-53010 Cover, Control ShaftCONTROL SHAFT [04.2009 - 08.2012] GSE20..6F |
33557-53010 |
US $7.43 |
||
|
33532A
|
33532A
33532-53010 Plate, Dust BootDUST BOOT [04.2009 - 08.2012] GSE20..6F |
33532-53010 |
US $5.24 |
||
|
33544C
|
33544C
33544-53040
Damper, Shift Lever
[04.2009 - 08.2012] GSE20..6F |
33544-53040 |
— | ||
|
33558C
|
33558C
33558-53020 Seal, Shift Lever Boot DustSHIFT LEVER BOOT DUST [04.2009 - 08.2012] GSE20..6F |
33558-53020 |
US $4.66 |
||
|
33824B
|
33824B
33824-53010 Weight, Transmission Control CableTRANSMISSION CONTROL CABLE [04.2009 - 08.2012] GSE20..6F |
33824-53010 |
US $103.38 |
||
|
9151160832
|
9151160832
91511-60832 Bolt, Flange(For Select Stopper Block) |
91511-60832 |
US $1.02 |
||
