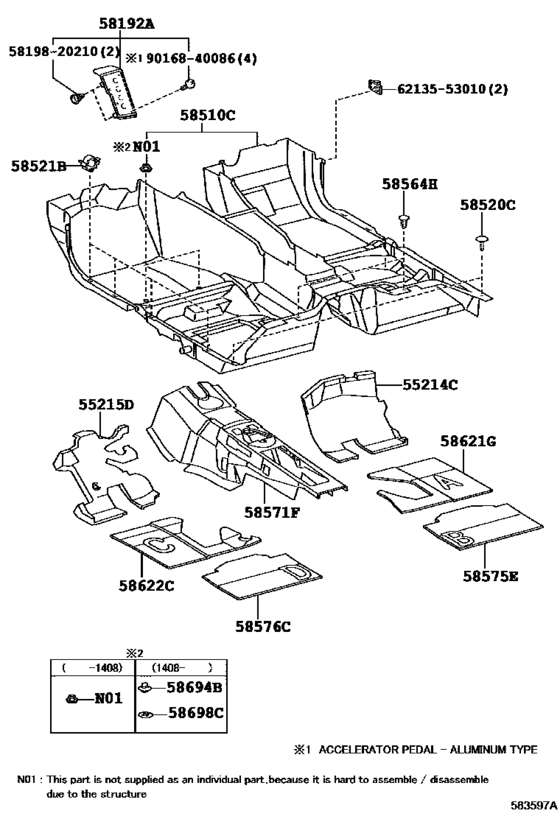

Mat & Carpet ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2012
- Sales region
- U.S.A.
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 04.2009
- To
- 08.2012
- Gear Shift Type
- 6F
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55214C
|
55214C
55214-53090
Pad, Dash Panel Insulator, No.2
[04.2009 -] GSE2# |
55214-53090 |
— | ||
|
55215D
|
55215D
55215-53080
Pad, Dash Panel Insulator, No.3
[04.2009 - 08.2012] GSE20..6F |
55215-53080 |
— | ||
|
58192A
|
58192A
58192-53050
Footrest, Front Floor, Lh
[04.2009 - 11.2011] GSE2# |
58192-53050 |
— | ||
| replacement | |||||
|
58192A
|
58192A
58192-53051
Footrest, Front Floor, Lh
[04.2009 - 11.2011] GSE2# |
58192-53051 |
— | ||
|
58192A
|
58192A
58192-53051
Footrest, Front Floor, Lh
[12.2011 -] GSE2# |
58192-53051 |
— | ||
|
58192A
|
58192A
58192-53060
Footrest, Front Floor, Lh
[04.2009 - 11.2011] GSE2# ACCELERATOR PEDAL-ALUMINUM TYPE |
58192-53060 |
— | ||
| replacement | |||||
|
58192A
|
58192A
58192-53061 Footrest, Front Floor, Lh[04.2009 - 11.2011] GSE2# ACCELERATOR PEDAL-ALUMINUM TYPE |
58192-53061 |
from US $52.44 |
||
|
58192A
|
58192A
58192-53061 Footrest, Front Floor, Lh[12.2011 - 08.2014] GSE2# ACCELERATOR PEDAL-ALUMINUM TYPE |
58192-53061 |
from US $52.44 |
||
|
58510C
|
58510C
58510-53530-A1
Carpet Assy, Front Floor, Front
[04.2009 - 08.2012] GSE20..6F MELLOW WHITE,TRIM00,01,06 |
58510-53530-A1 |
— | ||
|
58510C
|
58510C
58510-53530-C1
Carpet Assy, Front Floor, Front
[04.2009 - 08.2012] GSE20..6F BLACK,TRIM04,05,08,1#,2#,3#,4# |
58510-53530-C1 |
— | ||
|
58510C
|
58510C
58510-53530-J1
Carpet Assy, Front Floor, Front
[04.2009 - 08.2010] GSE20..6F BLUE,TRIM04,05,08 |
58510-53530-J1 |
— | ||
|
58520C
|
58520C
51454-48010 Silencer, Engine Under Cover, Rear[04.2009 -] GSE2# |
51454-48010 |
from US $3.21 |
||
|
58521B
|
58521B
58521-53060 Hook, Floor CarpetFLOOR CARPET [04.2009 -] GSE2# |
58521-53060 |
US $4.95 |
||
|
58564H
|
58564H
90467-05164-B8 Clip(For Front Floor Carpet)[04.2009 - 12.2009] GSE2# LT.GRAY |
90467-05164-B8 |
from US $0.70 |
||
|
58564H
|
58564H
90467-05164-C0 Clip(For Deck Boad)[12.2009 - 07.2015] GSE2# BLACK |
90467-05164-C0 |
from US $0.67 |
||
|
58571F
|
58571F
58571-53020
Pad, Front Floor, Front
[04.2009 - 08.2012] GSE20..6F |
58571-53020 |
— | ||
|
58575E
|
58575E
58575-53010 Pad, Front Floor, Rear No.1[04.2009 - 05.2013] GSE2# |
58575-53010 |
US $15.29 |
||
| replacement | |||||
|
58575E
|
58575E
58575-53011 Pad, Front Floor, Rear No.1[04.2009 - 05.2013] GSE2# |
58575-53011 |
US $15.29 |
||
|
58576C
|
58576C
58576-53010 Pad, Front Floor, Rear No.2[04.2009 - 05.2013] GSE2# |
58576-53010 |
US $15.29 |
||
| replacement | |||||
|
58576C
|
58576C
58576-53011 Pad, Front Floor, Rear No.2[04.2009 - 05.2013] GSE2# |
58576-53011 |
US $15.29 |
||
|
58621G
|
58621G
58621-53040 Pad, Front Floor Silencer, Rh[04.2009 - 05.2013] GSE2# |
58621-53040 |
US $26.94 |
||
| replacement | |||||
|
58621G
|
58621G
58621-53041 Pad, Front Floor Silencer, Rh[04.2009 - 05.2013] GSE2# |
58621-53041 |
US $26.94 |
||
|
58622C
|
58622C
58622-53040 Pad, Front Floor Silencer, Lh[04.2009 - 05.2013] GSE2# |
58622-53040 |
US $26.94 |
||
| replacement | |||||
|
58622C
|
58622C
58622-53041 Pad, Front Floor Silencer, Lh[04.2009 - 05.2013] GSE2# |
58622-53041 |
US $26.94 |
||
|
5819820210
|
5819820210
58198-20210 Clip, Footrest |
58198-20210 |
from US $3.65 |
||
|
6213553010
|
6213553010
62135-53010 Frame, Rear Side Window |
62135-53010 |
US $1.60 |
||
|
9016840086
|
9016840086
90168-40086 New Genuine Part |
90168-40086 |
US $1.02 |
||
