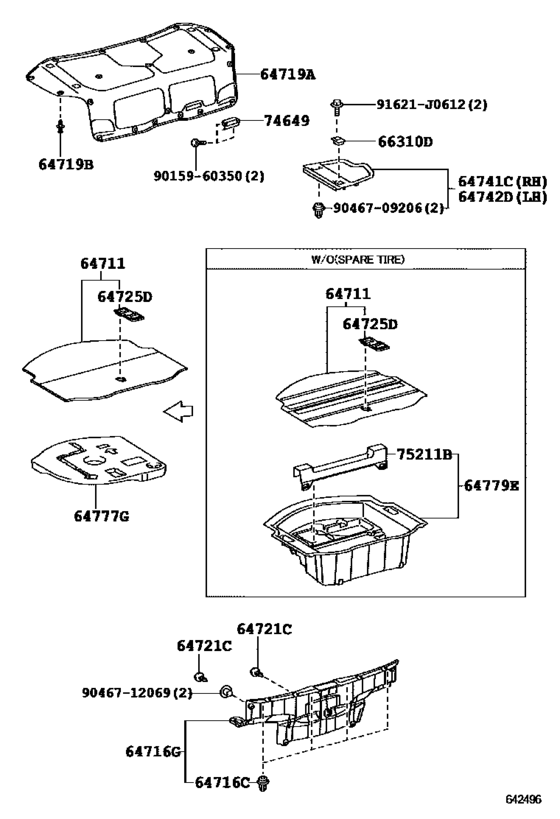

Package Tray Panel & Luggage Compartment Mat ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2012
- Sales region
- U.S.A.
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 04.2009
- To
- 08.2012
- Gear Shift Type
- 6F
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64711
|
64711
64711-53030-A0 Mat, Luggage Compartment FloorLUGGAGE COMPARTMENT FLOOR [04.2009 - 08.2011] GSE2# TIRE & DISC WHEEL-225/40R18+255/40R18 RUN FLAT ALL SEASON,IVORY,TRIM0#,1#,2#,3#,4# |
64711-53030-A0 |
US $224.22 |
||
|
64711
|
64711
64711-53030-C0
Mat, Luggage Compartment Floor
[08.2011 - 07.2015] GSE2# TIRE & DISC WHEEL-225/40R18+255/40R18 RUN FLAT ALL SEASON,BLACK,TRIM0#,1#,2#,3#,4# |
64711-53030-C0 |
— | ||
|
64711
|
64711
64711-53040-A0 Mat, Luggage Compartment FloorLUGGAGE COMPARTMENT FLOOR [04.2009 - 08.2011] GSE2# IVORY,TRIM0#,1#,2#,3#,4# |
64711-53040-A0 |
US $163.07 |
||
| replacement | |||||
|
64711
|
64711
64711-53041-A0 Mat, Luggage Compartment Floor[04.2009 - 08.2011] GSE2# IVORY,TRIM0#,1#,2#,3#,4# |
64711-53041-A0 |
US $163.07 |
||
|
64711
|
64711
64711-53040-C0 Mat, Luggage Compartment Floor[08.2011 - 07.2015] GSE2# BLACK,TRIM0#,1#,2#,3#,4# |
64711-53040-C0 |
US $135.41 |
||
| replacement | |||||
|
64711
|
64711
64711-53041-C0 Mat, Luggage Compartment Floor[08.2011 - 07.2015] GSE2# BLACK,TRIM0#,1#,2#,3#,4# |
64711-53041-C0 |
US $135.41 |
||
|
64716C
|
64716C
90467-10167 Clip(For Rear Floor Finish Plate)[04.2009 -] GSE2# |
90467-10167 |
from US $0.93 |
||
|
64716G
|
64716G
64716-53050-A0 Cover, Luggage Compartment Trim, RearLUGGAGE COMPARTMENT TRIM, REAR [04.2009 - 08.2011] GSE2# IVORY,TRIM0#,1#,2#,3#,4# |
64716-53050-A0 |
US $107.74 |
||
|
64716G
|
64716G
64716-53050-C0 Cover, Luggage Compartment Trim, Rear[08.2011 - 07.2015] GSE2# BLACK,TRIM0#,1#,2#,3#,4# |
64716-53050-C0 |
US $106.29 |
||
|
64719A
|
64719A
64719-53070-A0 Cover, Luggage Compartment DoorLUGGAGE COMPARTMENT DOOR [04.2009 - 08.2011] GSE2# IVORY,TRIM0#,1#,2#,3#,4# |
64719-53070-A0 |
US $216.94 |
||
| replacement | |||||
|
64719A
|
64719A
64719-53071-A0 Cover, Luggage Compartment Door[04.2009 - 08.2011] GSE2# IVORY,TRIM0#,1#,2#,3#,4# |
64719-53071-A0 |
US $216.94 |
||
|
64719A
|
64719A
64719-53070-C0 Cover, Luggage Compartment Door[08.2011 - 07.2015] GSE2# BLACK,TRIM0#,1#,2#,3#,4# |
64719-53070-C0 |
US $180.54 |
||
| replacement | |||||
|
64719A
|
64719A
64719-53071-C0 Cover, Luggage Compartment Door[08.2011 - 07.2015] GSE2# BLACK,TRIM0#,1#,2#,3#,4# |
64719-53071-C0 |
US $180.54 |
||
|
64719B
|
64719B
90467-06165-A0 Clip(For Luggage Compartment Door)[04.2009 - 08.2011] GSE2# IVORY,TRIM0#,1#,2#,3#,4# |
90467-06165-A0 |
US $2.87 |
||
|
64719B
|
64719B
90467-06165-C0 Clip, Instrument PanelINSTRUMENT PANEL [08.2011 - 07.2015] GSE2# BLACK,TRIM0#,1#,2#,3#,4# |
90467-06165-C0 |
from US $0.76 |
||
|
64721C
|
64721C
90467-08186-A1 Clip(For Luggage Compartment Trim Side Cover)[04.2009 - 08.2011] GSE2# IVORY,TRIM0#,1#,2#,3#,4# |
90467-08186-A1 |
US $2.15 |
||
|
64721C
|
64721C
90467-08186-C0 Clip(For Front Bumper), No.1[08.2011 - 07.2015] GSE2# BLACK,TRIM0#,1#,2#,3#,4# |
90467-08186-C0 |
from US $0.87 |
||
|
64725D
|
64725D
64725-20090-A0 Hook, Luggage Compartment Trim, No.1LUGGAGE COMPARTMENT TRIM, NO.1 [04.2009 - 08.2011] GSE2# TIRE & DISC WHEEL-225/40R18+255/40R18 RUN FLAT ALL SEASON,IVORY,TRIM0#,1#,2#,3#,4# |
64725-20090-A0 |
US $12.81 |
||
|
64725D
|
64725D
64725-20090-C0 Hook, Luggage Compartment Trim, No.1LUGGAGE COMPARTMENT TRIM, NO.1 [08.2011 - 07.2015] GSE2# TIRE & DISC WHEEL-225/40R18+255/40R18 RUN FLAT ALL SEASON,BLACK,TRIM0#,1#,2#,3#,4# |
64725-20090-C0 |
from US $9.61 |
||
|
64725D
|
64725D
64725-30080-A1
Hook, Luggage Compartment Trim, No.1
[04.2009 - 08.2011] GSE2# IVORY,TRIM0#,1#,2#,3#,4# |
64725-30080-A1 |
— | ||
|
64725D
|
64725D
64725-30080-C0 Hook, Luggage Compartment Trim, No.1[08.2011 - 07.2015] GSE2# BLACK,TRIM0#,1#,2#,3#,4# |
64725-30080-C0 |
from US $14.52 |
||
|
64741C
|
64741C
64741-53060-A0 Box, Deck Side Trim, RhDECK SIDE TRIM, RH [04.2009 - 08.2011] GSE2# IVORY,TRIM0#,1#,2#,3#,4# |
64741-53060-A0 |
US $103.38 |
||
| replacement | |||||
|
64741C
|
64741C
64741-53061-A0 Box, Deck Side Trim, Rh[04.2009 - 08.2011] GSE2# IVORY,TRIM0#,1#,2#,3#,4# |
64741-53061-A0 |
US $103.38 |
||
|
64741C
|
64741C
64741-53060-C0 Box, Deck Side Trim, Rh[08.2011 - 07.2015] GSE2# BLACK,TRIM0#,1#,2#,3#,4# |
64741-53060-C0 |
US $85.90 |
||
| replacement | |||||
|
64741C
|
64741C
64741-53061-C0 Box, Deck Side Trim, Rh[08.2011 - 07.2015] GSE2# BLACK,TRIM0#,1#,2#,3#,4# |
64741-53061-C0 |
US $85.90 |
||
|
64742D
|
64742D
64742-53050-A0 Box, Deck Side Trim, LhDECK SIDE TRIM, LH [04.2009 - 08.2011] GSE2# IVORY,TRIM0#,1#,2#,3#,4# |
64742-53050-A0 |
US $125.22 |
||
| replacement | |||||
|
64742D
|
64742D
64742-53051-A0 Box, Deck Side Trim, Lh[04.2009 - 08.2011] GSE2# IVORY,TRIM0#,1#,2#,3#,4# |
64742-53051-A0 |
US $125.22 |
||
|
64742D
|
64742D
64742-53050-C0 Box, Deck Side Trim, Lh[08.2011 - 07.2015] GSE2# BLACK,TRIM0#,1#,2#,3#,4# |
64742-53050-C0 |
US $103.38 |
||
| replacement | |||||
|
64742D
|
64742D
64742-53051-C0 Box, Deck Side Trim, Lh[08.2011 - 07.2015] GSE2# BLACK,TRIM0#,1#,2#,3#,4# |
64742-53051-C0 |
US $103.38 |
||
|
64777G
|
64777G
64777-53050 Cushion, Spare WheelSPARE WHEEL [04.2009 - 07.2010] GSE2# |
64777-53050 |
US $64.21 |
||
| replacement | |||||
|
64777G
|
64777G
64777-53051 Cushion, Spare Wheel[04.2009 - 07.2010] GSE2# |
64777-53051 |
US $53.44 |
||
|
64777G
|
64777G
64777-53051 Cushion, Spare Wheel[08.2010 -] GSE2# |
64777-53051 |
US $53.44 |
||
|
64779E
|
64779E
64779-53160-A0 Tray, Spare Wheel CoverSPARE WHEEL COVER [04.2009 - 08.2011] GSE2# TIRE & DISC WHEEL-225/40R18+255/40R18 RUN FLAT ALL SEASON,IVORY,TRIM0#,1#,2#,3#,4# |
64779-53160-A0 |
US $454.84 |
||
|
64779E
|
64779E
64779-53160-C0 Tray, Spare Wheel Cover[08.2011 - 07.2015] GSE2# TIRE & DISC WHEEL-225/40R18+255/40R18 RUN FLAT ALL SEASON,BLACK,TRIM0#,1#,2#,3#,4# |
64779-53160-C0 |
US $302.85 |
||
|
66310D
|
66310D
66310-30011-A2
Hook Assy, Rope
[04.2009 - 08.2011] GSE2# IVORY,TRIM0#,1#,2#,3#,4# |
66310-30011-A2 |
— | ||
|
66310D
|
66310D
66310-30011-C0 Hook Assy, Rope[08.2011 - 07.2015] GSE2# BLACK,TRIM0#,1#,2#,3#,4# |
66310-30011-C0 |
from US $19.30 |
||
|
74649
|
74649
74649-51010-A0 Grip, Luggage Compartment Door AssistLUGGAGE COMPARTMENT DOOR ASSIST [04.2009 - 08.2011] GSE2# IVORY,TRIM0#,1#,2#,3#,4# |
74649-51010-A0 |
US $15.72 |
||
|
74649
|
74649
74649-51010-C0 Grip, Back Door AssistLUGGAGE COMPARTMENT DOOR ASSIST [08.2011 - 07.2015] GSE2# BLACK,TRIM0#,1#,2#,3#,4# |
74649-51010-C0 |
from US $10.81 |
||
|
75211B
|
75211B
75211-53020-A0 Panel, Tool BoxTOOL BOX [04.2009 - 08.2011] GSE2# TIRE & DISC WHEEL-225/40R18+255/40R18 RUN FLAT ALL SEASON,IVORY,TRIM0#,1#,2#,3#,4# |
75211-53020-A0 |
US $94.64 |
||
|
75211B
|
75211B
75211-53020-C0 Panel, Tool Box[08.2011 - 07.2015] GSE2# TIRE & DISC WHEEL-225/40R18+255/40R18 RUN FLAT ALL SEASON,BLACK,TRIM0#,1#,2#,3#,4# |
75211-53020-C0 |
US $78.62 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.65 |
||
|
9015960350
|
9015960350
90159-60350 SCREW WWASHER |
90159-60350 |
US $1.08 |
||
|
9046709206
|
9046709206
90467-09206 Clip, Front Air Shutter Seal |
90467-09206 |
from US $0.89 |
||
|
9046712069
|
9046712069
90467-12069 Clip(For Rear Floor Finish Plate) |
90467-12069 |
from US $1.48 |
||
