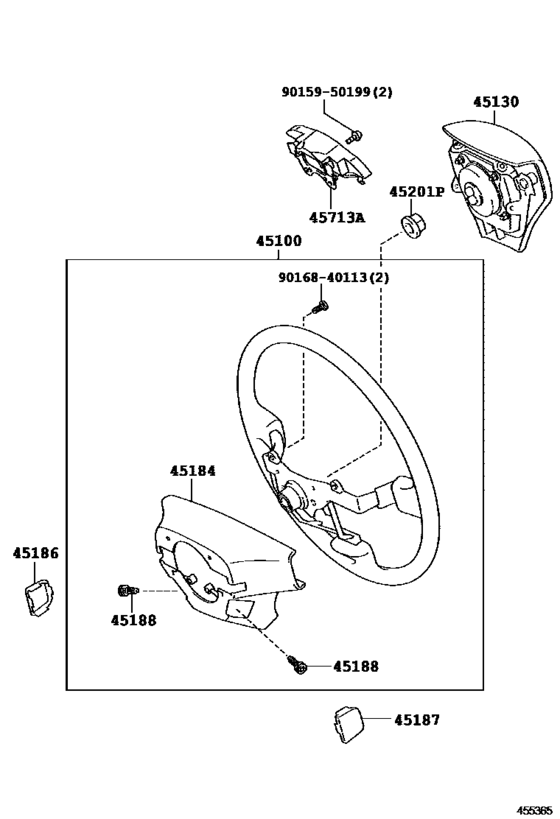

Steering Wheel ([04.2009 - ] 3-SPOKE (0904- )6F) Diagram Toyota LEXUS IS
- Year
- 2009 - 2012
- Sales region
- U.S.A.
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 04.2009
- To
- 08.2012
- Gear Shift Type
- 6F
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45100
|
45100
45100-53170-C0 Wheel Assy, Steering[04.2009 - 08.2010] GSE20..6F 3-SPOKE,LEATHER,BLACK,TRIM0#,2# |
45100-53170-C0 |
US $714.90 |
||
|
45100
|
45100
45100-53340-C0 Wheel Assy, Steering[08.2010 - 08.2012] GSE20..6F 3-SPOKE,LEATHER,BLACK & BLACK,TRIM0#,1#,2# |
45100-53340-C0 |
US $714.90 |
||
|
45100
|
45100
45100-53340-C1
Wheel Assy, Steering
[08.2010 - 08.2012] GSE20..6F 3-SPOKE,LEATHER,BLACK & RED,TRIM3# |
45100-53340-C1 |
— | ||
|
45100
|
45100
45100-53340-C2
Wheel Assy, Steering
[08.2010 - 08.2012] GSE20..6F 3-SPOKE,LEATHER,BLACK & SADDLE TAN,TRIM4# |
45100-53340-C2 |
— | ||
|
45130
|
45130
45130-53080-C0 Button Assy, Horn[04.2009 - 08.2012] GSE2# BLACK,TRIM0#,1#,2#,3#,4# |
45130-53080-C0 |
from US $723.63 |
||
|
45184
|
45184
45184-53010-C0 Cover, Steering Wheel Boss, Lower[04.2009 - 08.2010] GSE20..6F BLACK,TRIM0#,2# |
45184-53010-C0 |
US $24.02 |
||
|
45186
|
45186
45186-53010-C0 Cover, Steering Wheel, Lower No.2[04.2009 - 07.2015] GSE2# BLACK,TRIM0#,1#,2#,3#,4# |
45186-53010-C0 |
US $3.49 |
||
|
45187
|
45187
45187-53010-C0 Cover, Steering Wheel, Lower No.3[04.2009 - 07.2015] GSE2# BLACK,TRIM0#,1#,2#,3#,4# |
45187-53010-C0 |
US $3.49 |
||
|
45188
|
45188
45188-60010 Screw, Steering Wheel Pad Attaching[04.2009 -] GSE2# L=18 |
45188-60010 |
US $2.87 |
||
|
45201P
|
45201P
90179-12071 Nut, Steering Wheel Set[04.2009 -] GSE2# |
90179-12071 |
from US $1.48 |
||
|
45713A
|
45713A
45713-12080 Damper, Steering Shake[04.2009 -] GSE2# |
45713-12080 |
US $22.13 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.67 |
||
|
9016840113
|
9016840113
90168-40113 Screw, Steering Wheel Pad Attaching |
90168-40113 |
US $1.08 |
