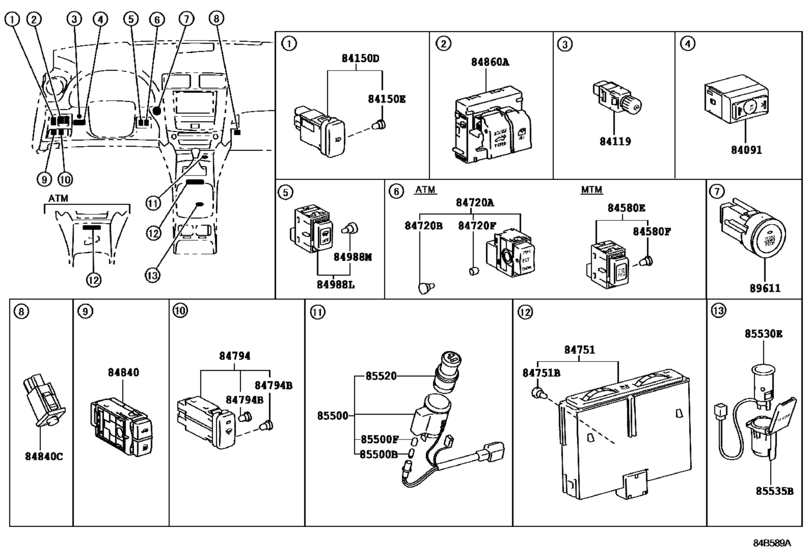

Switch & Relay & Computer ([08.2010 - 08.2011] INSTRUMENT PANEL 1/2 (1008-1108)) Diagram Toyota LEXUS IS
- Year
- 2009 - 2012
- Sales region
- U.S.A.
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- MTM
- Model
- IS250
- From
- 04.2009
- To
- 08.2012
- Gear Shift Type
- 6F
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84091
|
84091
84091-53010 Switch Set, Satellite[04.2009 -] GSE2# |
84091-53010 |
US $60.72 |
||
|
84119
|
84119
84119-48010 Rheostat, Light Control[04.2009 -] GSE2# |
84119-48010 |
US $56.06 |
||
|
84150D
|
84150D
84150-60030 Switch Assy, Headlamp Cleaner[04.2009 - 08.2010] GSE20..6F HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
84150-60030 |
US $60.28 |
||
|
84150E
|
84150E
90010-01039 Blub, Center Cluster Module Switch[04.2009 - 08.2010] GSE20..6F 14V0.91W,W(GREEN CAP,HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING) |
90010-01039 |
from US $3.08 |
||
|
84580E
|
84580E
84580-53070
Switch Assy, Throttle Position
[04.2009 - 08.2011] GSE20..6F |
84580-53070 |
— | ||
|
84580E
|
84580E
84580-53080
Switch Assy, Throttle Position
[08.2011 - 08.2012] GSE20..6F |
84580-53080 |
— | ||
|
84580F
|
84580F
90010-01039 Blub, Center Cluster Module Switch[04.2009 - 08.2011] GSE20..6F 14V0.91W,W(GREEN CAP |
90010-01039 |
from US $3.08 |
||
|
84580F
|
84580F
90010-01161 Bulb (For Pattern Select Switch)[08.2011 - 08.2012] GSE20..6F 14V 0.84W,W(CAP) |
90010-01161 |
US $4.80 |
||
|
84751
|
84751
84751-30180 Switch, Seat Heater[04.2009 - 07.2015] GSE2# POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN |
84751-30180 |
US $195.10 |
||
|
84751B
|
84751B
90010-01070 Bulb, Seat Heater Switch[04.2009 -] GSE2# 14V 1.8W,W(GREEN CAP),POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN |
90010-01070 |
from US $4.73 |
||
|
84794
|
84794
84794-33020
Switch, Fr Wiper Deicer
[08.2010 - 08.2011] GSE2# WINDSHIELD DEICER-WITH |
84794-33020 |
— | ||
| replacement | |||||
|
84794
|
84794
84794-35020 Switch, Fr Wiper Deicer[08.2010 - 08.2011] GSE2# WINDSHIELD DEICER-WITH |
84794-35020 |
US $32.26 |
||
|
84794
|
84794
84794-52010 Switch, Fr Wiper Deicer[08.2011 - 03.2015] GSE2# WINDSHIELD DEICER-WITH |
84794-52010 |
US $39.75 |
||
| replacement | |||||
|
84794
|
84794
84794-52011 Switch, Fr Wiper Deicer[08.2011 - 03.2015] GSE2# WINDSHIELD DEICER-WITH |
84794-52011 |
US $35.96 |
||
|
84794B
|
84794B
84999-10310 Bulb, Air Conditioner Control[08.2010 - 08.2011] GSE2# 14V 0.91W,WINDSHIELD DEICER-WITH |
84999-10310 |
from US $2.85 |
||
|
84794B
|
84794B
90010-01061 Bulb (For Headlamp Leveling Switch)[08.2010 - 08.2011] GSE2# 14V0.84W,W(GREEN CAP),WINDSHIELD DEICER-WITH |
90010-01061 |
from US $3.44 |
||
|
84840
|
84840
84840-33080 Switch Assy, Luggage Compartment Door Opening[04.2009 - 08.2010] GSE2# |
84840-33080 |
US $52.85 |
||
|
84840
|
84840
84840-53020 Switch Assy, Luggage Compartment Door Opening[08.2010 -] GSE2# |
84840-53020 |
US $52.71 |
||
|
84840C
|
84840C
84840-24020 Switch Assy, Luggage Door Opening, Cancel[04.2009 -] GSE2# |
84840-24020 |
US $30.23 |
||
|
84860A
|
84860A
84860-53010 Switch Assy, Sliding RoofSLIDING ROOF [04.2009 - 08.2010] GSE2# |
84860-53010 |
US $59.62 |
||
|
84860A
|
84860A
84860-53030
Switch Assy, Sliding Roof
[08.2010 -] GSE2# |
84860-53030 |
— | ||
|
84988L
|
84988L
84988-30140 Switch, Vsc Off[04.2009 - 08.2011] GSE2# |
84988-30140 |
US $47.76 |
||
|
84988L
|
84988L
84988-53010 Switch, Vsc Off[08.2011 -] GSE2# |
84988-53010 |
US $39.60 |
||
|
84988M
|
84988M
90010-01039 Blub, Center Cluster Module Switch[08.2011 -] GSE2# 14V0.91W,W(GREEN CAP |
90010-01039 |
from US $3.08 |
||
|
84988M
|
84988M
90010-01137
Bulb (For Pattern Select Switch)
[04.2009 - 08.2011] GSE2# 14V 0.63W |
90010-01137 |
— | ||
| replacement | |||||
|
84988M
|
84988M
90010-01139 Bulb (For Pattern Select Switch)[04.2009 - 08.2011] GSE2# 14V 0.63W |
90010-01139 |
US $4.56 |
||
|
85500
|
85500
85500-30520 Lighter Assy, Cigarette[04.2009 - 08.2010] GSE2# |
85500-30520 |
from US $45.90 |
||
|
85500B
|
85500B
90010-01111 Bulb, Cigarette Lighter[04.2009 - 08.2010] GSE2# 13.5V 2W |
90010-01111 |
US $4.37 |
||
|
85500F
|
85500F
84998-10510 Cap, Cigarette Lighter Bulb[04.2009 - 08.2010] GSE2# |
84998-10510 |
US $4.12 |
||
|
85520
|
85520
85520-89101 Knob And Element Assy, Cigarette Lighter[04.2009 - 08.2010] GSE2# |
85520-89101 |
from US $16.74 |
||
|
85530E
|
85530E
85530-53050 Socket Assy, Power Outlet, No.3[04.2009 - 07.2015] GSE2# |
85530-53050 |
US $26.06 |
||
|
85535B
|
85535B
85535-50020 Cover, Power Outlet Socket, No.1[04.2009 - 07.2015] GSE2# |
85535-50020 |
from US $5.76 |
||
|
89611
|
89611
89611-30021 Switch, Push Start[04.2009 - 01.2010] GSE2# |
89611-30021 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-30025 Switch, Push Start[04.2009 - 01.2010] GSE2# |
89611-30025 |
US $153.70 |
||
|
89611
|
89611
89611-30022 Switch, Push StartPUSH START [02.2010 - 04.2011] GSE2# |
89611-30022 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-30025 Switch, Push Start[02.2010 - 04.2011] GSE2# |
89611-30025 |
US $153.70 |
||
|
89611
|
89611
89611-30023 Switch, Push Start[05.2011 - 04.2012] GSE2# |
89611-30023 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-30025 Switch, Push Start[05.2011 - 04.2012] GSE2# |
89611-30025 |
US $153.70 |
||
|
89611
|
89611
89611-30024
Switch, Push Start
[05.2012 -] GSE2# |
89611-30024 |
— | ||
| replacement | |||||
|
89611
|
89611
89611-30025 Switch, Push Start[05.2012 -] GSE2# |
89611-30025 |
US $153.70 |
||
